SRWSSEA - Wire Saddle, Side Entry

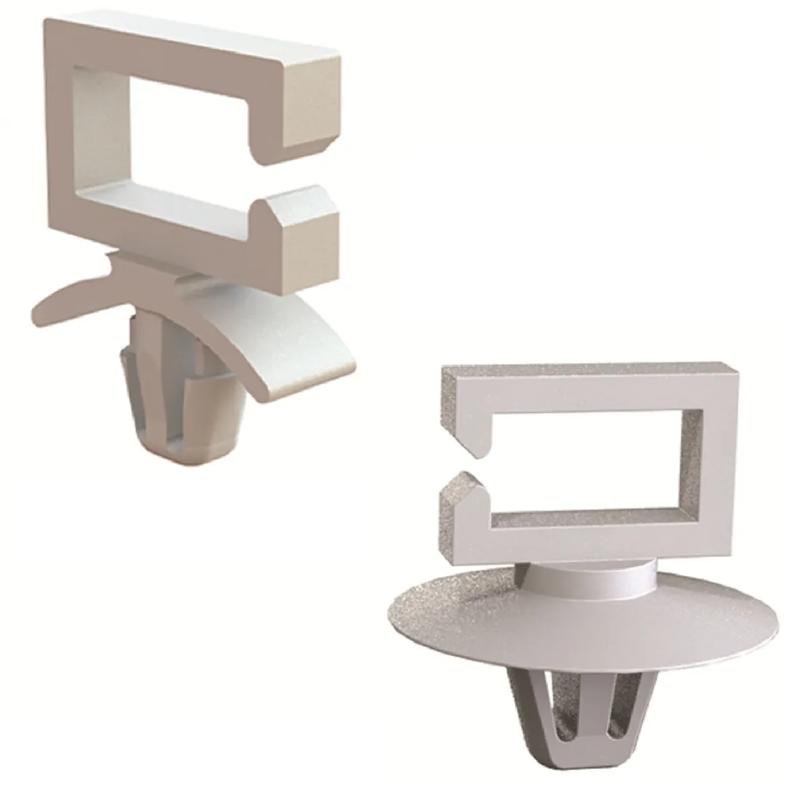

Wire saddle with side entry design allowing quick lateral insertion of cables without threading.
Showing 1-8 of 8
Per page:1-8 of 8

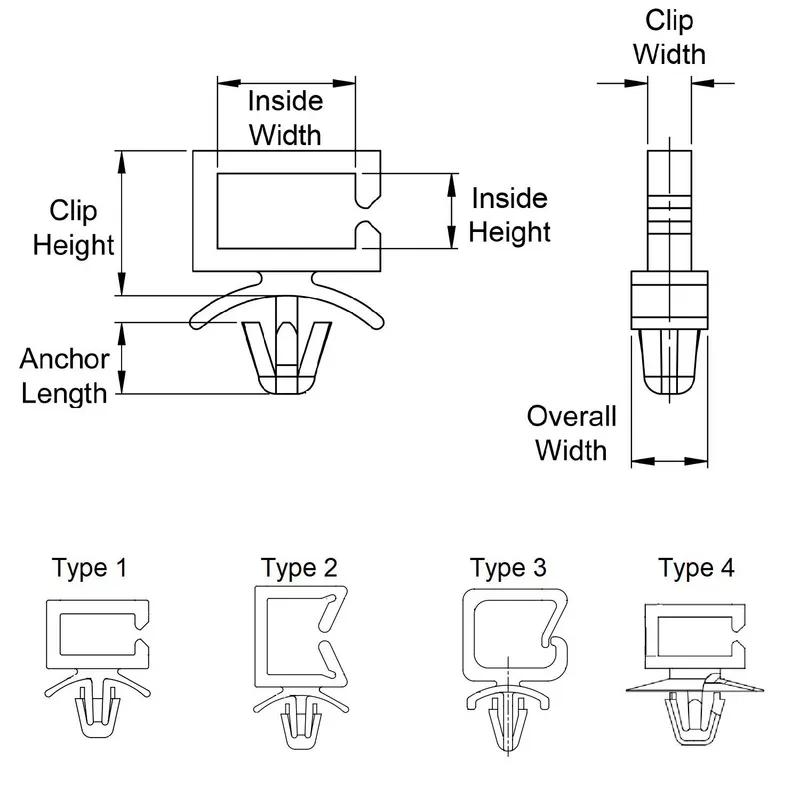

Item Code | Colour | Inside Height | Material | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Rail Type | Clip Height | Type | Inside Width | Material Flammability Standard | Minimum Panel Thickness | Clip Width | Spacer Length | Overall Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WS-SE-A-2-19 | Natural | 11.4mm | Nylon 6/6 | 5.3mm | 2.0mm | 4.8mm | Lối vào bên | 16.4mm | 2 | 10.2mm | UL94 V-0 | 0.8mm | - | - | - | |
WS-SE-A-3-01 | Natural | 12.0mm | Nylon 6/6 | 7.4mm | 1.8mm | 4.8mm | Lối vào bên | 18.1mm | 3 | 12.0mm | UL94 V-2 | 0.6mm | 18.4mm | - | - | |
WS-SE-A-2-01 | Natural | 11.4mm | Nylon 6/6 | 5.3mm | 2.0mm | 4.8mm | Lối vào bên | 16.4mm | 2 | 10.2mm | UL94 V-2 | 0.8mm | - | - | - | |
WS-SE-A-3-19 | Natural | 12.0mm | Nylon 6/6 | 7.4mm | 1.8mm | 4.8mm | Lối vào bên | 18.1mm | 3 | 12.0mm | UL94 V-0 | 0.6mm | 18.4mm | - | - | |
WS-SE-A-1-19 | Natural | 5.6mm | Nylon 6/6 | 5.3mm | 2.0mm | 4.75mm | Lối vào bên | 10.7mm | 1 | 10.2mm | UL94 V-0 | 0.8mm | - | - | - | |
WS-SE-A-4-19 | Natural | 5.7mm | Nylon 6/6 | 9.0mm | 1.8mm | 6.5mm | Lối vào bên | 9.3mm | 4 | 10.2mm | UL94 V-0 | 0.6mm | 3.0mm | 2.1mm | 19.0mm | |
WS-SE-A-4-01 | Natural | 5.7mm | Nylon 6/6 | 9.0mm | 2.0mm | 6.5mm | Lối vào bên | 9.3mm | 4 | 10.2mm | UL94 V-2 | 0.8mm | 3.0mm | 2.1mm | 19.0mm | |
WS-SE-A-1-01 | Natural | 5.6mm | Nylon 6/6 | 5.3mm | 2.0mm | 4.75mm | Lối vào bên | 10.7mm | 1 | 10.2mm | UL94 V-2 | 0.8mm | - | - | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
WS-SE-A-2-19
Colour
Natural
Inside Height
11.4mm
Material
Nylon 6/6
Anchor Length
5.3mm
WS-SE-A-3-01
Colour
Natural
Inside Height
12.0mm
Material
Nylon 6/6
Anchor Length
7.4mm
WS-SE-A-2-01
Colour
Natural
Inside Height
11.4mm
Material
Nylon 6/6
Anchor Length
5.3mm
WS-SE-A-3-19
Colour
Natural
Inside Height
12.0mm
Material
Nylon 6/6
Anchor Length
7.4mm
