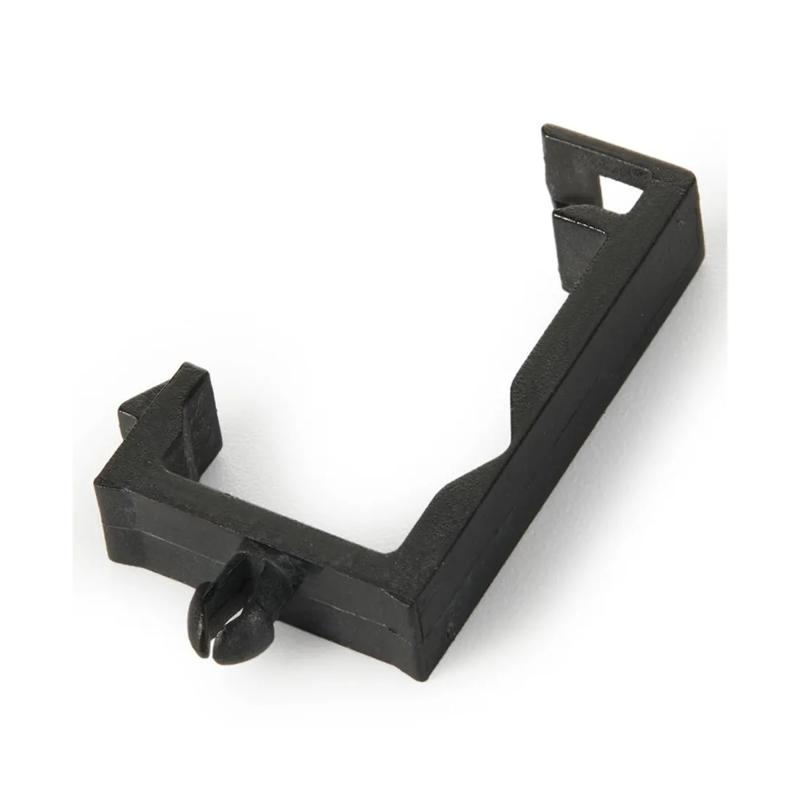

SRWSLTT - Wire Saddle Locking Top Teardrop
Wire saddle with teardrop-shaped locking top, securing cables tightly during routing.
Showing 1-1 of 1
Per page:1-1 of 1

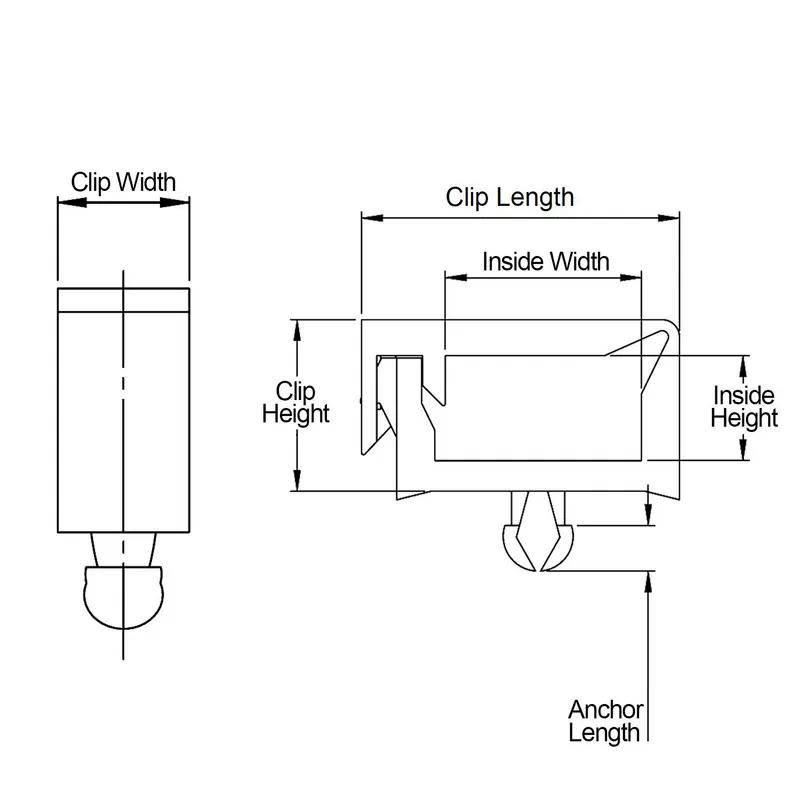

Item Code | Colour | Spacer Length | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Clip Length | Inside Height | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WSLT-T-01A-19 | Natural | 1.8mm | 2.4mm | 1.65mm | 3.0mm | 1.65mm | 9.0mm | 110°C | 16.7mm | 10.3mm | UL94 V-0 | 16.7mm | 5.5mm | -40°C | Nylon 6/6 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
WSLT-T-01A-19
Colour
Natural
Spacer Length
1.8mm
Anchor Length
2.4mm
Maximum Panel Thickness
1.65mm
