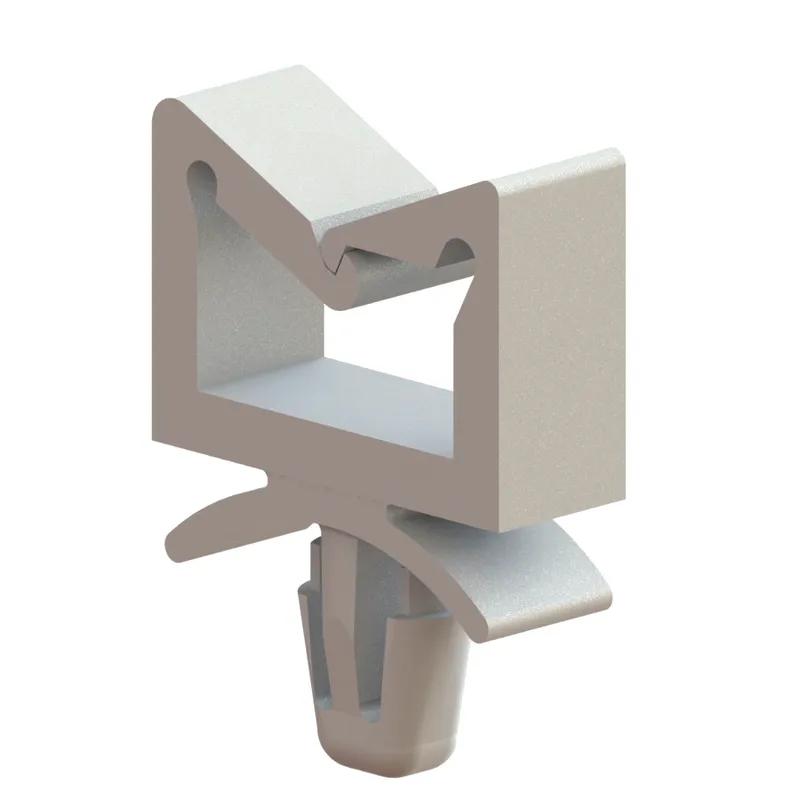

SRWSLA - Wire Saddle, Arrowhead Mount
Wire saddle with arrowhead mount for quick push-in installation into panel holes, organizing cable bundles.
Showing 1-1 of 1
Per page:1-1 of 1

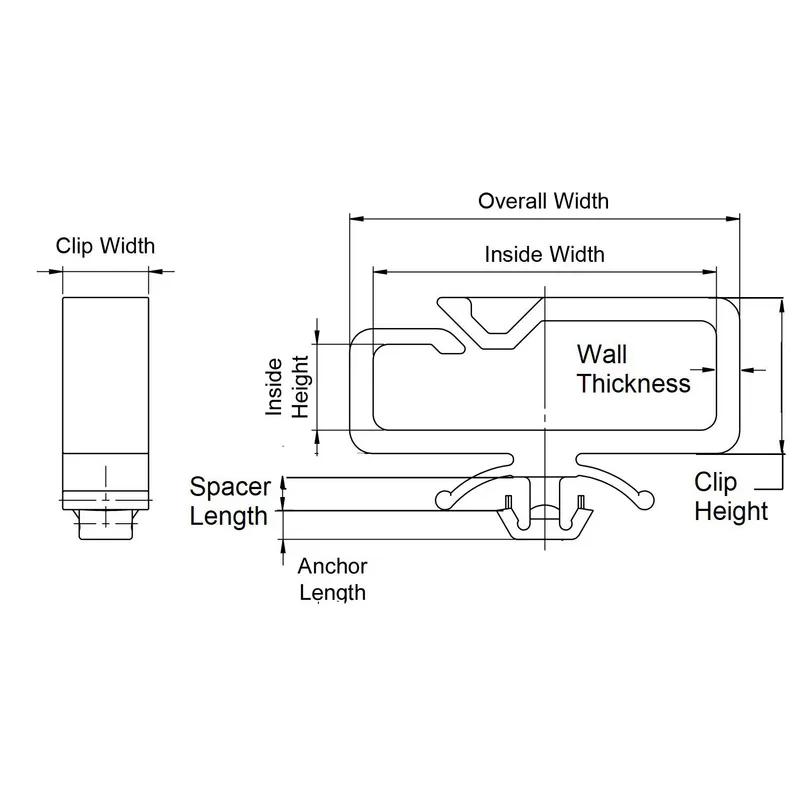

Item Code | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Rail Type | Minimum Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Saddle Type | Wall Thickness | Inside Height | Minimum Operating Temperature | Material | Overall Width | Spacer Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WS-L-A-1 | Natural | 5.5mm | 1.6mm | 4.8mm | Hình chữ nhật, Khóa | 0.8mm | 11.3mm | 130°C | 5.5mm | 22.0mm | UL94 V-2 | Rectangular, Locking | 1.0mm | 5.5mm | -40°C | 25% Glass Filled Nylon 6/6 | 25.0mm | 2.1mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
WS-L-A-1
Colour
Natural
Anchor Length
5.5mm
Maximum Panel Thickness
1.6mm
Mounting Hole Diameter
4.8mm
