SRWITUVB - Weather Resistant Nylon 6/6 Cable Ties
UV and weather-resistant nylon 6/6 ties designed for outdoor cable bundling and long-term durability.

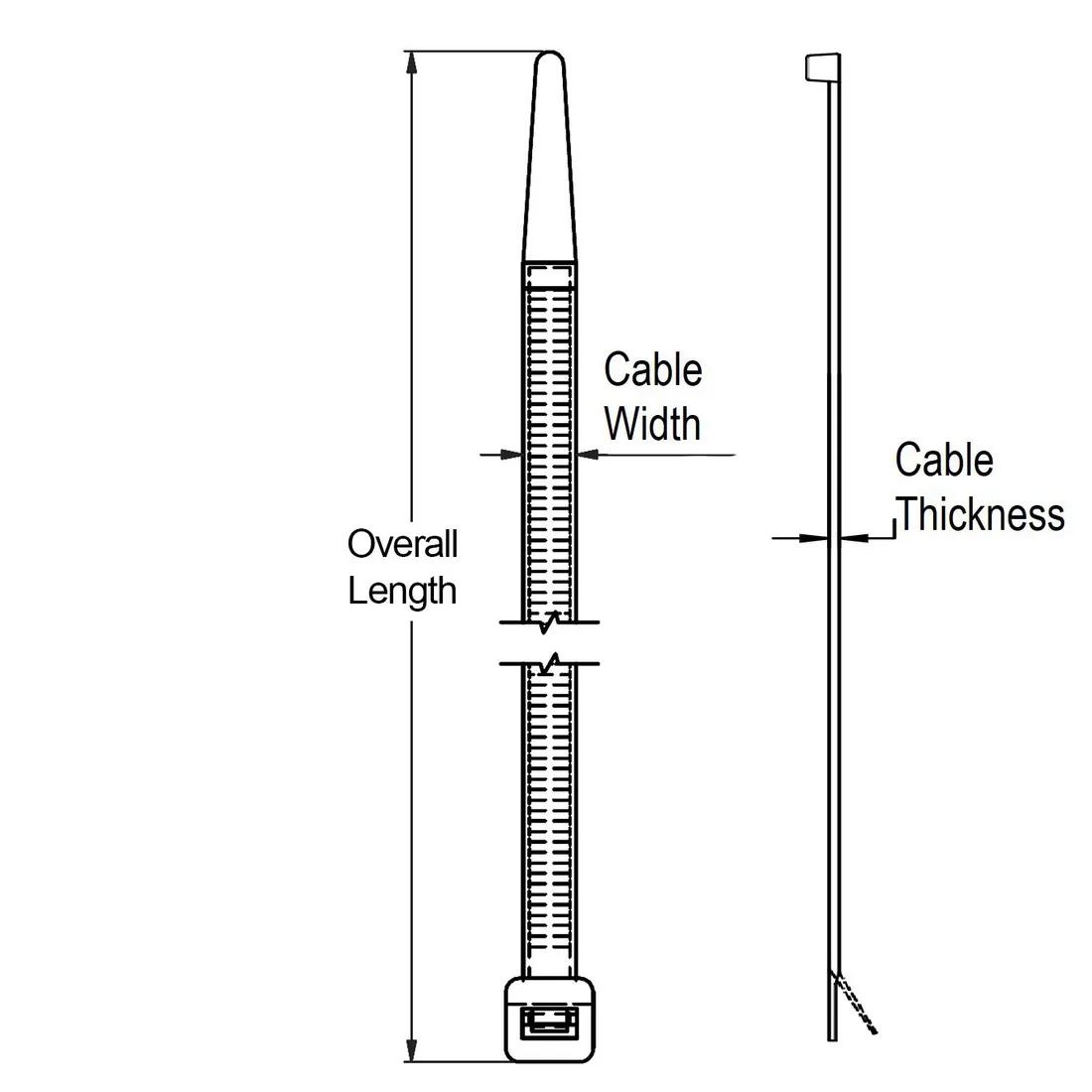

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Length | Cable Width | Strap Width | Cable Diameter | Cable Width | Maximum Operating Temperature | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Cable Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-18SF-UVB-M | UL94 V-2 | 22.0mm | Black | 82.6mm | 1.0mm | 2.5mm | 22.0mm | 2.5mm | 85°C | -40°C | Nylon 6/6 | 80.0lbs | - | |
WIT-18L-UVB-M | UL94 V-2 | 37.1mm | Natural | 146.1mm | 1.0mm | 2.5mm | 37.1mm | 2.5mm | 85°C | -40°C | Nylon 6/6 | 80.0lbs | - | |
WIT-50R-UVB-M | UL94 V-2 | 50.8mm | Black | 203.2mm | 1.3mm | 4.8mm | 50.8mm | 4.8mm | 85°C | -40°C | Nylon 6/6 | 222.0lbs | - | |
WIT-18R-UVB-M | UL94 V-2 | 25.4mm | Black | 114.8mm | 1.0mm | 2.5mm | 19.1mm | 2.5mm | - | - | Nylon | 80.0lbs | 114.8mm |
WIT-18SF-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
22.0mm
Colour
Black
Overall Length
82.6mm
WIT-18L-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
37.1mm
Colour
Natural
Overall Length
146.1mm
WIT-50R-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
50.8mm
Colour
Black
Overall Length
203.2mm
WIT-18R-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
25.4mm
Colour
Black
Overall Length
114.8mm
