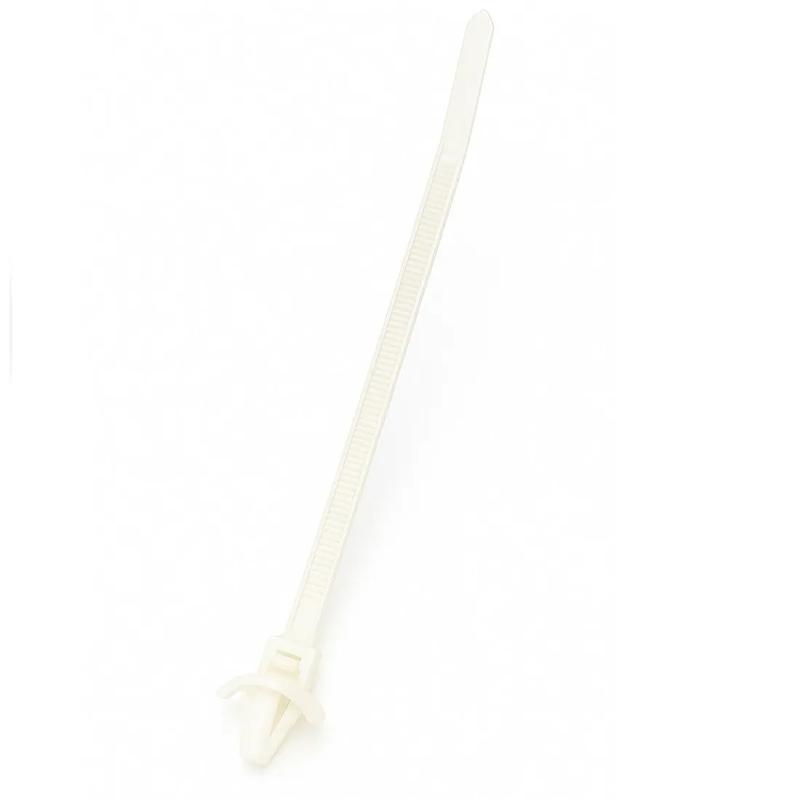

SRWITSA - Push Mount Ties
Cable ties with integrated push mount stems for snap-in attachment to pre-drilled panel holes.
Showing 1-2 of 2
Per page:1-2 of 2

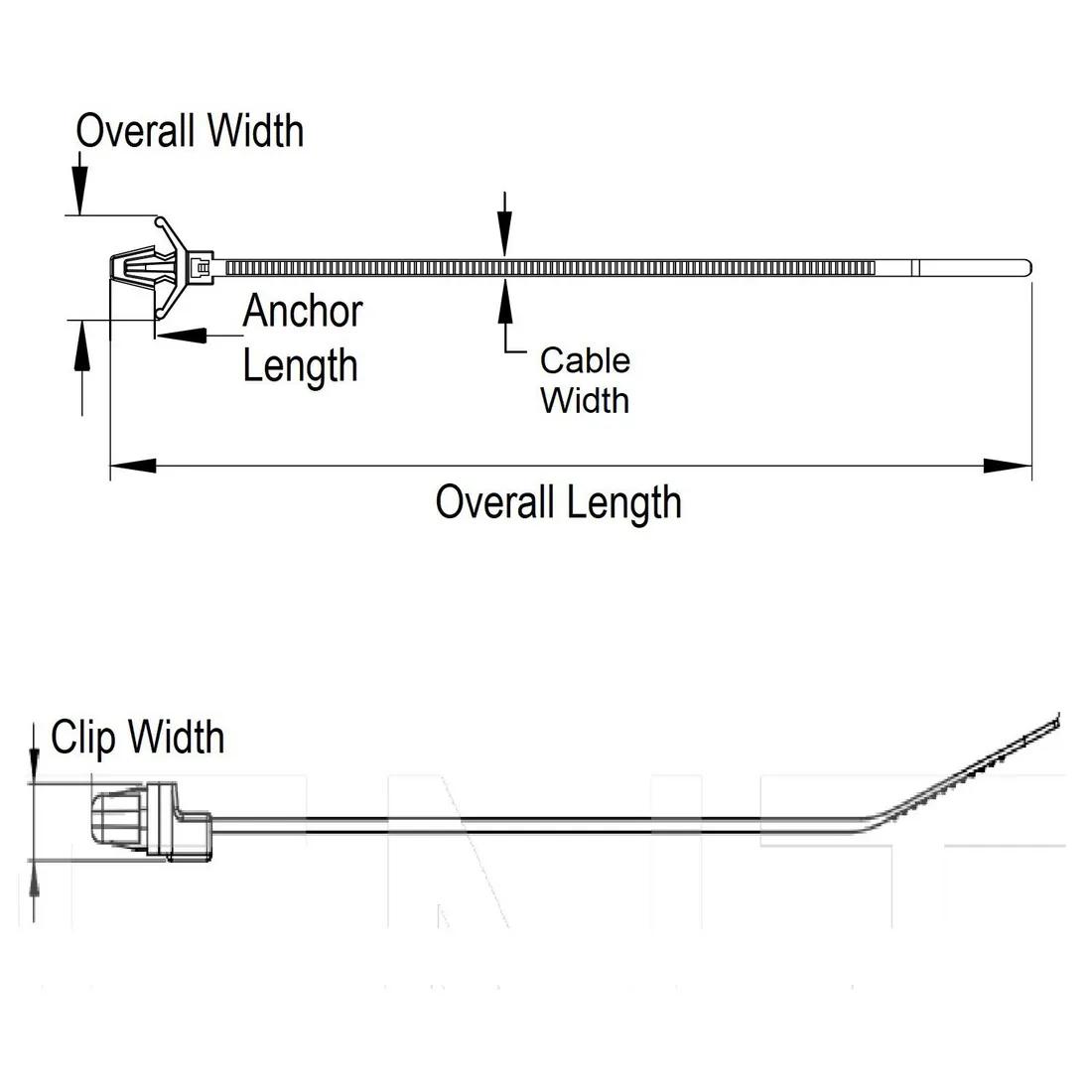

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Length | Anchor Length | Strap Width | Minimum Panel Thickness | Cable Diameter | Panel Thickness | Cable Width | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-50SA-1-01 | UL94 V-2 | 23.0mm | Natural | 17.2mm | 2.0mm | 6.8mm | 85°C | -40°C | Nylon 6/6 | 50.0lb | 133.0mm | 7.6mm | 4.8mm | 0.8mm | - | - | - | - | |
WIT-50SA-01 | UL94 V-2 | 23.0mm | Natural | 13.5mm | 1.6mm | 6.4mm | 85°C | -40°C | Nylon 6/6 | 22.0kg | 133.0mm | 6.0mm | 4.8mm | - | 23.0mm | 1.6mm | 4.8mm | 5.9mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
WIT-50SA-1-01
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
23.0mm
Colour
Natural
Overall Width
17.2mm
WIT-50SA-01
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
23.0mm
Colour
Natural
Overall Width
13.5mm
