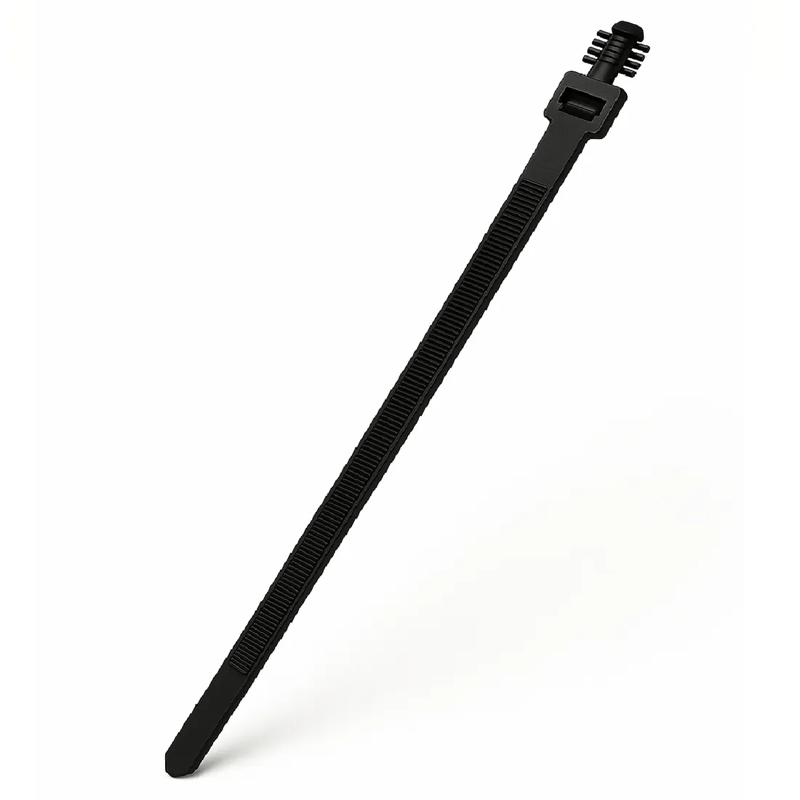

SRWITBH - Blind Hole Mount Cable Ties
Cable ties designed for blind hole mounting, offering secure bundling without requiring access to rear panel.
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Width | Mounting Hole Diameter | Cable Diameter | Panel Thickness | Cable Width | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Length | Anchor Length | Maximum Panel Thickness | Cable Length | Strap Width | Minimum Panel Thickness | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WITBH-50R | UL94 V-2 | 44.5mm | Natural | 8.1mm | 6.35mm | 44.5mm | 6.35mm | 4.8mm | 85°C | 8.1mm | -40°C | Nylon 6/6 | 22.0kg | 199.1mm | 9.1mm | 6.35mm | 190.0mm | 4.8mm | - | - | |
WITBH-50R-HS | UL94 V-2 | 44.5mm | Black | 8.1mm | 6.35mm | 44.5mm | 6.35mm | 4.8mm | 125°C | 8.1mm | -40°C | Nylon 6/6 | 22.0mm | 199.1mm | 9.1mm | - | 190.0mm | 4.8mm | 6.35mm | 6.5mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
WITBH-50R
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
44.5mm
Colour
Natural
Overall Width
8.1mm
WITBH-50R-HS
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
44.5mm
Colour
Black
Overall Width
8.1mm
