SRWITAUVB - Weather Resistant Nylon 6/6 Cable Ties
UV and weather-resistant nylon 6/6 ties designed for outdoor cable bundling and long-term durability.

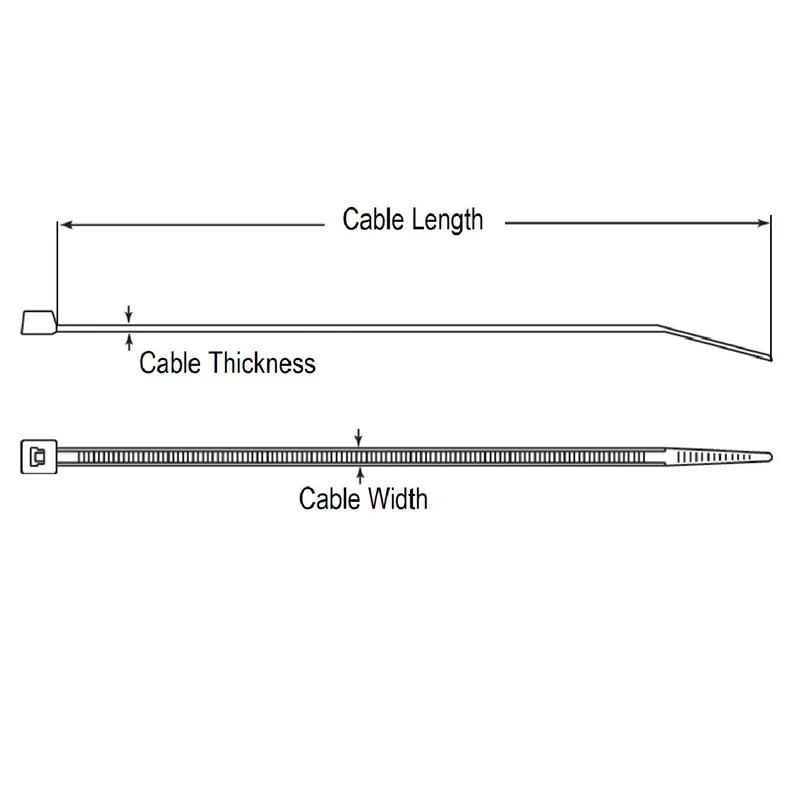

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Length | Cable Length | Cable Width | Strap Width | Cable Diameter | Cable Width | Maximum Operating Temperature | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WITA-175L-UVB-Q | UL94 V-2 | 277.0mm | Black | 914.4mm | 914.4mm | 1.8mm | 9.0mm | 9.0mm | 9.0mm | 85°C | -40°C | Nylon 6/6 | 778.0lbs | |
WITA-18X-UVB-M | UL94 V-2 | 116.0mm | Black | 400.0mm | 400.0mm | 1.2mm | 2.5mm | 116.0mm | 2.5mm | 85°C | -40°C | Nylon 6/6 | 80.0lbs | |
WITA-175R-UVB-L | UL94 V-2 | 178.0mm | Black | 610.0mm | 610.0mm | 1.8mm | 9.0mm | 9.0mm | 9.0mm | 85°C | -40°C | Nylon 6/6 | 778.0lbs | |
WITA-50S-UVB-M | UL94 V-2 | 38.7mm | Black | 160.0mm | 160.0mm | 1.3mm | 4.6mm | 38.7mm | 4.6mm | 85°C | -40°C | Nylon 6/6 | 222.0lbs | |
WITA-40XL-UVB-M | UL94 V-2 | 53.3mm | Black | 205.0mm | 205.0mm | 1.3mm | 3.6mm | 53.3mm | 3.6mm | 85°C | -40°C | Nylon 6/6 | 180.0lbs | |
WITA-50L-UVB-M | UL94 V-2 | 114.8mm | Black | 391.2mm | 400.0mm | 1.3mm | 4.8mm | 114.3mm | 4.6mm | 85°C | -40°C | Nylon 6/6 | 222.0lbs | |
WITA-40VL-UVB-M | UL94 V-2 | 83.0mm | Black | 300.0mm | 300.0mm | 1.4mm | 3.6mm | 83.0mm | 3.6mm | 85°C | -40°C | Nylon 6/6 | 180.0lbs | |
WITA-120R-UVB-D | UL94 V-2 | 113.0mm | Black | 400.0mm | 400.0mm | 1.6mm | 7.8mm | 113.0mm | 7.8mm | 85°C | -40°C | Nylon 6/6 | 534.0lbs | |
WITA-40R-UVB-M | UL94 V-2 | 37.6mm | Black | 150.0mm | 150.0mm | 1.3mm | 3.6mm | 37.6mm | 3.6mm | 85°C | -40°C | Nylon 6/6 | 180.0lbs |
WITA-175L-UVB-Q
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
277.0mm
Colour
Black
Overall Length
914.4mm
WITA-18X-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
116.0mm
Colour
Black
Overall Length
400.0mm
WITA-175R-UVB-L
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
178.0mm
Colour
Black
Overall Length
610.0mm
WITA-50S-UVB-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
38.7mm
Colour
Black
Overall Length
160.0mm
