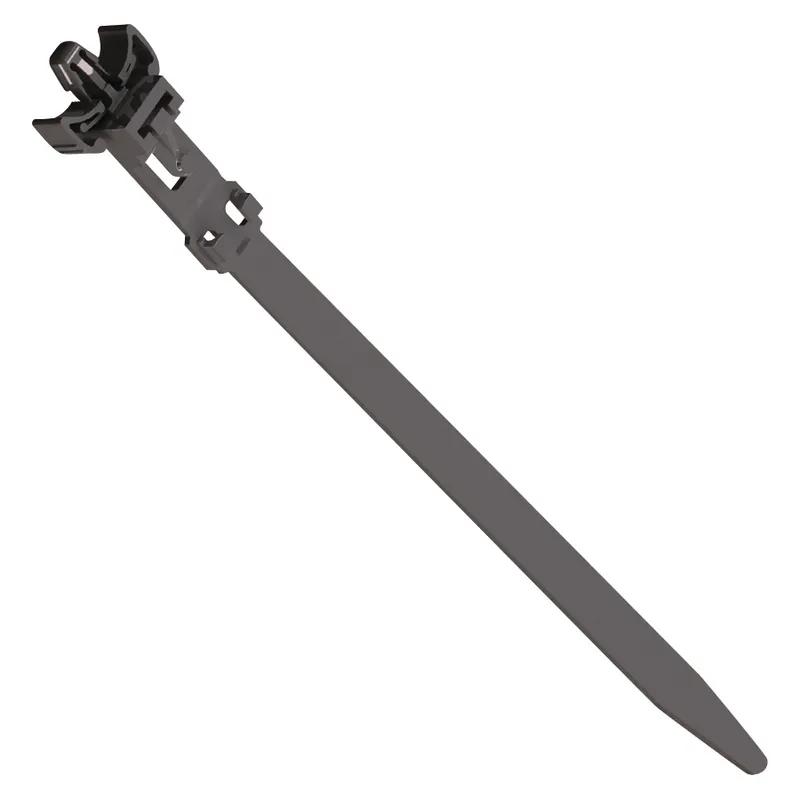

SRWIT40LAR - Releasable Push Mount Ties
Cable ties with integrated push mount stems for snap-in attachment to pre-drilled panel holes.
Showing 1-1 of 1
Per page:1-1 of 1

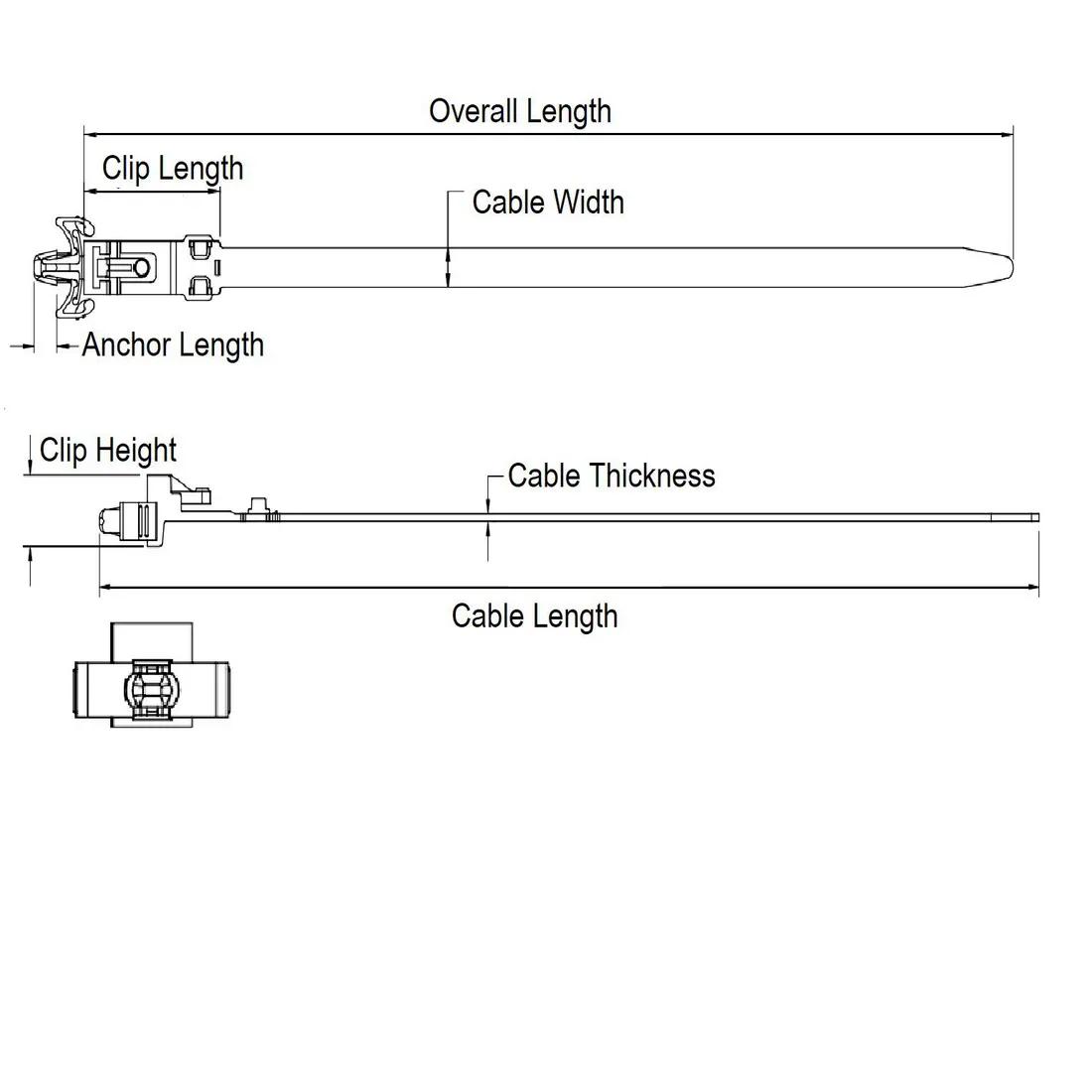

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Clip Length | Spacer Length | Mounting Hole Diameter | Cable Width | Cable Diameter | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Length | Anchor Length | Maximum Panel Thickness | Cable Length | Strap Width | Minimum Panel Thickness | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-40LAR | UL94 V-2 | 1.970in | Black | 27.0mm | 1.062in | 0.187in | 1.2mm | 50.0mm | 85°C | 0.669in | -40°C | Nylon 6/6 | 40.0lb | 195.0mm | 4.5mm | 0.091in | 185.0mm | 0.263in | 0.019in | 6.7mm | 0.448in |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
WIT-40LAR
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
1.970in
Colour
Black
Clip Length
27.0mm
