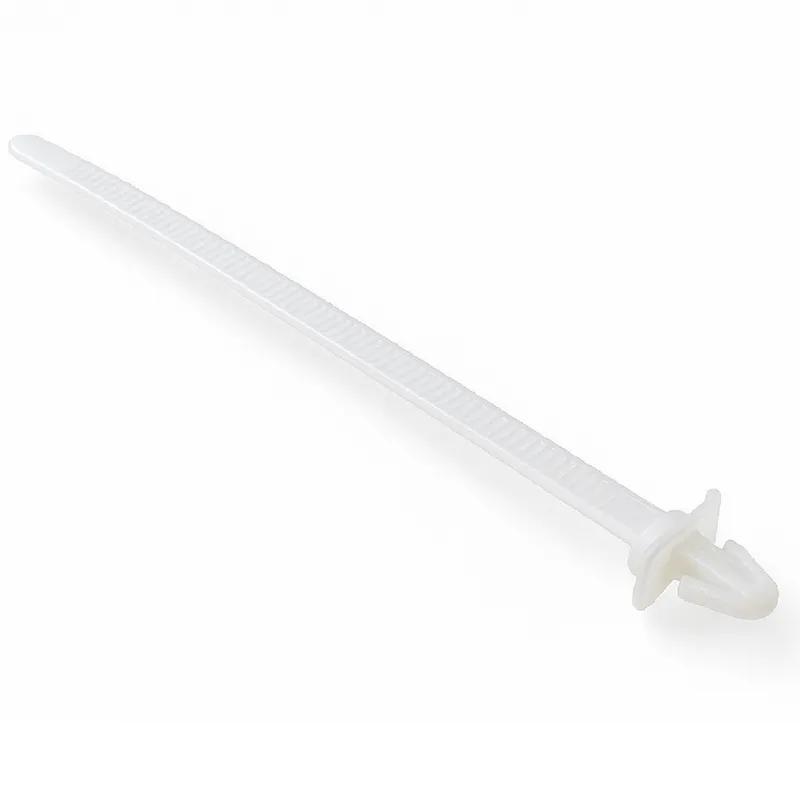

SRWIT30RCA - Cupped Cable Ties
Cable ties with a cupped base to support and slightly elevate bundles, protecting cables from surface contact.

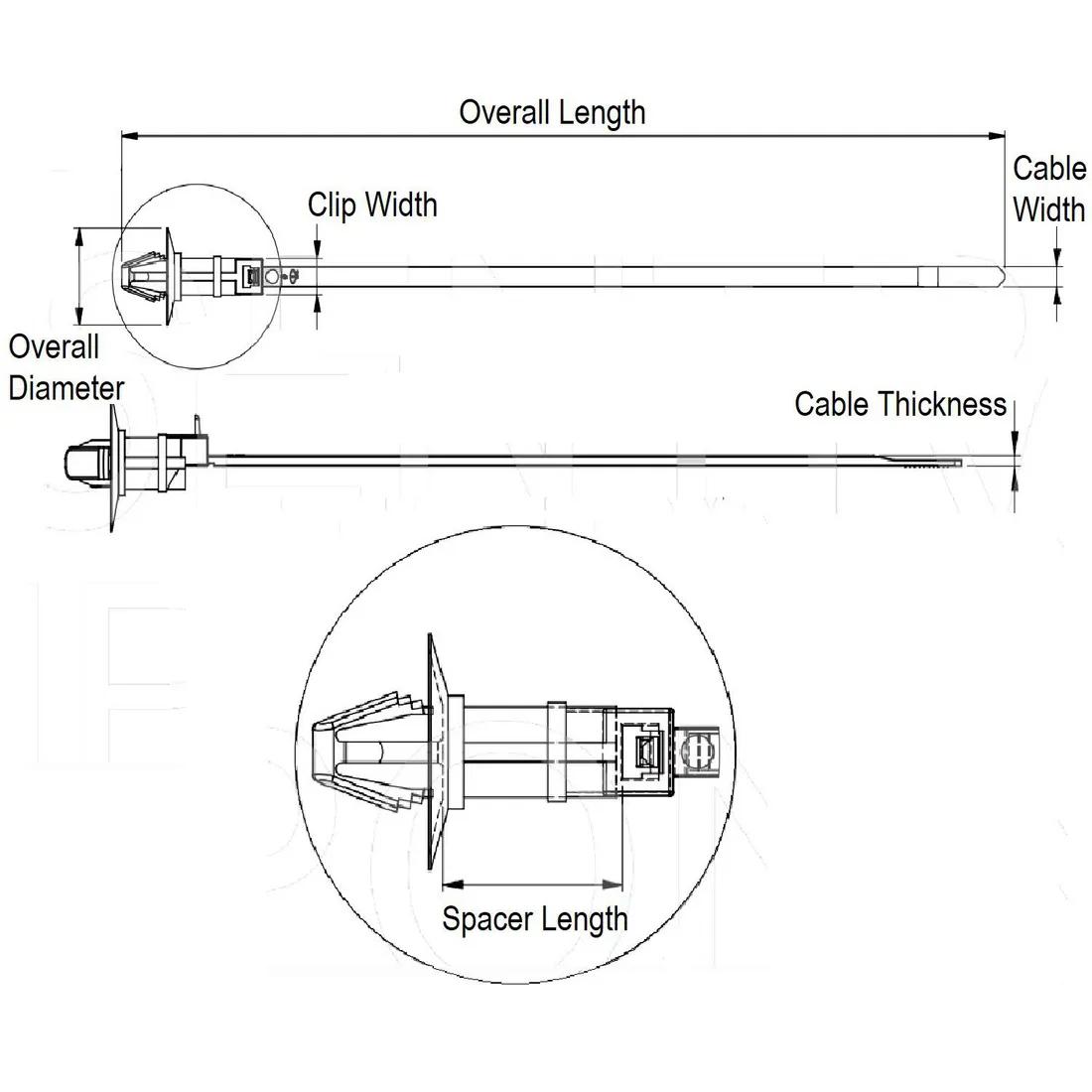

Item Code | Maximum Cable Bundle Diameter | Colour | Maximum Hole Diameter | Maximum Panel Thickness | Cable Width | Cable Diameter | Cable Width | Maximum Operating Temperature | Clip Width | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Diameter | Overall Width | Spacer Length | Distance Between Fixing Holes | Overall Length | Anchor Length | Strap Width | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-30RCA-16-M | 31.8mm | Natural | 6.5mm | 2.5mm | 1.27mm | 31.8mm | 3.56mm | 85°C | 6.4mm | UL94 V-2 | 6.0mm | -40°C | Nylon 6/6 | 13.0kg | 17.0mm | 17.0mm | 25.4mm | 6.5mm | 180.2mm | 8.6mm | 3.56mm | 0.6mm | |
WIT-30RCA-4-M | 31.8mm | Natural | 6.0mm | 2.5mm | 1.27mm | 31.8mm | 3.56mm | 85°C | 6.4mm | UL94 V-2 | - | -40°C | Nylon 6/6 | 13.0kg | 17.0mm | 17.0mm | 7.1mm | 6.5mm | 160.7mm | 8.6mm | 3.56mm | 0.6mm | |
WIT-30RCA-8-M | 31.8mm | Natural | 6.0mm | 2.5mm | 1.27mm | 31.8mm | 3.56mm | 85°C | 6.4mm | UL94 V-2 | - | -40°C | Nylon 6/6 | 13.0kg | 17.0mm | 17.0mm | 13.5mm | 6.5mm | 168.3mm | 8.6mm | 3.56mm | 0.6mm | |
WIT-30RCA-12-M | 31.8mm | Natural | 6.0mm | 2.5mm | 1.27mm | 31.8mm | 3.56mm | 85°C | 6.4mm | UL94 V-2 | - | -40°C | Nylon 6/6 | 13.0kg | 17.0mm | 17.0mm | 19.8mm | 6.5mm | 174.6mm | 8.6mm | 3.56mm | 0.6mm |
WIT-30RCA-16-M
Maximum Cable Bundle Diameter
31.8mm
Colour
Natural
Maximum Hole Diameter
6.5mm
Maximum Panel Thickness
2.5mm
WIT-30RCA-4-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8mm
Colour
Natural
Maximum Hole Diameter
6.0mm
WIT-30RCA-8-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8mm
Colour
Natural
Maximum Hole Diameter
6.0mm
WIT-30RCA-12-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8mm
Colour
Natural
Maximum Hole Diameter
6.0mm
