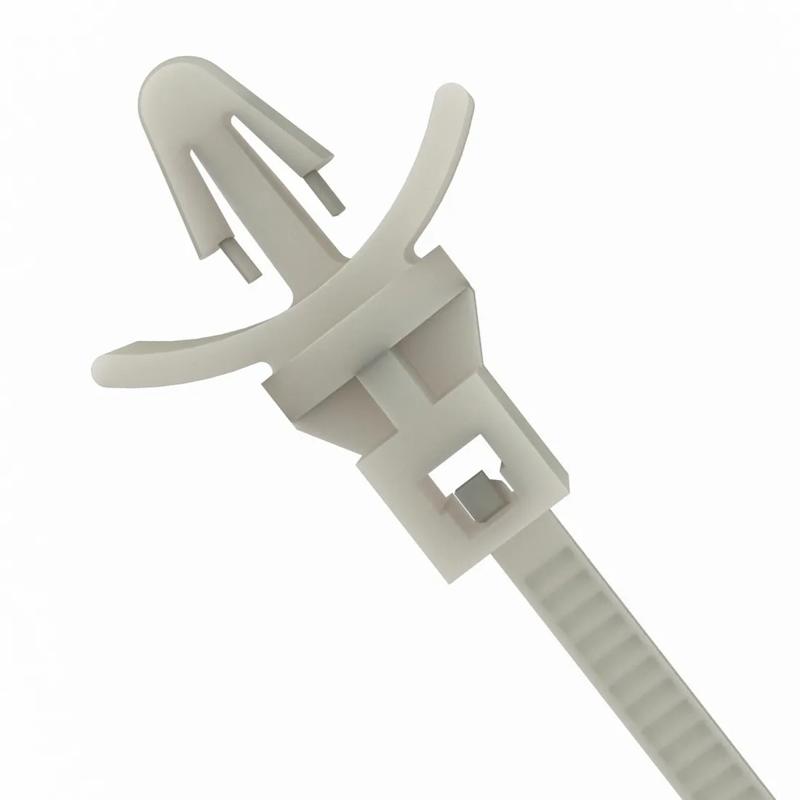

SRWIT18RA - Push Mount Ties
Cable ties with integrated push mount for snap-in attachment to panel holes, ensuring secure bundling.

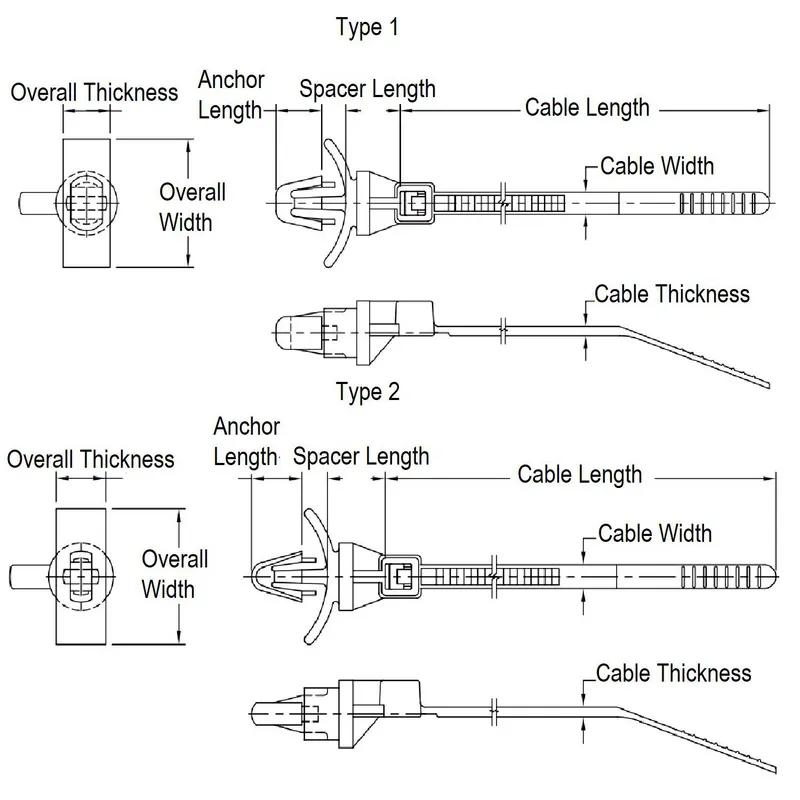

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Mounting Hole Diameter | Cable Width | Cable Diameter | Cable Width | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Width | Spacer Length | Overall Length | Anchor Length | Overall Thickness | Maximum Panel Thickness | Cable Length | Strap Width | Minimum Panel Thickness | Clip Height | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-18R2A-4-01 | UL94 V-2 | 19.1mm | Natural | 4.75mm | 1.0mm | 19.1mm | 2.5mm | 85°C | 1 | -40°C | Nylon 6/6 | 8.0kg | 13.9mm | 6.4mm | 114.7mm | 5.56mm | 2.79mm | 3.6mm | 114.7mm | 2.5mm | 1.6mm | - | - | |
WIT-18R1A-4-01 | UL94 V-2 | 19.1mm | Natural | 4.0mm | 1.0mm | 19.1mm | 2.5mm | 85°C | 2 | -40°C | Nylon 6/6 | 8.0kg | 14.29mm | 6.4mm | 114.7mm | 5.56mm | 5.56mm | 2.0mm | 114.7mm | 2.5mm | 0.8mm | - | - | |
WIT-18RA-4-01-M | UL94 V-2 | 19.1mm | Natural | 4.75mm | 1.0mm | 19.1mm | 2.5mm | 85°C | 1 | -40°C | Nylon 6/6 | 8.0kg | 14.29mm | 6.4mm | 114.7mm | 5.56mm | 5.56mm | 2.0mm | 114.7mm | 2.5mm | 0.8mm | - | - | |
WIT-18R2A-4-UV | UL94 V-2 | 4.75mm | Natural | 4.75mm | 1.0mm | 19.1mm | 13.9mm | 85°C | 1 | -40°C | Nylon | 8.0kg | 13.9mm | 6.4mm | - | 5.56mm | 2.79mm | 3.6mm | 114.7mm | 2.5mm | 1.6mm | 2.79mm | 13.9mm | |
WIT-18RA-4-UV | UL94 V-2 | 19.1mm | Natural | 4.75mm | 1.0mm | 19.1mm | 2.5mm | 85°C | 1 | -40°C | Nylon 6/6 | 8.0kg | 14.29mm | 6.4mm | 126.86mm | 5.56mm | 5.56mm | 2.0mm | 114.7mm | 2.5mm | 0.8mm | - | 5.56mm |
WIT-18R2A-4-01
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
19.1mm
Colour
Natural
Mounting Hole Diameter
4.75mm
WIT-18R1A-4-01
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
19.1mm
Colour
Natural
Mounting Hole Diameter
4.0mm
WIT-18RA-4-01-M
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
19.1mm
Colour
Natural
Mounting Hole Diameter
4.75mm
WIT-18R2A-4-UV
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
4.75mm
Colour
Natural
Anchor Length
5.56mm
