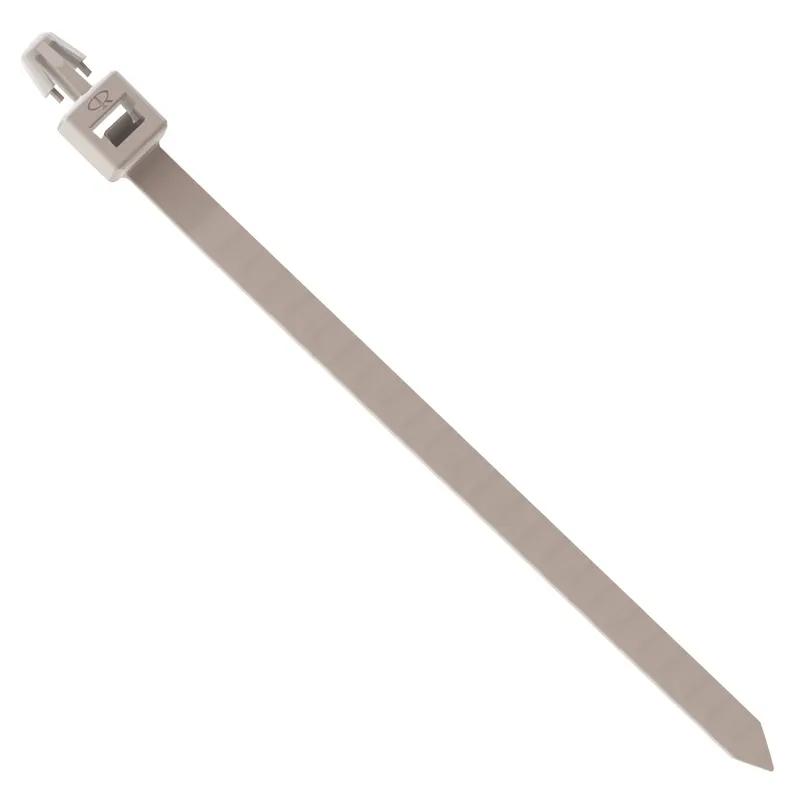

SRWIT 50RLA - Push Mount Ties
Cable ties with integrated push mount for snap-in attachment to panel holes, ensuring secure bundling.
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Length | Overall Thickness | Maximum Panel Thickness | Mounting Hole Diameter | Cable Diameter | Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Width | Spacer Length | Strap Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-50RLA-4 | UL94 V-2 | 4.7mm | Natural | 130.0mm | 1.3mm | 2.36mm | 4.7mm | 25.4mm | 2.36mm | 5.1mm | 85°C | 8.1mm | -40°C | Nylon 6/6 | 22.0kg | 4.8mm | 5.4mm | - | |
WIT-50RLA-3 | UL94 V-2 | 44.5mm | Natural | 200.0mm | 1.3mm | 3.2mm | 6.35mm | 44.5mm | 3.2mm | - | 85°C | 6.5mm | -40°C | Nylon 6/6 | 22.0kg | 4.8mm | 6.0mm | 4.8mm | |
WIT-50RLA-1 | UL94 V-2 | 25.4mm | Natural | 135.0mm | 1.3mm | 3.2mm | 6.35mm | 25.4mm | 3.2mm | - | 85°C | 6.5mm | -40°C | Nylon 6/6 | 22.0kg | 4.8mm | 6.0mm | 4.8mm | |
WIT-50RLA-2 | UL94 V-2 | 38.1mm | Natural | 170.0mm | 1.3mm | 3.2mm | 6.35mm | 38.1mm | 3.2mm | - | 85°C | 6.5mm | -40°C | Nylon 6/6 | 22.0kg | 4.8mm | 6.0mm | 4.8mm | |
WIT-50RLA-M | UL94 V-2 | 50.8mm | Natural | 225.0mm | 1.3mm | 3.2mm | 4.8mm | 50.8mm | 3.2mm | - | 85°C | 5.1mm | -40°C | Nylon 6/6 | 22.0kg | 4.8mm | 5.4mm | 4.8mm |
WIT-50RLA-4
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
4.7mm
Colour
Natural
Overall Length
130.0mm
WIT-50RLA-3
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
44.5mm
Colour
Natural
Overall Length
200.0mm
WIT-50RLA-1
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
25.4mm
Colour
Natural
Overall Length
135.0mm
WIT-50RLA-2
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
38.1mm
Colour
Natural
Overall Length
170.0mm
