SRWCC - Webbing Centre Clip
Clip used to manage and secure webbing or strapping at central mounting points.

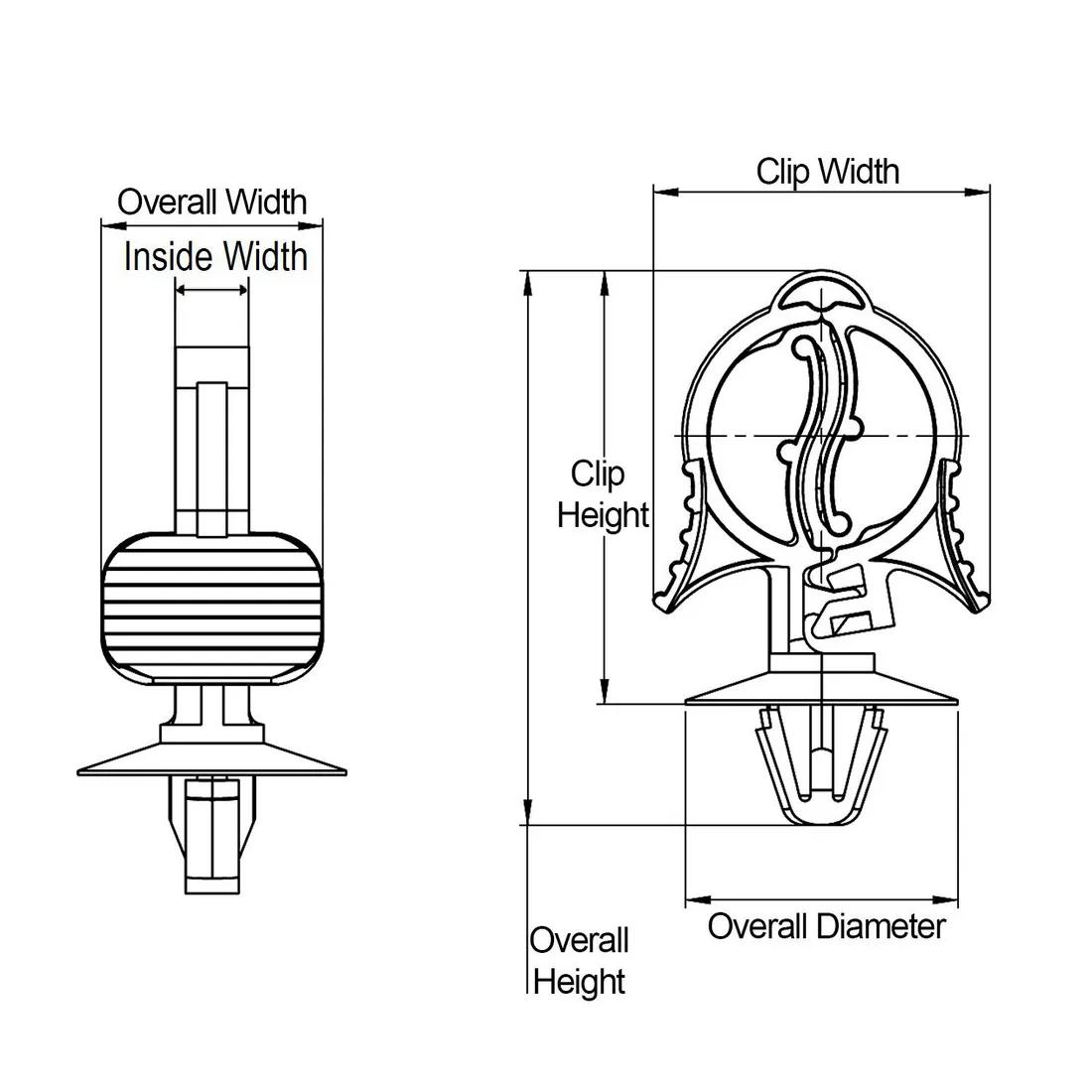

Item Code | Maximum Cable Bundle Diameter | Colour | Maximum Hole Diameter | Maximum Panel Thickness | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Overall Diameter | Minimum Cable Bundle Diameter | Overall Width | Minimum Panel Thickness | Overall Height | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WCC1-3-01 | 12.7mm | Natural | 4.8mm | 1.6mm | 85°C | 5.0mm | UL94 V-2 | 4.0mm | -40°C | Nylon 6/6 | 18.4mm | 3.0mm | 15.0mm | 0.5mm | 45.0mm | 37.0mm | 33.0mm | Webbing Centre Clip | |
WCC1-1-01 | 7.9mm | Natural | 4.8mm | 1.6mm | 85°C | 5.0mm | UL94 V-2 | 4.0mm | -40°C | Nylon 6/6 | 18.4mm | 3.0mm | 15.0mm | 0.5mm | 35.0mm | 28.0mm | 23.0mm | Webbing Centre Clip | |
WCC2-2-01 | 9.5mm | Natural | 6.8mm | 2.5mm | 85°C | 5.0mm | UL94 V-2 | 6.0mm | -40°C | Nylon 6/6 | 16.0mm | 3.0mm | 15.0mm | 0.5mm | 37.0mm | 31.0mm | 27.0mm | Webbing Centre Clip | |
WCC2-1-01 | 7.9mm | Natural | 6.8mm | 2.5mm | 85°C | 5.0mm | UL94 V-2 | 6.0mm | -40°C | Nylon 6/6 | 16.0mm | 3.0mm | 15.0mm | 0.5mm | 32.0mm | 28.0mm | 23.0mm | Webbing Centre Clip | |
WCC2-3-01 | 12.7mm | Natural | 6.8mm | 2.5mm | 85°C | 5.0mm | UL94 V-2 | 6.0mm | -40°C | Nylon 6/6 | 16.0mm | 3.0mm | 15.0mm | 0.5mm | 42.0mm | 37.0mm | 33.0mm | Webbing Centre Clip | |
WCC1-2-01 | 9.5mm | Natural | 4.8mm | 1.6mm | 85°C | 5.0mm | UL94 V-2 | 4.0mm | -40°C | Nylon 6/6 | 18.4mm | 3.0mm | 15.0mm | 0.5mm | 40.0mm | 31.0mm | 27.0mm | Webbing Centre Clip |
WCC1-3-01
Maximum Cable Bundle Diameter
12.7mm
Colour
Natural
Maximum Hole Diameter
4.8mm
Maximum Panel Thickness
1.6mm
WCC1-1-01
Maximum Cable Bundle Diameter
7.9mm
Colour
Natural
Maximum Hole Diameter
4.8mm
Maximum Panel Thickness
1.6mm
WCC2-2-01
Maximum Cable Bundle Diameter
9.5mm
Colour
Natural
Maximum Hole Diameter
6.8mm
Maximum Panel Thickness
2.5mm
WCC2-1-01
Maximum Cable Bundle Diameter
7.9mm
Colour
Natural
Maximum Hole Diameter
6.8mm
Maximum Panel Thickness
2.5mm
