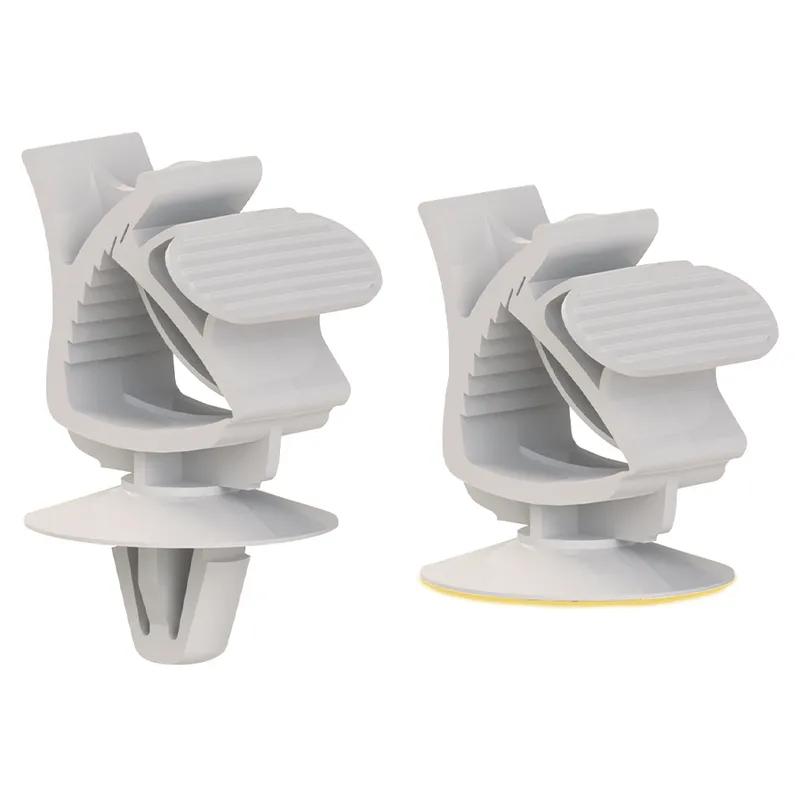

Adjustable clip with webbed structure for bundling and supporting wires of various sizes efficiently.
Item Code | Maximum Cable Bundle Diameter | Colour | Maximum Hole Diameter | Maximum Panel Thickness | Base Width | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Base Length | Minimum Panel Thickness | Overall Height | Clip Height | Clip Width | Type | Adhesive Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WAC2-01 | 8.5mm | Natural | 6.8mm | 2.5mm | 18.4mm | 85°C | 9.0mm | UL94 V-2 | 6.0mm | 40°C | Nylon 6/6 | 3.0mm | 18.4mm | 29.5mm | 0.5mm | 29.5mm | 21.0mm | 16.0mm | Webbed | - | |
WAC3-01A4-RT | 8.5mm | Natural | - | - | 17.8mm | 85°C | 9.0mm | UL94 V-2 | - | 40°C | Nylon 6/6 | 3.0mm | 17.8mm | 22.2mm | - | 22.2mm | 21.4mm | 16.0mm | Webbed | Acrylic | |
WAC1-01 | 8.5mm | Natural | 4.8mm | 1.6mm | 18.4mm | 85°C | 9.0mm | UL94 V-2 | 4.0mm | 40°C | Nylon 6/6 | 3.0mm | 18.4mm | 26.5mm | 0.5mm | 26.5mm | 21.0mm | 16.0mm | Webbed | - |
Maximum Cable Bundle Diameter
8.5mm
Colour
Natural
Maximum Hole Diameter
6.8mm
Maximum Panel Thickness
2.5mm
Maximum Cable Bundle Diameter
8.5mm
Colour
Natural
Base Width
17.8mm
Adhesive Material
Acrylic
Maximum Cable Bundle Diameter
8.5mm
Colour
Natural
Maximum Hole Diameter
4.8mm
Maximum Panel Thickness
1.6mm
