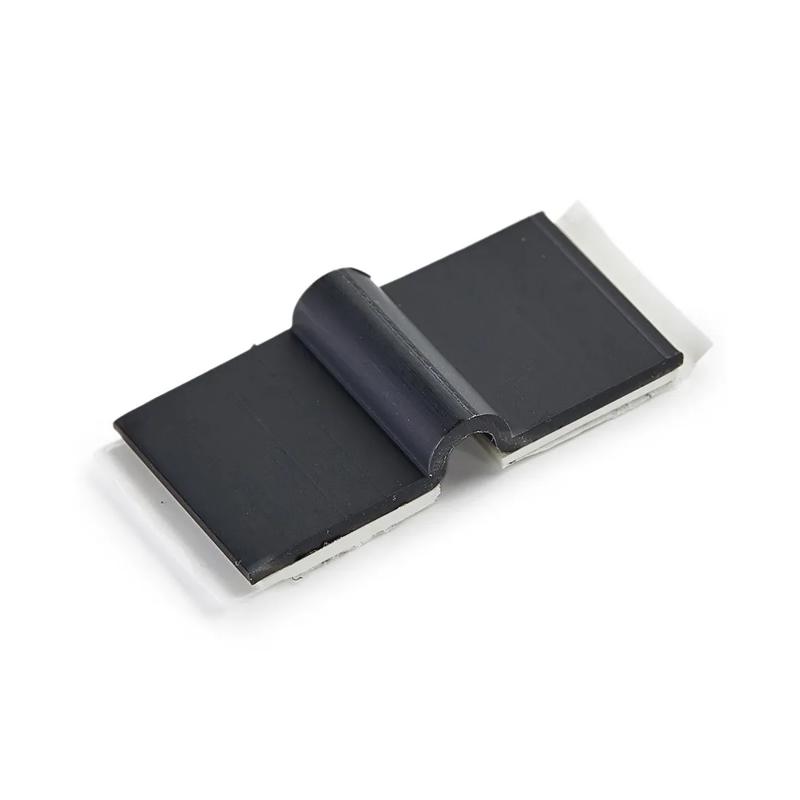

Adhesive-backed U clip for holding cable bundles securely on flat surfaces without drilling.

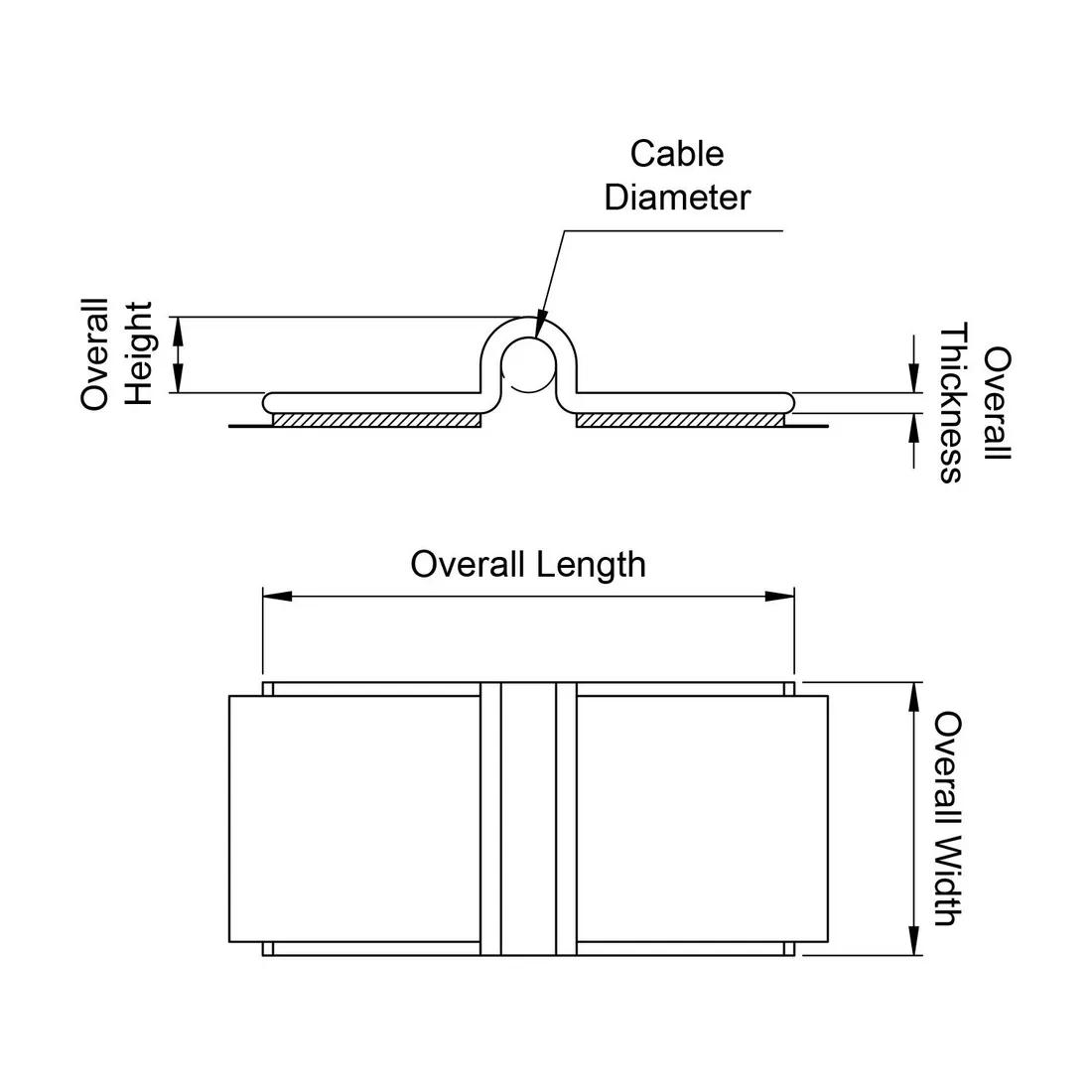

Item Code | Material Flammability Standard | Colour | Overall Width | Overall Length | Adhesive Material | Cable Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Thickness | Maximum Cable Bundle Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UC-6-RT | UL94 V-0 | Black | 15.9mm | 37.3mm | Acrylic | 9.5mm | 10.7mm | 50°C | 0°C | PVC | 1.2mm | - | |
UC-4-A4-RT | UL94 V-0 | Natural | 15.9mm | 34.1mm | Acrylic | 6.4mm | 7.5mm | - | - | PVC | 1.2mm | 6.4mm | |
UC-2-RT | UL94 V-0 | Black | 15.9mm | 30.9mm | Acrylic | 3.2mm | 4.4mm | 50°C | 0°C | PVC | 1.2mm | 3.2mm |
Material Flammability Standard
UL94 V-0
Colour
Black
Overall Width
15.9mm
Overall Length
37.3mm
Material Flammability Standard
UL94 V-0
Maximum Cable Bundle Diameter
6.4mm
Colour
Natural
Material
PVC
Material Flammability Standard
UL94 V-0
Maximum Cable Bundle Diameter
3.2mm
Colour
Black
Overall Width
15.9mm
