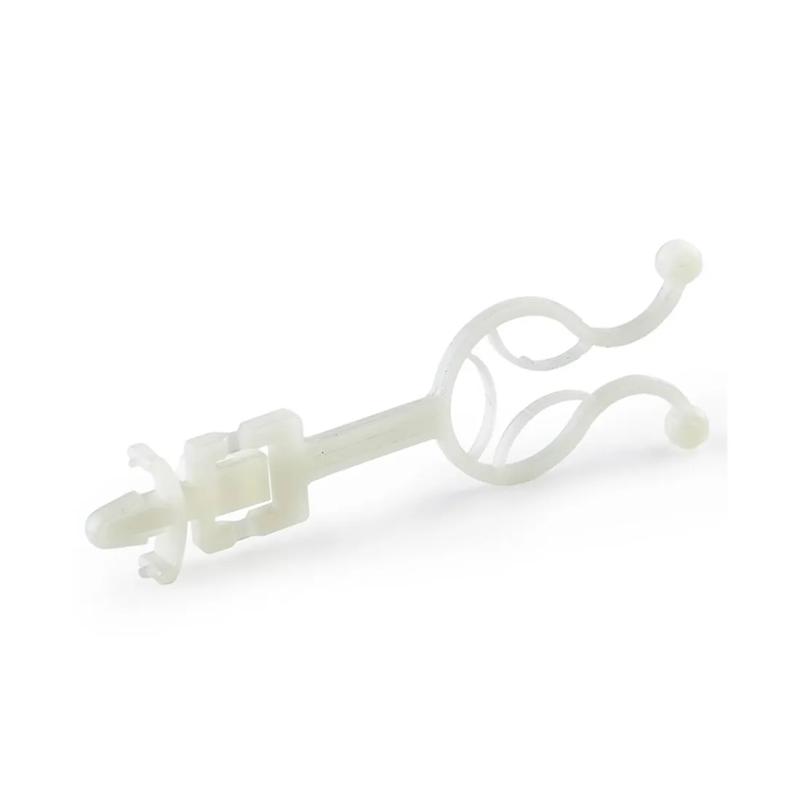

SRTLHS90 - Hinged Twist Lock with Stand-Off
Hinged twist-lock cable clip for easy cable access and secure panel mounting.
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Mounting Hole Diameter | Maximum Cable Bundle Diameter | Colour | Inside Height | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Distance Between Fixing Holes | Panel Thickness | Height Under Flange | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLHS90-300-01 | 2.0mm | 12.0mm | Natural | 40.0mm | 7.0mm | 2.0mm | 4.8mm | 85°C | 5.6mm | -45°C | Nylon 6/6 | 3.5mm | 8.3mm | 2.0mm | 13.2mm | 68.0mm | 68.0mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
TLHS90-300-01
Mounting Hole Diameter
2.0mm
Maximum Cable Bundle Diameter
12.0mm
Colour
Natural
Inside Height
40.0mm
