SRTCHBH - Tape on Cable Holder
Cable holder with pre-applied adhesive tape for quick installation without screws or fasteners.
Showing 1-2 of 2
Per page:1-2 of 2

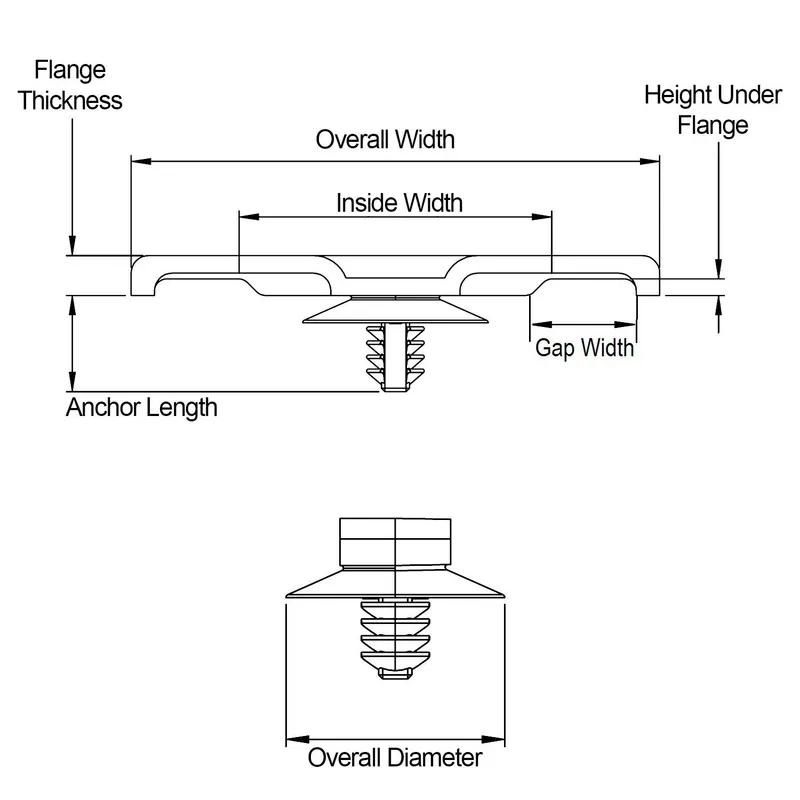

Item Code | Colour | Overall Width | Anchor Length | Mounting Hole Diameter | Gap Width | Height Under Flange | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Overall Diameter | Minimum Panel Thickness | Cable Diameter | Flange Thickness | Overall Height | Clip Height | Clip Width | Type | Overall Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TCHBH2-1-19 | Black | 45.0mm | 9.8mm | 6.4mm | 7.2mm | 1.4mm | 110°C | 26.6mm | UL94 V-0 | -40°C | Nylon 6/6 | 16.0mm | 0.8mm | 6.4mm | 3.4mm | 13.2mm | 3.4mm | 8.0mm | Tape on Cable Holder | - | |
TCHBH1-1-19 | Black | 8.0mm | 8.1mm | 4.8mm | 7.2mm | 1.4mm | 110°C | 26.6mm | UL94 V-0 | -40°C | Nylon 6/6 | 16.0mm | 0.8mm | 4.8mm | 3.4mm | 11.5mm | 3.4mm | 8.0mm | Tape on Cable Holder | 45.0mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
TCHBH2-1-19
Colour
Black
Overall Width
45.0mm
Anchor Length
9.8mm
Mounting Hole Diameter
6.4mm
TCHBH1-1-19
Colour
Black
Overall Width
8.0mm
Mounting Hole Diameter
4.8mm
Gap Width
7.2mm
