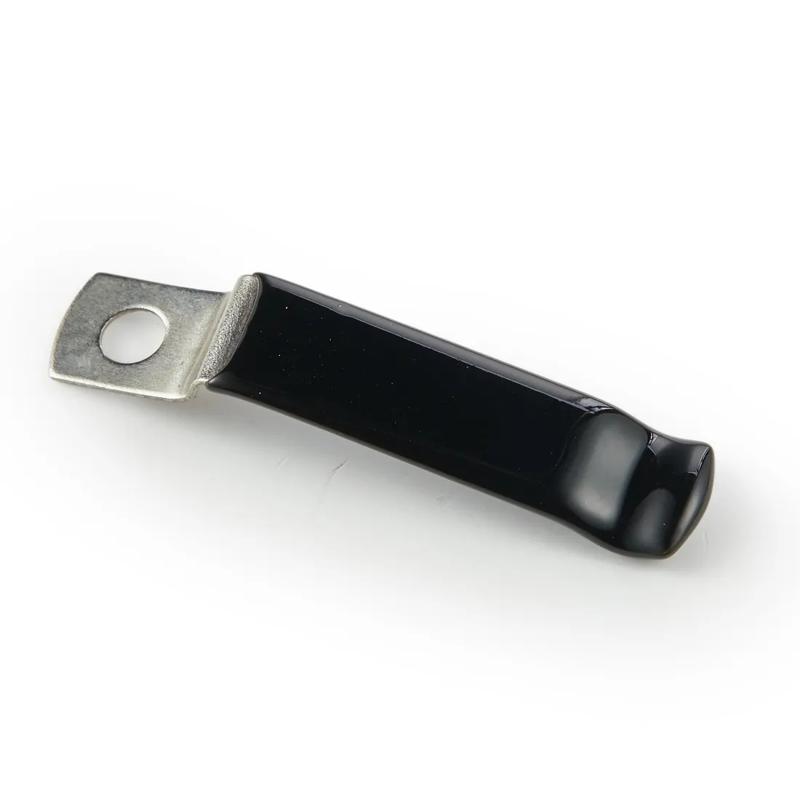

SRSTCV1 - Vinyl Coated Steel Tension Clamp
Steel tension clamp with vinyl coating for corrosion resistance and cushioned cable protection.
Showing 1-1 of 1
Per page:1-1 of 1

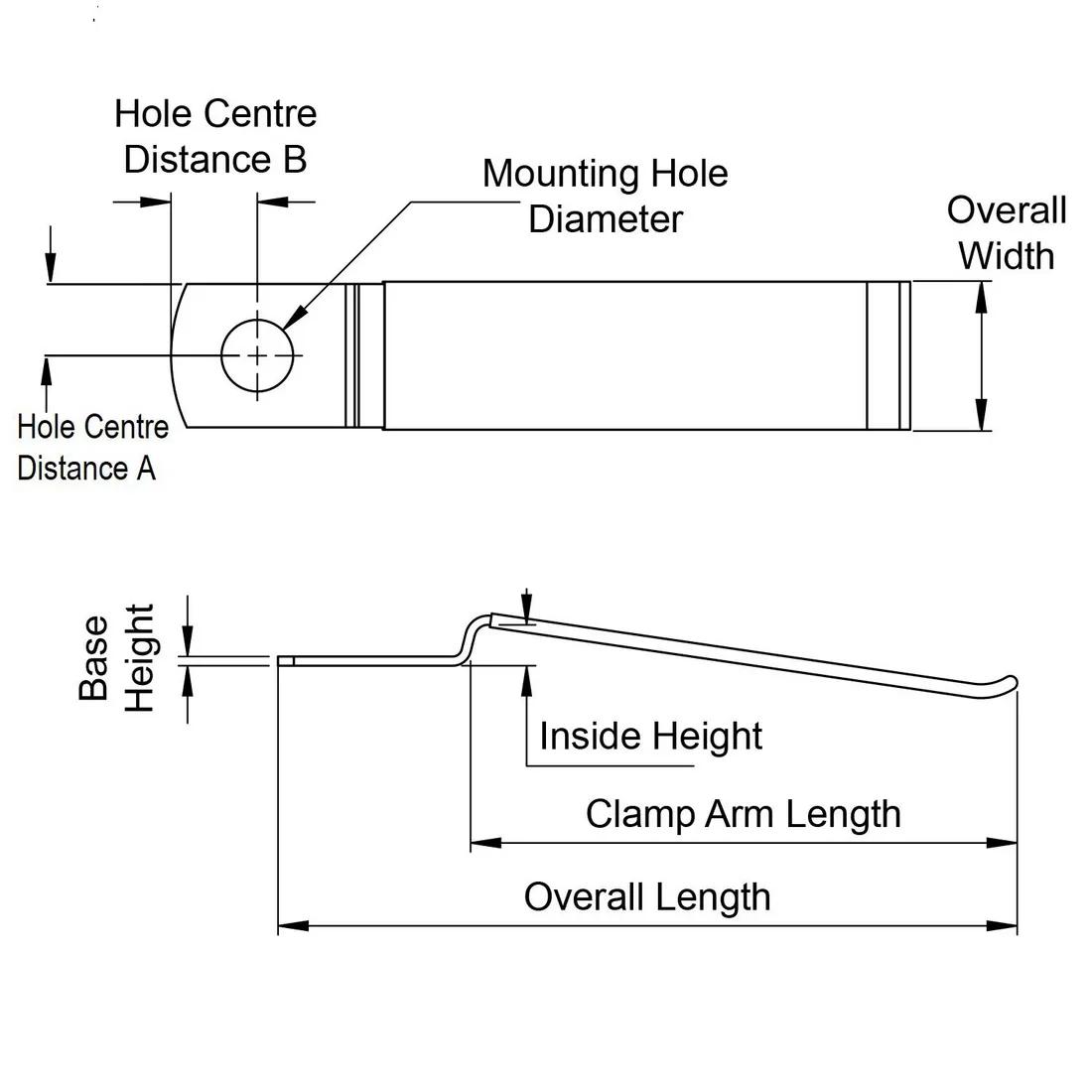

Item Code | Colour | Overall Width | Overall Length | Mounting Hole Diameter | Length to Hole Center | Maximum Operating Temperature | Wall Thickness | Inside Height | Minimum Operating Temperature | Thread Size | Material | Coating | Base Height | Overall Height | Clamp Arm Length | Material Specification | Length to Hole Center | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STCV-1 | Black | 7.9mm | 40.9mm | 4.0mm | 3.9mm | 287.5°C | 2.3mm | 2.3mm | -129°C | #6;M3 | Stainless Steel | PVC | 0.5mm | 42.9mm | 30.2mm | SAE 30301 | 4.8mm | Tension |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
STCV-1
Colour
Black
Overall Width
7.9mm
Overall Length
40.9mm
Mounting Hole Diameter
4.0mm
