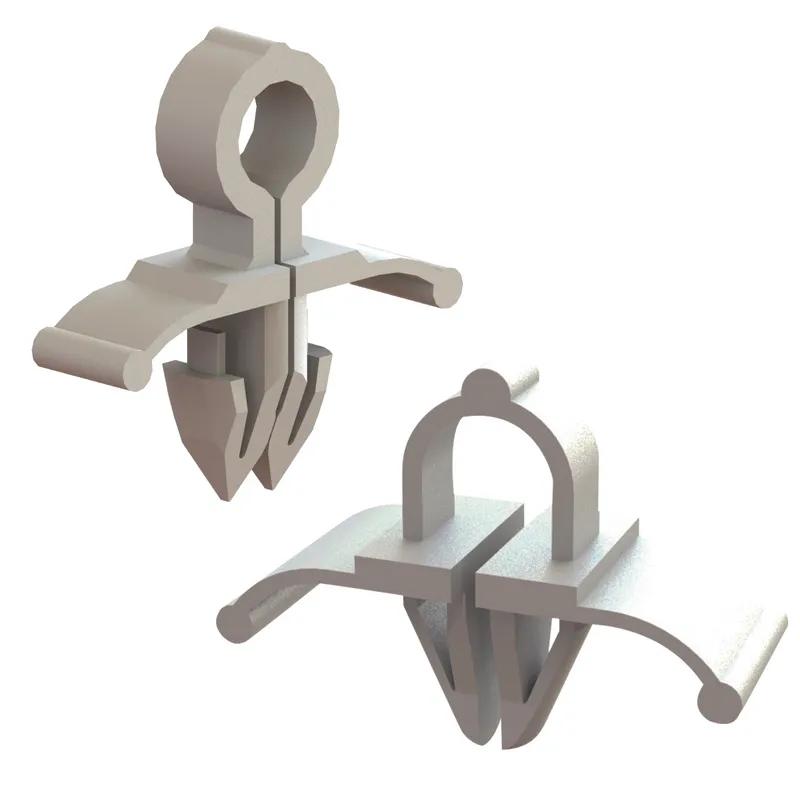

SRSRC - Split Routing Clip
Clip designed with a split opening for easy insertion and securing of cables without disconnection.
Item Code | Material Flammability Standard | Colour | Overall Length | Maximum Panel Thickness | Length to Hole Center | Mounting Hole Diameter | Cable Diameter | Gap Width | Maximum Operating Temperature | Adjustability | Minimum Operating Temperature | Material | Minimum Panel Thickness | Overall Height | Clip Height | Clip Width | Type | Wall Thickness | Overall Width | Anchor Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SRC-1-01 | UL94 V-2 | Natural | 21.6mm | 3.0mm | 11.2mm | 6.25mm | 5.0mm | 0.4mm | 85°C | Fixed | -40°C | Nylon 6/6 | 2.0mm | 22.3mm | 12.2mm | 4.0mm | Split Routing Clip | - | - | - | |
SRC-7-01 | UL94 V-2 | Natural | 25.7mm | 1.52mm | 9.8mm | 6.35mm | 11.1mm | - | 85°C | Fixed | -40°C | Nylon 6/6 | 1.27mm | 24.7mm | - | 5.1mm | Split Routing Clip | 1.5mm | 9.5mm | 7.1mm | |
SRC-8-01 | UL94 V-2 | Natural | 25.7mm | 1.52mm | 10.8mm | 6.35mm | 12.7mm | - | 85°C | Fixed | -40°C | Nylon 6/6 | 1.27mm | 26.5mm | - | 5.1mm | Split Routing Clip | 1.5mm | 9.5mm | 7.1mm | |
SRC-4-01 | UL94 V-2 | Natural | - | 1.52mm | 6.6mm | 8.34mm | 6.4mm | - | 85°C | Fixed | -40°C | Nylon 6/6 | 1.27mm | 19.1mm | - | 3.8mm | Split Routing Clip | 1.0mm | - | 7.1mm | |
SRC-10-01 | UL94 V-2 | Natural | 25.7mm | 1.52mm | 12.7mm | 6.35mm | 15.9mm | - | 85°C | Fixed | -40°C | Nylon 6/6 | 1.27mm | 29.9mm | - | 5.1mm | Split Routing Clip | 1.5mm | 9.5mm | 7.1mm |
SRC-1-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Overall Length
21.6mm
Maximum Panel Thickness
3.0mm
SRC-7-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.5mm
Overall Width
9.5mm
SRC-8-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.5mm
Overall Width
9.5mm
SRC-4-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.0mm
Anchor Length
7.1mm
