SRSHK - Stand-Off Harness Clip
Harness clip providing a standoff to keep wires separated from panel surfaces, aiding in organized routing.

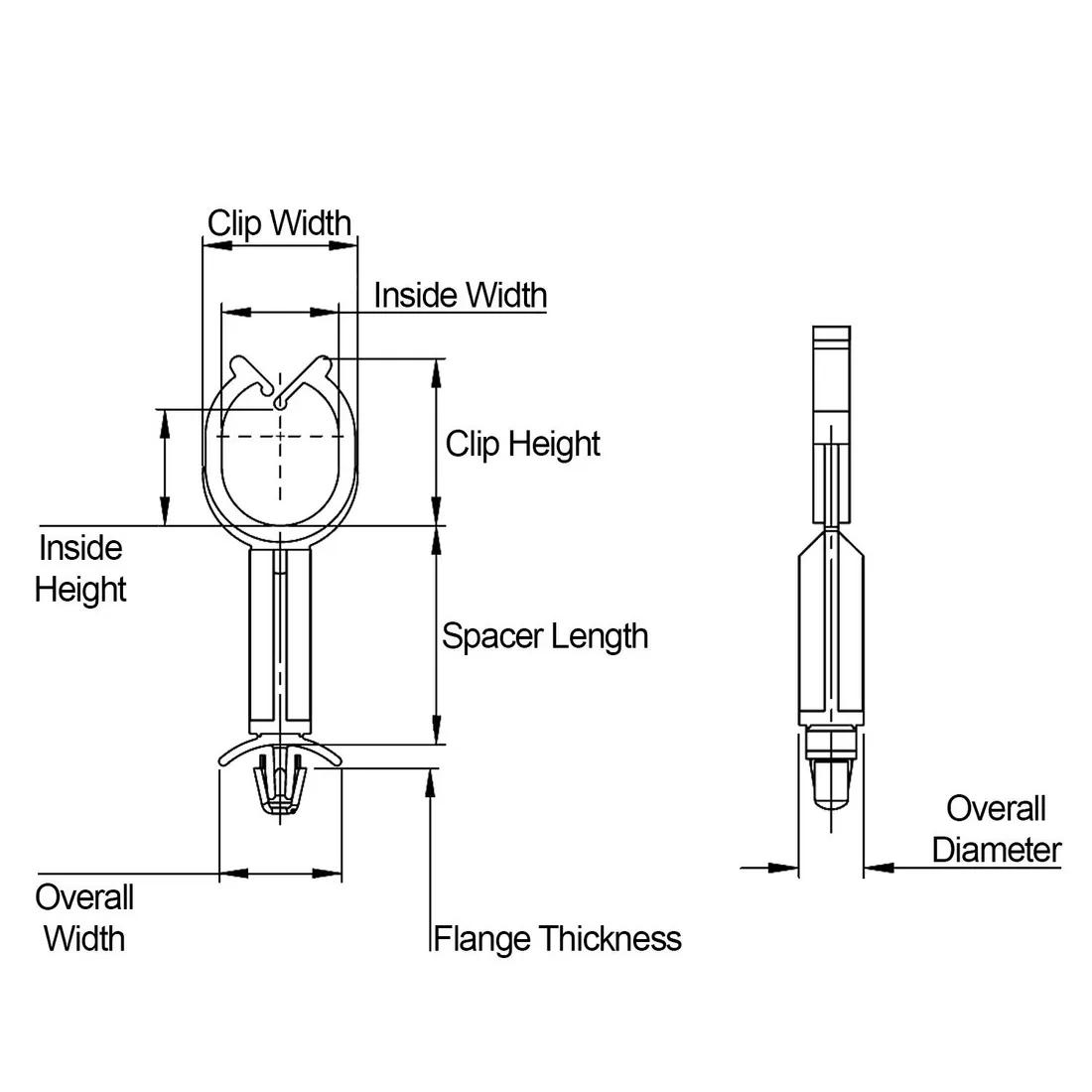

Item Code | Colour | Inside Height | Maximum Panel Thickness | Mounting Hole Diameter | Flange Thickness | Gap Width | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Spacer Length | Strap Width | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SHKE-6-01 | Natural | 20.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 29.0mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 9.5mm | 14.3mm | 0.76mm | |
SHK-20-01 | Natural | 13.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 19.5mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 31.8mm | 14.3mm | 0.76mm | |
SHK-6-01 | Natural | 13.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 19.5mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 9.5mm | 14.3mm | 0.76mm | |
SHK-16-01 | Natural | 13.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 19.5mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 25.4mm | 14.3mm | 0.76mm | |
SHKE-8-01 | Natural | 20.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 29.0mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 12.7mm | 14.3mm | 0.76mm | |
SHK-8-01 | Natural | 13.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 19.5mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 12.7mm | 14.3mm | 0.76mm | |
SHKE-12-01 | Natural | 20.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 29.0mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 19.1mm | 14.3mm | 0.76mm | |
SHKE-20-01 | Natural | 20.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 29.0mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 31.8mm | 14.3mm | 0.76mm | |
SHKE-16-01 | Natural | 20.6mm | 2.0mm | 4.8mm | 2.8mm | 2.8mm | 29.0mm | 85°C | 18.0mm | 13.6mm | UL94 V-2 | -40°C | Nylon 6/6 | 7.1mm | 14.3mm | 25.4mm | 14.3mm | 0.76mm |
SHKE-6-01
Colour
Natural
Inside Height
20.6mm
Maximum Panel Thickness
2.0mm
Mounting Hole Diameter
4.8mm
SHK-20-01
Colour
Natural
Inside Height
13.6mm
Maximum Panel Thickness
2.0mm
Mounting Hole Diameter
4.8mm
SHK-6-01
Colour
Natural
Inside Height
13.6mm
Maximum Panel Thickness
2.0mm
Mounting Hole Diameter
4.8mm
SHK-16-01
Colour
Natural
Inside Height
13.6mm
Maximum Panel Thickness
2.0mm
Mounting Hole Diameter
4.8mm
