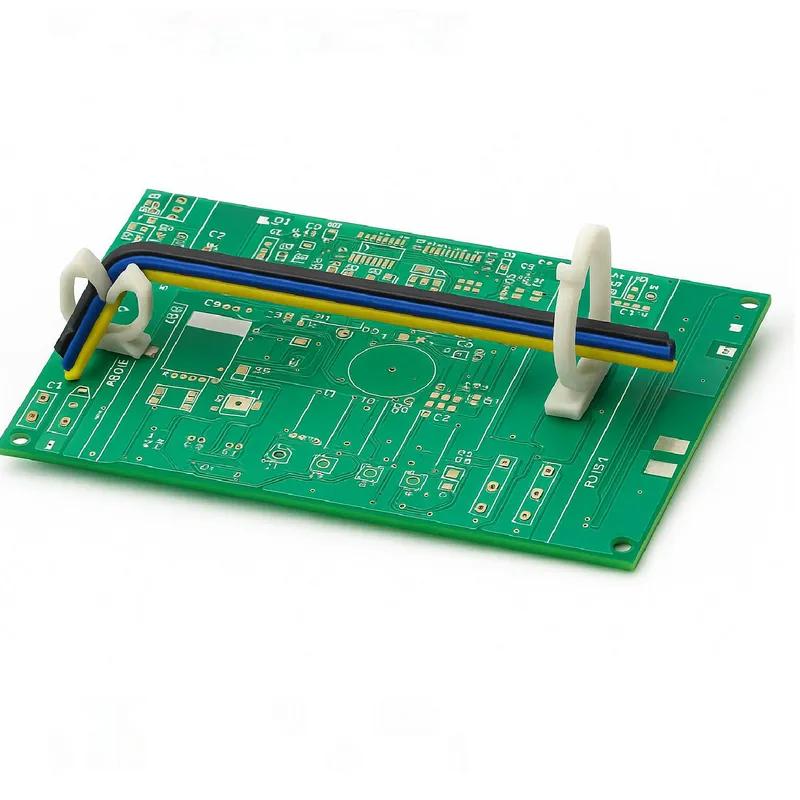

SRSHHK - Slot Hole Harness Clip
Clip designed to snap into slot holes, securing wire harnesses for organized cable management.
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Material Flammability Standard | Colour | Clip Length | Overall Width | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Mounting Hole Width | Minimum Panel Thickness | Overall Height | Maximum Operating Temperature | Mounting Hole Length | Minimum Operating Temperature | Material | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SHHK-3-19 | UL94 V-0 | Natural | 16.0mm | 6.0mm | 16.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 18.6mm | 110°C | 8.8mm | -40°C | Nylon 6/6 | 3.8mm | Slot Hole | |
SHHK-1-19 | UL94 V-0 | Natural | 18.0mm | 6.0mm | 18.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 28.6mm | 110°C | 8.8mm | -40°C | Nylon 6/6 | 4.0mm | Slot Hole | |
SHHK-2-01 | UL94 V-2 | Natural | 16.0mm | 6.0mm | 16.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 22.4mm | 85°C | 8.8mm | -40°C | Nylon 6/6 | 3.8mm | Slot Hole | |
SHHK-3-01 | UL94 V-2 | Natural | 16.0mm | 6.0mm | 16.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 18.6mm | 85°C | 8.8mm | -40°C | Nylon 6/6 | 3.8mm | Slot Hole | |
SHHK-2-19 | UL94 V-0 | Natural | 16.0mm | 6.0mm | 16.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 22.4mm | 110°C | 8.8mm | -40°C | Nylon 6/6 | 3.8mm | Slot Hole | |
SHHK-1-01 | UL94 V-2 | Natural | 18.0mm | 6.0mm | 18.0mm | 2.0mm | 2.9mm | 3.0mm | 0.8mm | 28.6mm | 85°C | 8.8mm | -40°C | Nylon 6/6 | 4.0mm | Slot Hole |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SHHK-3-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Clip Length
16.0mm
Overall Width
6.0mm
SHHK-1-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Clip Length
18.0mm
Overall Width
6.0mm
SHHK-2-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Clip Length
16.0mm
Overall Width
6.0mm
SHHK-3-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Clip Length
16.0mm
Overall Width
6.0mm
