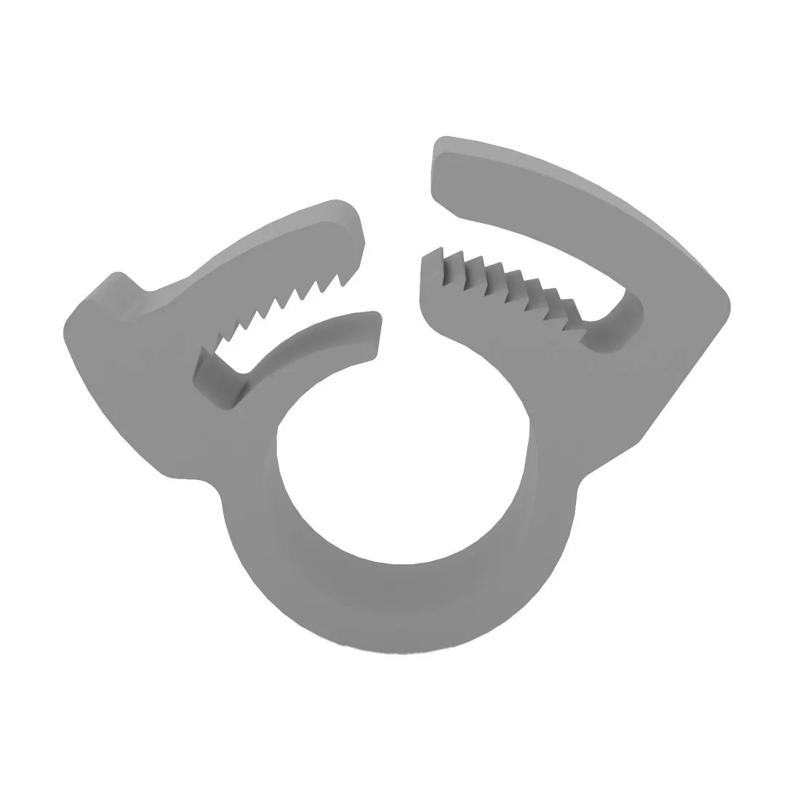

SRSHC - Snap-It Hose Clamp
Quick-install hose clamp that securely grips and holds tubing or cables with a snap-fit design.
Showing 1-8 of 8
Per page:1-8 of 8

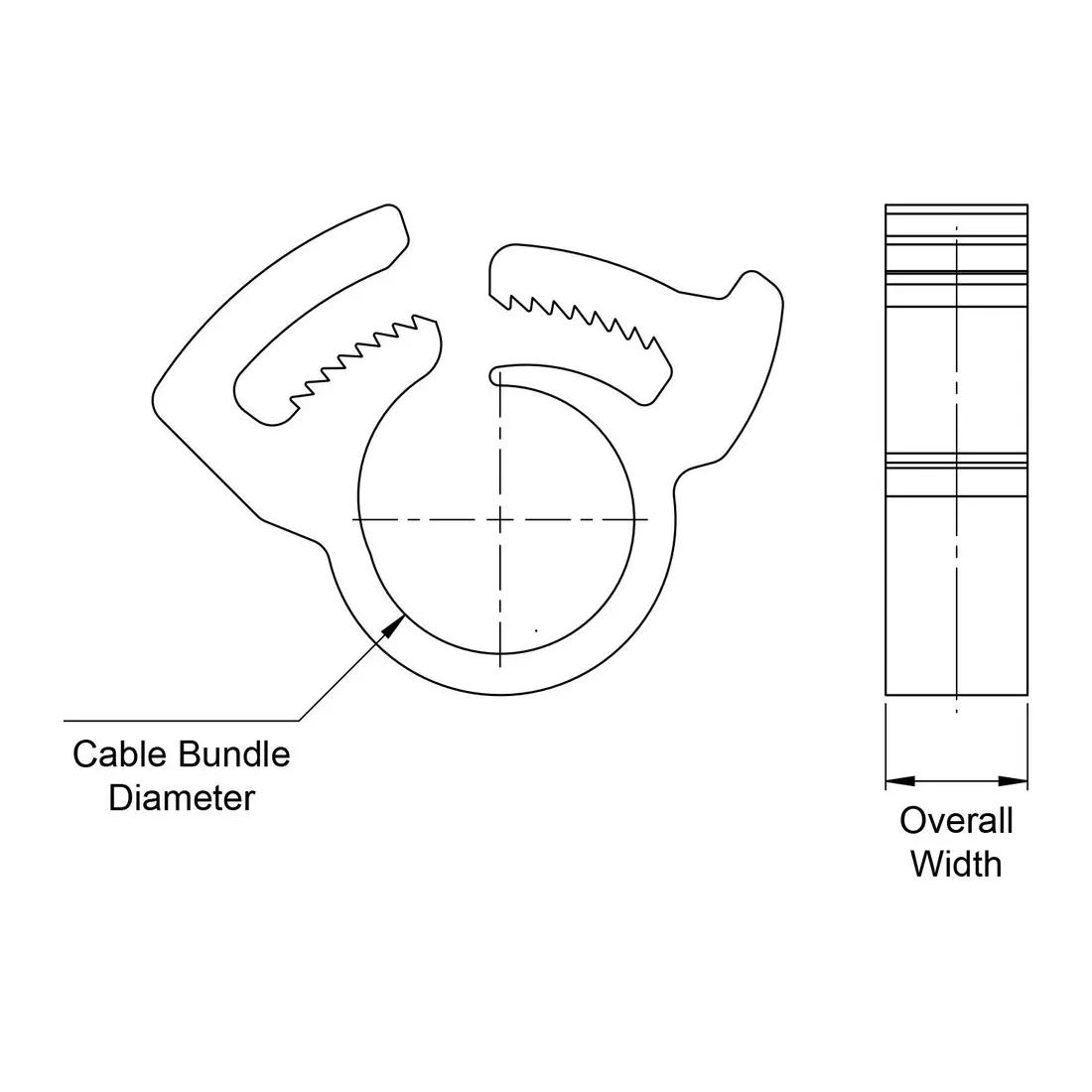

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Material | Type | Minimum Cable Bundle Diameter | Overall Width | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
SHC-38 | UL94 HB | 16.7mm | White | Nylon 6/6 | Quick Assembly | 15.1mm | 5.6mm | - | - | |
135010259902 | - | 9.2mm | Black | Nylon 6/6 | 1 | 8.0mm | 5.0mm | - | - | |
135010559902 | - | 13.5mm | Black | Nylon 6/6 | 1 | 12.0mm | 6.0mm | - | - | |
135010459902 | - | 12.0mm | Black | Nylon 6/6 | 1 | 10.2mm | 6.0mm | - | - | |
SHC-16GF | UL94 HB | 7.9mm | White | Nylon 6/6 | Snap It | 6.4mm | 3.3mm | 85°C | -40°C | |
135010659902 | - | 15.0mm | Black | Nylon 6/6 | 1 | 12.8mm | 7.0mm | - | - | |
135010159902 | - | 6.8mm | Black | Nylon 6/6 | 1 | 6.0mm | 5.0mm | - | - | |
135010759902 | - | 17.2mm | Black | Nylon 6/6 | 1 | 15.0mm | 7.0mm | - | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
SHC-38
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
16.7mm
Colour
White
Material
Nylon 6/6
135010259902
Maximum Cable Bundle Diameter
9.2mm
Colour
Black
Material
Nylon 6/6
Type
1
135010559902
Maximum Cable Bundle Diameter
13.5mm
Colour
Black
Material
Nylon 6/6
Type
1
135010459902
Maximum Cable Bundle Diameter
12.0mm
Colour
Black
Material
Nylon 6/6
Type
1
Per page:
1–5 of 9
