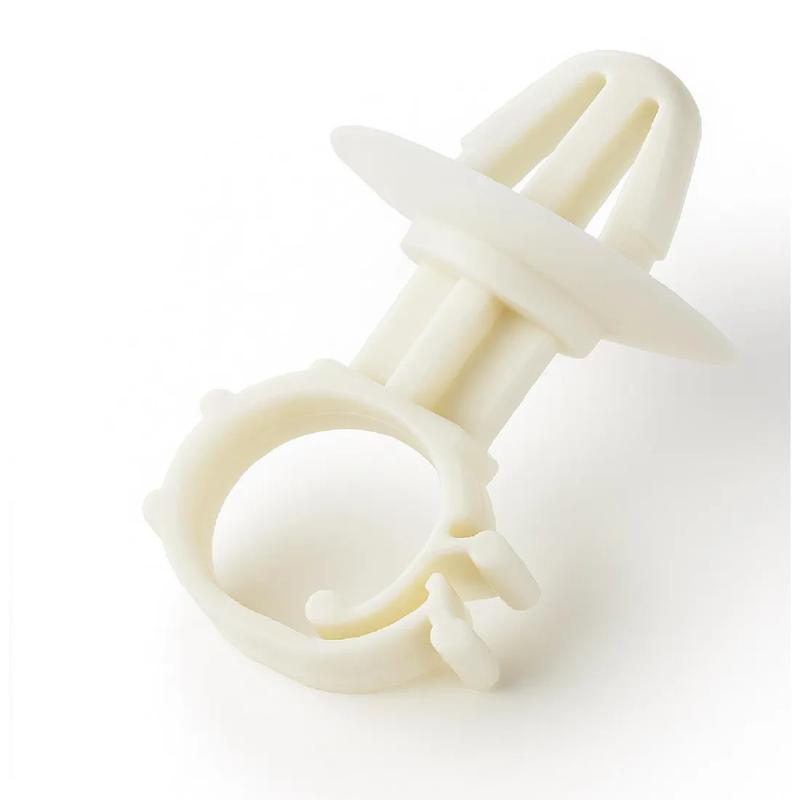

SRSCCSE - Standoff Cable Clip Side Entry
Side-entry clip design allowing cables to be routed and secured with space between bundle and mounting surface.
Showing 1-4 of 4
Per page:1-4 of 4

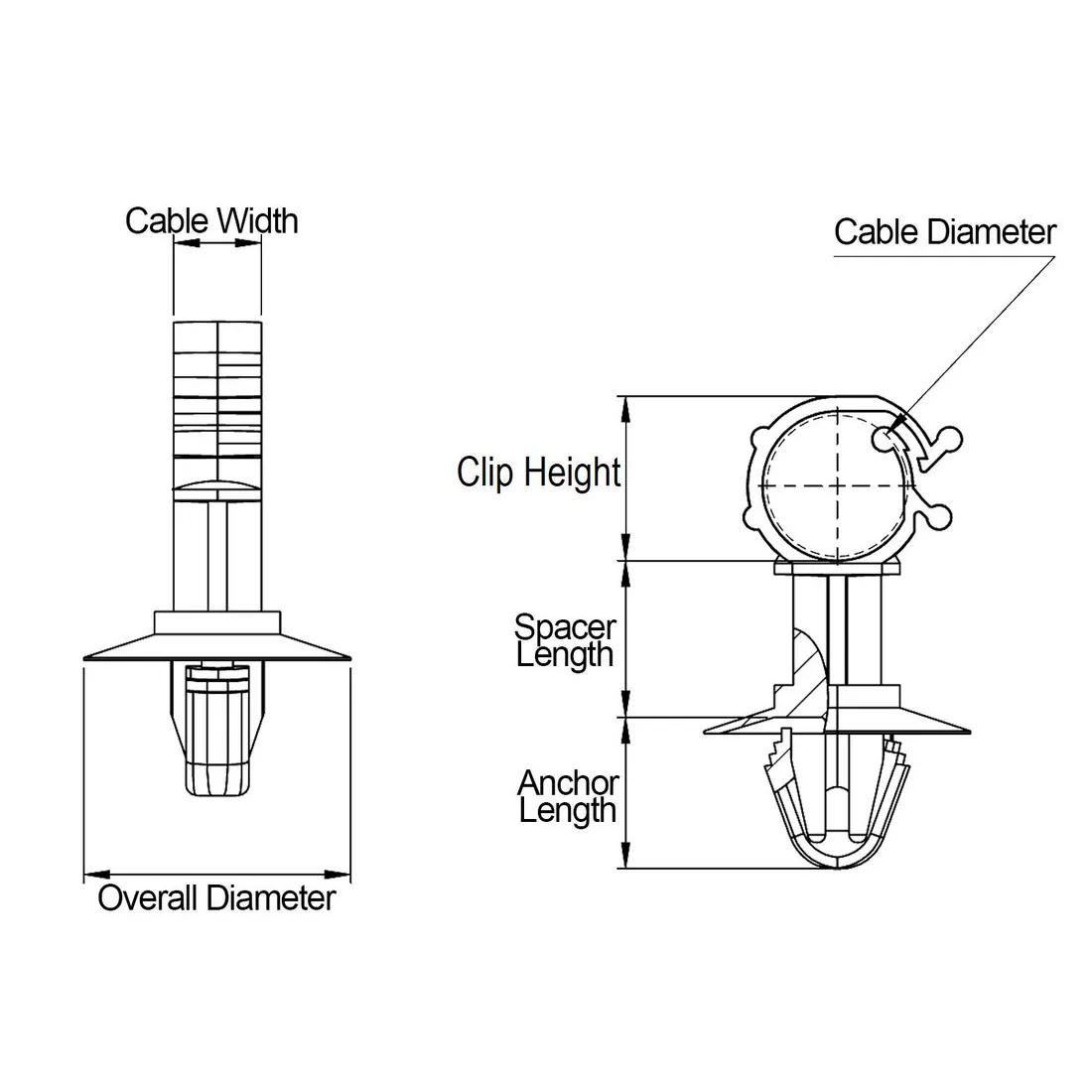

Item Code | Colour | Maximum Hole Diameter | Material | Spacer Length | Anchor Length | Maximum Panel Thickness | Cable Diameter | Clip Height | Clip Width | Material Flammability Standard | Minimum Hole Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCC-SE-10-19 | Natural | 7.0mm | Nylon 6/6 | 10.0mm | 9.7mm | 1.25mm | 9.0mm | 10.5mm | 5.6mm | UL94 V-0 | 6.5mm | 0.8mm | |
SCC-SE-4-19 | Natural | 7.0mm | Nylon 6/6 | 4.0mm | 9.7mm | 1.25mm | 9.0mm | 10.5mm | 5.6mm | UL94 V-0 | 6.5mm | 0.8mm | |
SCC-SE-8-19 | Natural | 7.0mm | Nylon 6/6 | 8.0mm | 9.7mm | 1.25mm | 9.0mm | 10.5mm | 5.6mm | UL94 V-0 | 6.5mm | 0.8mm | |
SCC-SE-12-19 | Natural | 7.0mm | Nylon 6/6 | 12.0mm | 9.7mm | 1.25mm | 9.0mm | 10.5mm | 5.6mm | UL94 V-0 | 6.5mm | 0.8mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
SCC-SE-10-19
Colour
Natural
Maximum Hole Diameter
7.0mm
Material
Nylon 6/6
Spacer Length
10.0mm
SCC-SE-4-19
Colour
Natural
Maximum Hole Diameter
7.0mm
Material
Nylon 6/6
Spacer Length
4.0mm
SCC-SE-8-19
Colour
Natural
Maximum Hole Diameter
7.0mm
Material
Nylon 6/6
Spacer Length
8.0mm
SCC-SE-12-19
Colour
Natural
Maximum Hole Diameter
7.0mm
Material
Nylon 6/6
Spacer Length
12.0mm
