SRSCCBHSE - Standoff Cable Clip Side Entry
Side-entry clip design allowing cables to be routed and secured with space between bundle and mounting surface.

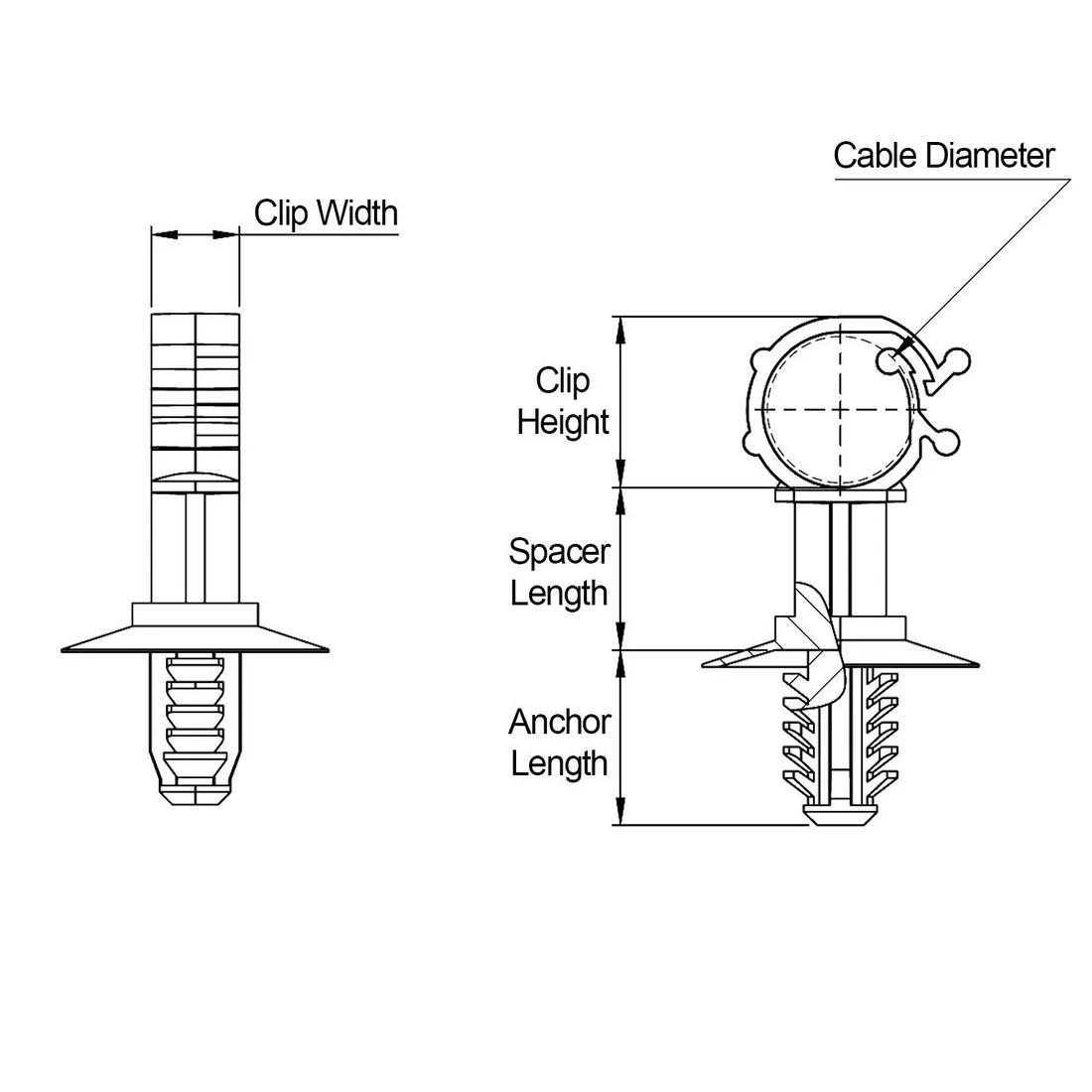

Item Code | Material Flammability Standard | Colour | Maximum Hole Diameter | Spacer Length | Anchor Length | Mounting Hole Diameter | Cable Diameter | Clip Height | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Minimum Panel Thickness | Panel Thickness | Height Under Flange | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCCBH-SE-8-19 | UL94 V-0 | Natural | 6.5mm | 8.0mm | 10.8mm | 6.5mm | 9.0mm | 10.5mm | 110°C | 5.7mm | -40°C | Nylon 6/6 | 0.7mm | 0.7mm | 10.8mm | |
SCCBH-SE-12-19 | UL94 V-0 | Natural | 6.5mm | 12.0mm | 10.8mm | 6.5mm | 9.0mm | 10.5mm | 110°C | 5.7mm | -40°C | Nylon 6/6 | 0.7mm | 0.7mm | 10.8mm | |
SCCBH-SE-10-19 | UL94 V-0 | Natural | 6.5mm | 10.0mm | 10.8mm | 6.5mm | 9.0mm | 10.5mm | 110°C | 5.7mm | -40°C | Nylon 6/6 | 0.7mm | 0.7mm | 10.8mm | |
SCCBH-SE-4-19 | UL94 V-0 | Natural | 6.5mm | 4.0mm | 10.8mm | 6.5mm | 9.0mm | 10.5mm | 110°C | 5.7mm | -40°C | Nylon 6/6 | 0.7mm | 0.7mm | 10.8mm |
SCCBH-SE-8-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Maximum Hole Diameter
6.5mm
Spacer Length
8.0mm
SCCBH-SE-12-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Maximum Hole Diameter
6.5mm
Spacer Length
12.0mm
SCCBH-SE-10-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Maximum Hole Diameter
6.5mm
Spacer Length
10.0mm
SCCBH-SE-4-19
Material Flammability Standard
UL94 V-0
Colour
Natural
Maximum Hole Diameter
6.5mm
Spacer Length
4.0mm
