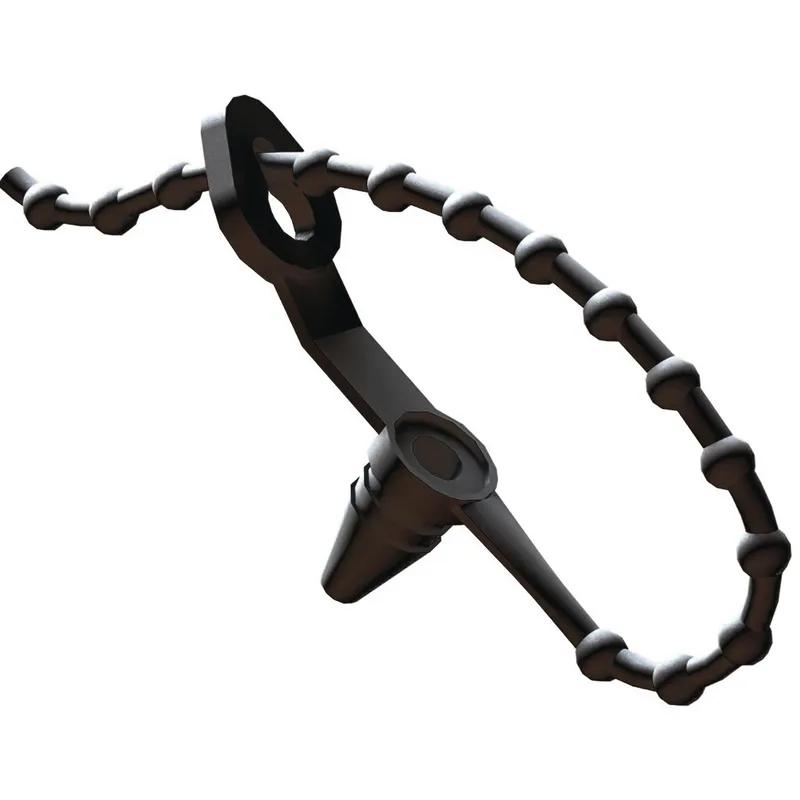

SRPT - Beaded Wire Tie
Flexible beaded tie for bundling cables, offering a reusable and quick fastening solution.
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Minimum Cable Bundle Diameter | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Gap Width | Clip Height | Maximum Operating Temperature | Bead Type | Minimum Operating Temperature | Material | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PT-203 | UL94 HB | 31.8mm | Black | 6.4mm | 127.0mm | 3.2mm | 6.4mm | 5.6mm | 11.9mm | 85°C | 3.2mm | -40°C | PP | 0.8mm | |
PT-303 | UL94 V-2 | 31.8mm | Black | 6.4mm | 127.0mm | 3.2mm | 6.4mm | 5.6mm | 11.9mm | 65°C | 3.2mm | 0°C | Nylon 6/6 | 0.8mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
PT-203
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
31.8mm
Colour
Black
Minimum Cable Bundle Diameter
6.4mm
PT-303
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8mm
Colour
Black
Minimum Cable Bundle Diameter
6.4mm
