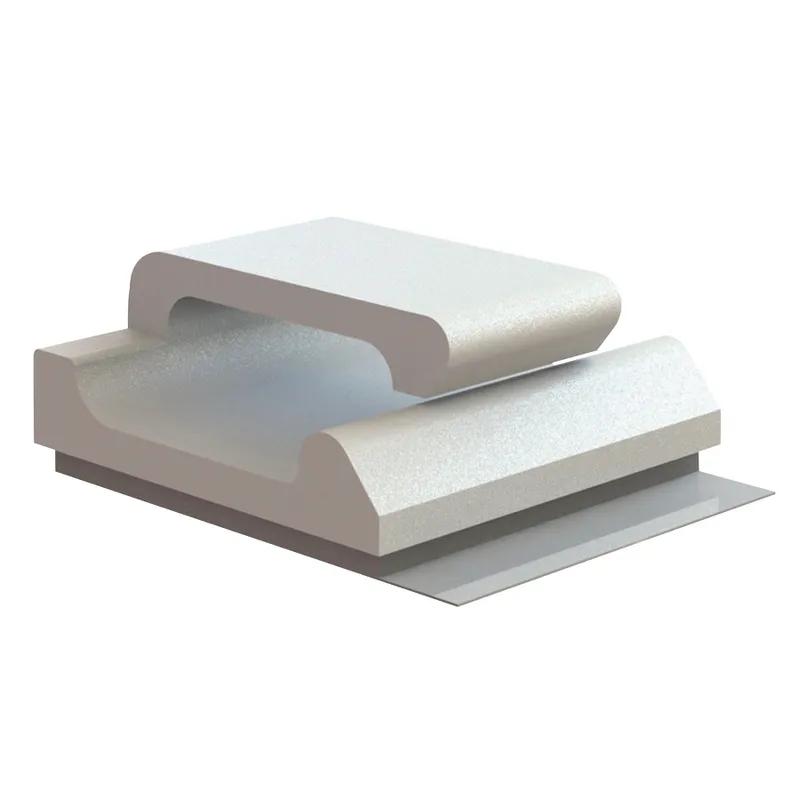

SRMWSSEB - Side Entry Micro Wire Saddle on Adhesive Base
Compact wire saddle with adhesive backing for routing small diameter wires onto flat surfaces.
Showing 1-4 of 4
Per page:1-4 of 4

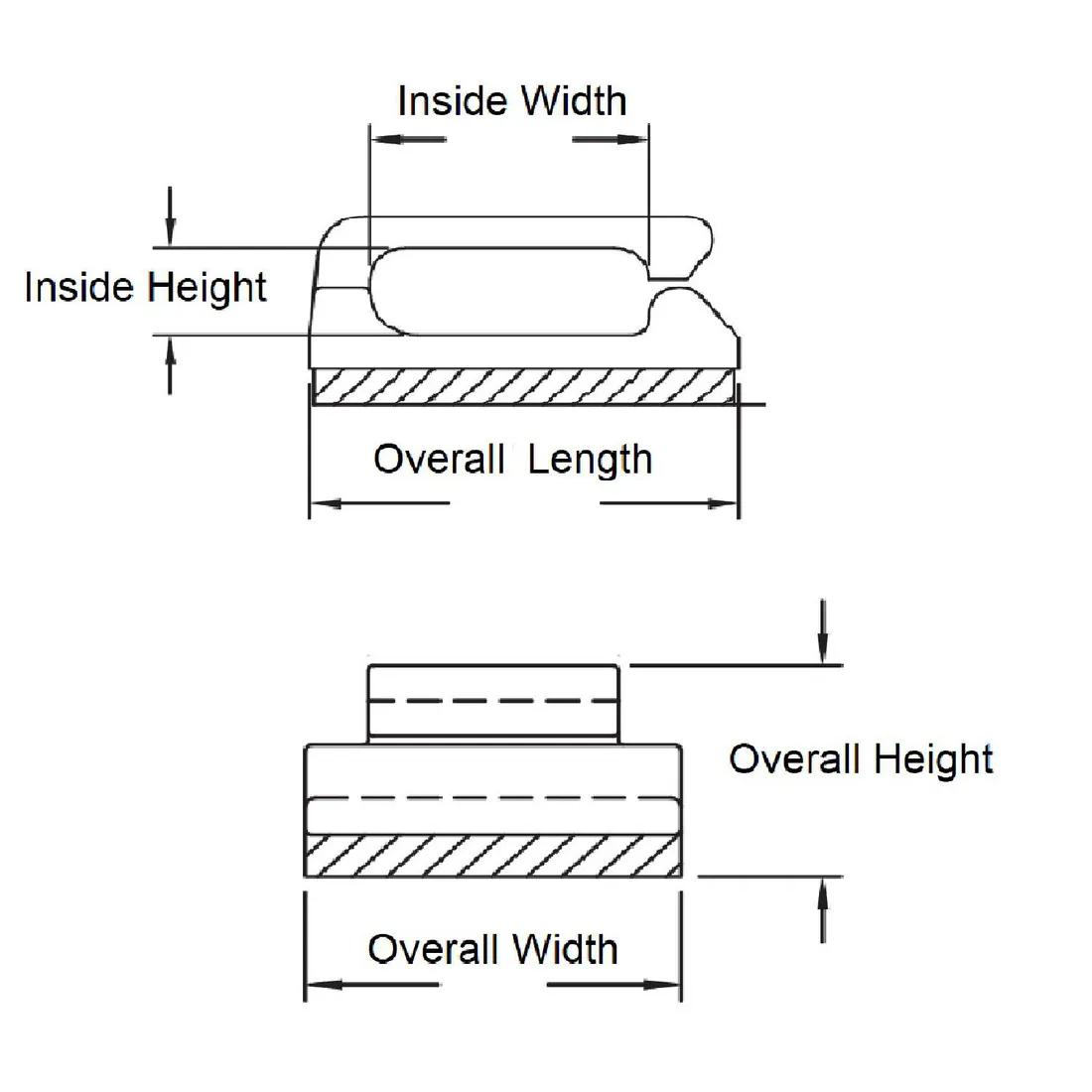

Item Code | Colour | Inside Height | Material | Overall Width | Overall Length | Adhesive Material | Clip Width | Inside Width | Material Flammability Standard | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSSEBE-1-19A | Natural | 2.5mm | Nylon 6/6 | 12.7mm | 12.7mm | Acrylic | 12.7mm | 8.1mm | UL94 V-0 | 6.4mm | 6.4mm | 6.4mm | |
MWSSEB-1-01A-RT | Natural | 2.5mm | Nylon 6/6 | 9.5mm | 12.7mm | Acrylic | 12.7mm | 8.1mm | UL94 V-2 | 6.4mm | 6.4mm | 6.4mm | |
MWSSEB-1-19A-RT | Natural | 2.5mm | Nylon 6/6 | 9.5mm | 12.7mm | Acrylic | 12.7mm | 8.1mm | UL94 V-0 | 6.4mm | 6.4mm | 6.4mm | |
MWSSEBE-1-01A | Natural | 2.5mm | Nylon 6/6 | 12.7mm | 12.7mm | Acrylic | 12.7mm | 8.1mm | UL94 V-2 | 6.4mm | 6.4mm | 6.4mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
MWSSEBE-1-19A
Colour
Natural
Inside Height
2.5mm
Material
Nylon 6/6
Overall Width
12.7mm
MWSSEB-1-01A-RT
Colour
Natural
Inside Height
2.5mm
Material
Nylon 6/6
Overall Width
9.5mm
MWSSEB-1-19A-RT
Colour
Natural
Inside Height
2.5mm
Material
Nylon 6/6
Overall Width
9.5mm
MWSSEBE-1-01A
Colour
Natural
Inside Height
2.5mm
Material
Nylon 6/6
Overall Width
12.7mm
