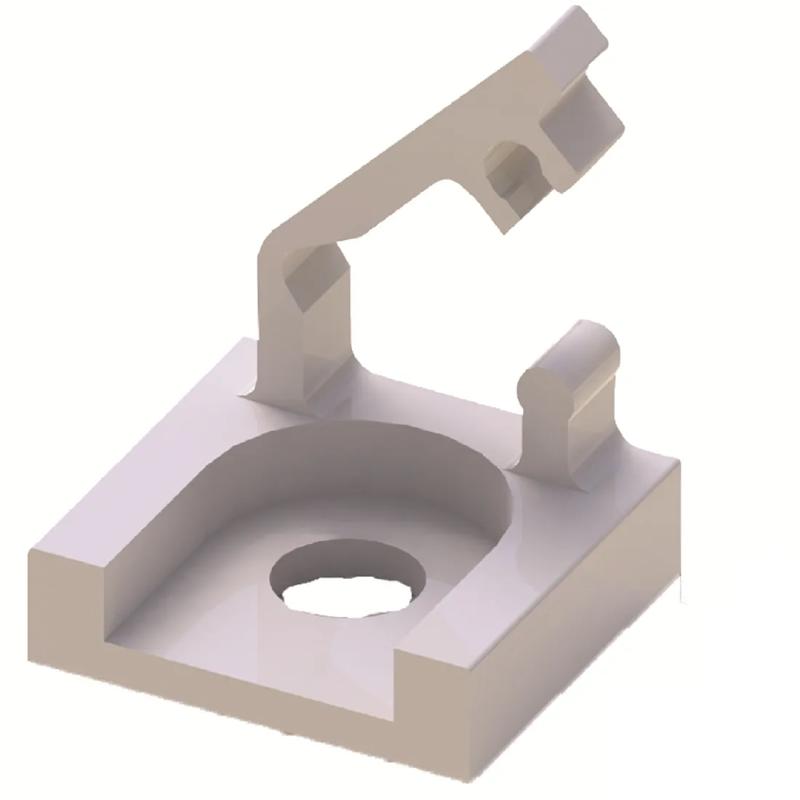

SRMWSLTB - Micro Wire Saddle Locking Top on Base
Micro saddle with locking top on a stable base, securing fine wires for organized installations.
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Colour | Overall Width | Overall Length | Mounting Hole Diameter | Adhesive Material | Rail Type | Base Height | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Saddle Type | Clip Length | Inside Height | Minimum Operating Temperature | Material | Length to Hole Center | Base Width | Minimum Inside Diameter | Minimum Inside Diameter | Base Length | Overall Height | Clip Height | Clip Width | Type | Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSLTB-1-19A-RT | Natural | 8.9mm | 9.8mm | 3.2mm | Acrylic | Vi mô | 2.6mm | 110°C | 4.8mm | UL94 V-0 | Micro | 10.2mm | 2.6mm | -40°C | Nylon 6/6 | 4.6mm | 8.9mm | 1.7mm | 2.6mm | 9.8mm | 7.1mm | 7.1mm | 6.4mm | Locking Top | - | |
MWSLTB-1-19 | Natural | 8.9mm | 9.8mm | 3.2mm | - | Vi mô | 2.6mm | 110°C | 4.8mm | UL94 V-0 | Micro | 10.2mm | 2.6mm | -40°C | Nylon 6/6 | 4.6mm | 8.9mm | 1.7mm | 2.6mm | 9.8mm | 7.1mm | 7.1mm | 6.4mm | Locking Top | #4;M3 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MWSLTB-1-19A-RT
Colour
Natural
Overall Width
8.9mm
Overall Length
9.8mm
Mounting Hole Diameter
3.2mm
MWSLTB-1-19
Colour
Natural
Overall Width
8.9mm
Overall Length
9.8mm
Mounting Hole Diameter
3.2mm
