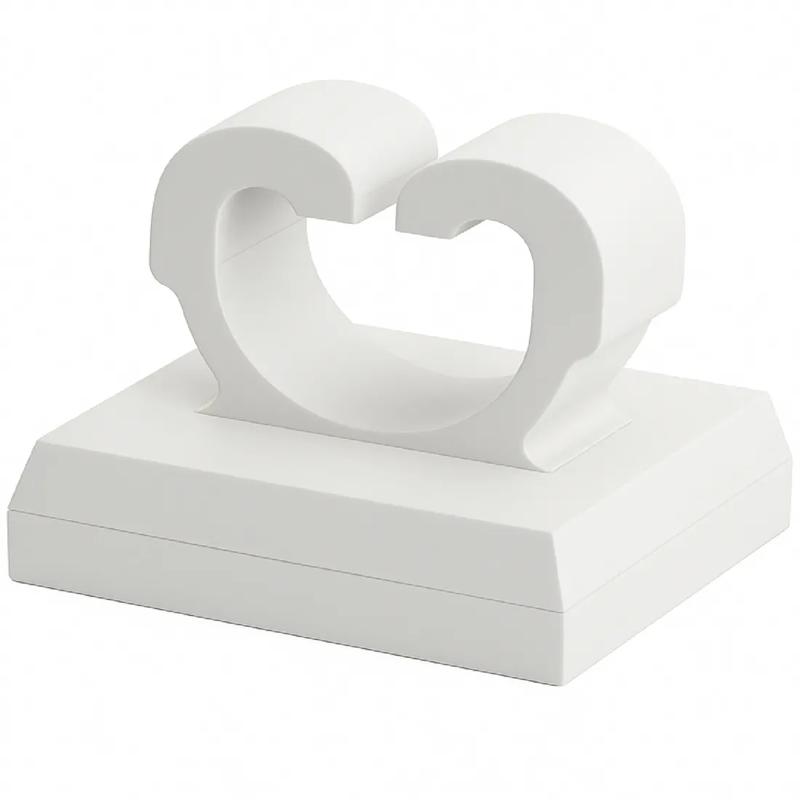

SRMWSJ - Micro Wire Saddle Locking Top Base
Micro saddle with locking top on adhesive base to securely capture and route fine wires.
Showing 1-1 of 1
Per page:1-1 of 1

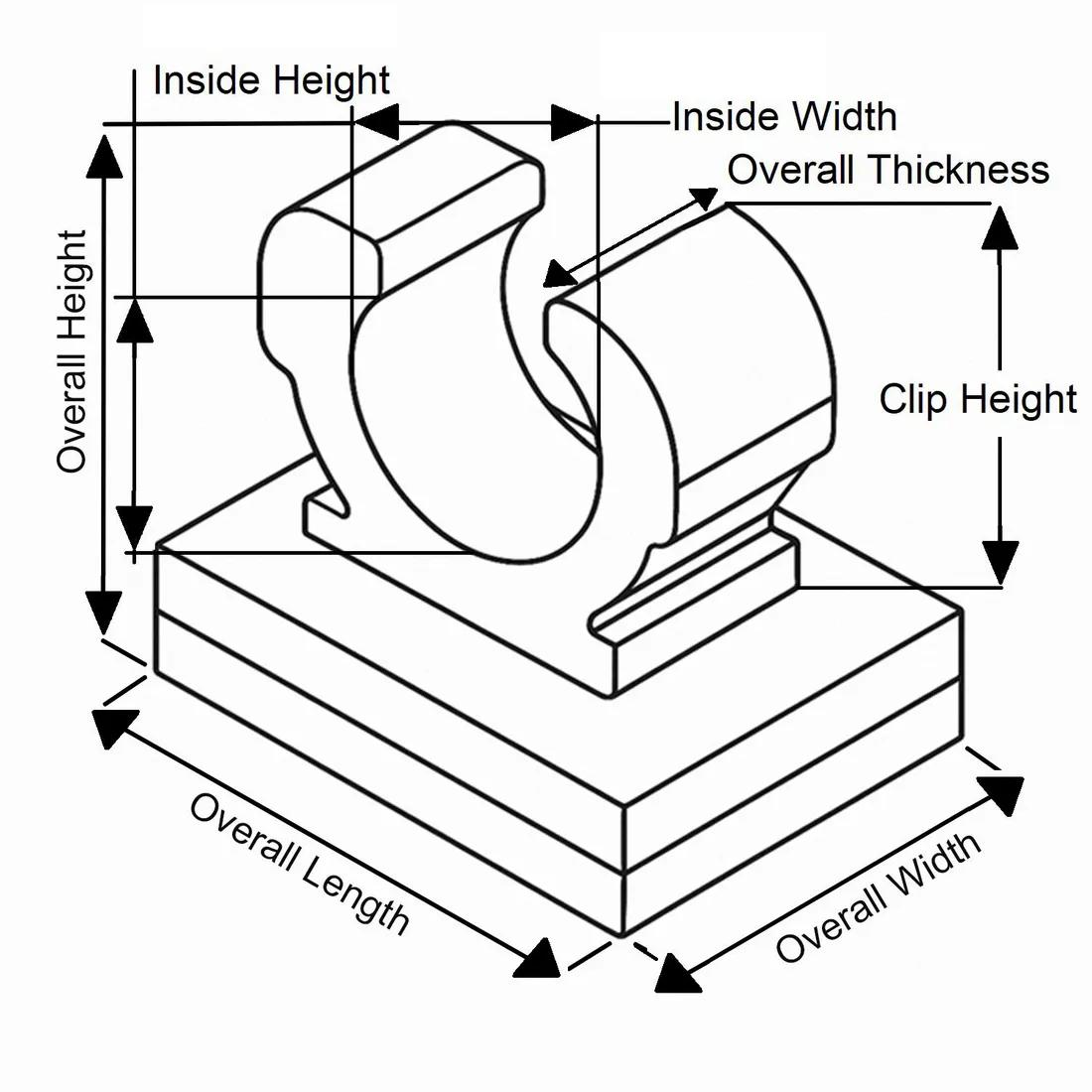

Item Code | Colour | Inside Height | Overall Width | Overall Length | Overall Thickness | Flange Thickness | Maximum Operating Temperature | Type | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSJ-1 | Natural | 3.1mm | 7.0mm | 7.0mm | 1.0mm | 1.0mm | 110°C | Micro | 4.0mm | UL94 V-0 | -40°C | Nylon 6/6 | 6.3mm | 5.3mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
MWSJ-1
Colour
Natural
Inside Height
3.1mm
Overall Width
7.0mm
Overall Length
7.0mm
