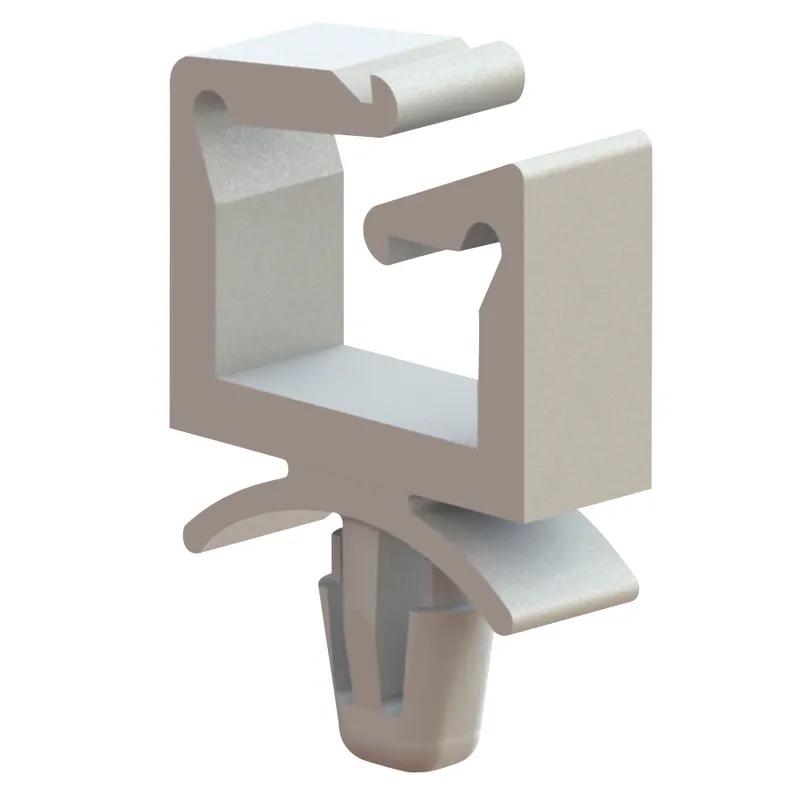

SRLWSA - Locking Wire Saddle, Arrowhead Mount
Wire saddle with arrowhead mount and locking feature to secure cables firmly into panels.
Showing 1-10 of 16
Per page:1-10 of 16

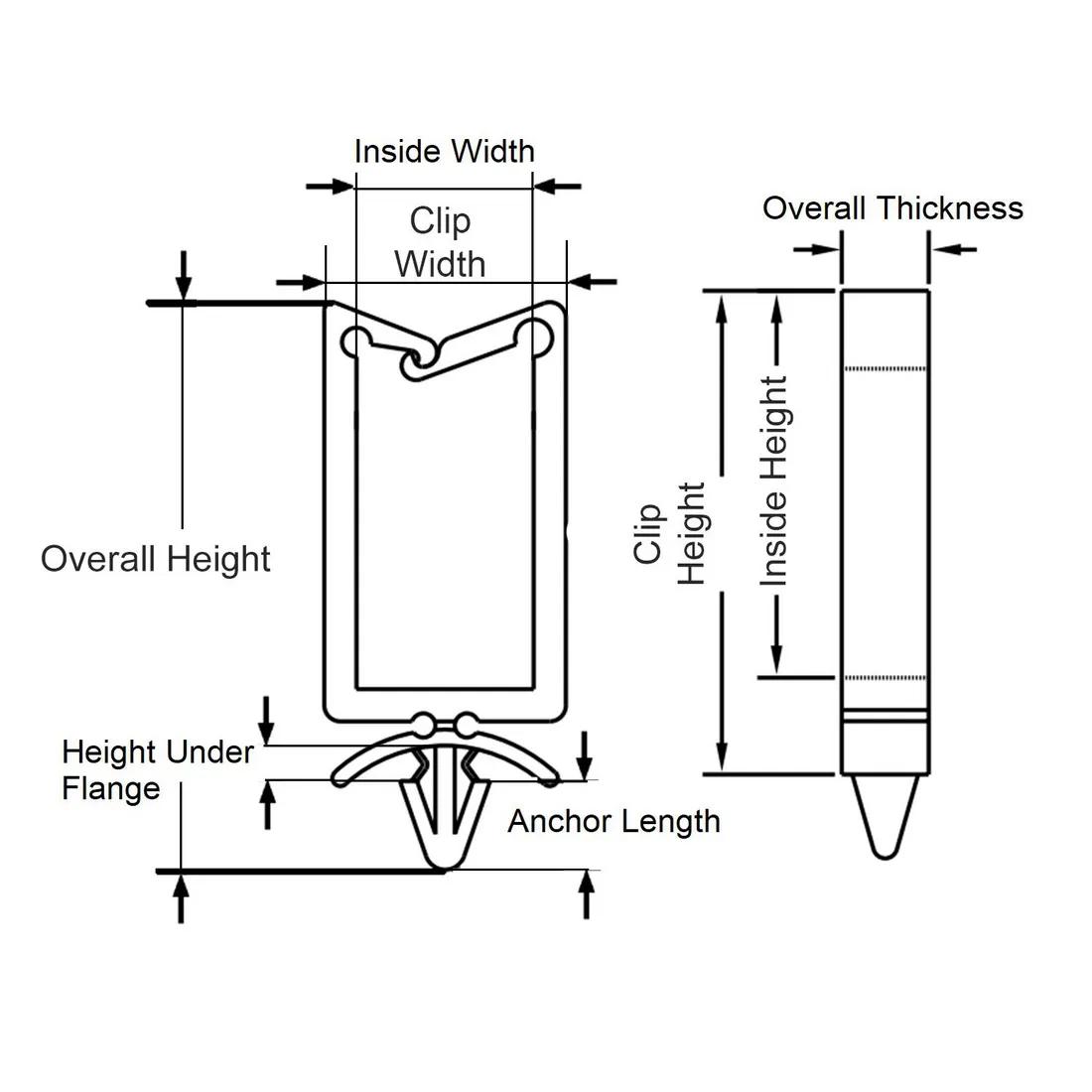

Item Code | Colour | Inside Height | Material | Anchor Length | Mounting Hole Diameter | Panel Thickness | Clip Height | Inside Width | Material Flammability Standard | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWS-A-2-19 | Natural | 8.4mm | Nylon 6/6 | 5.6mm | 4.75mm | 1.6mm | 18.0mm | 11.1mm | UL94 V-0 | 15.4mm | 2 | |
LWS-A-1-01 | Natural | 3.6mm | Nylon 6/6 | 5.6mm | 4.75mm | 1.6mm | 13.2mm | 11.1mm | UL94 V-2 | 15.4mm | 2 | |
LWS-A-2-2-01 | Natural | 8.4mm | Nylon 6/6 | 5.6mm | 4.75mm | 3.2mm | 18.0mm | 11.1mm | UL94 V-2 | 15.4mm | 2 | |
LWS-A-1-19 | Natural | 3.6mm | Nylon 6/6 | 5.6mm | 4.75mm | 1.6mm | 13.2mm | 11.1mm | UL94 V-0 | 15.4mm | 2 | |
LWS-A-2-01 | Natural | 8.4mm | Nylon 6/6 | 5.6mm | 4.75mm | 1.6mm | 18.0mm | 11.1mm | UL94 V-2 | 15.4mm | 2 | |
LWS-A-2-1-01 | Natural | 3.6mm | Nylon 6/6 | 5.6mm | 4.75mm | 3.2mm | 13.2mm | 11.1mm | UL94 V-2 | 15.4mm | 2 | |
LWS-A-2-4-19 | Natural | 25.4mm | Nylon 6/6 | 5.6mm | 4.75mm | 3.2mm | 35.0mm | 11.1mm | UL94 V-0 | 15.4mm | 2 | |
LWS-A-2-3-01 | Natural | 17.5mm | Nylon 6/6 | 5.6mm | 4.75mm | 3.2mm | 27.2mm | 11.1mm | UL94 V-2 | 15.4mm | 2 | |
LWS-A-2-1-19 | Natural | 3.6mm | Nylon 6/6 | 5.6mm | 4.75mm | 3.2mm | 13.2mm | 11.1mm | UL94 V-0 | 15.4mm | 2 |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
LWS-A-2-19
Colour
Natural
Inside Height
8.4mm
Material
Nylon 6/6
Anchor Length
5.6mm
LWS-A-1-01
Colour
Natural
Inside Height
3.6mm
Material
Nylon 6/6
Anchor Length
5.6mm
LWS-A-2-2-01
Colour
Natural
Inside Height
8.4mm
Material
Nylon 6/6
Anchor Length
5.6mm
LWS-A-1-19
Colour
Natural
Inside Height
3.6mm
Material
Nylon 6/6
Anchor Length
5.6mm
Per page:
1–5 of 17
