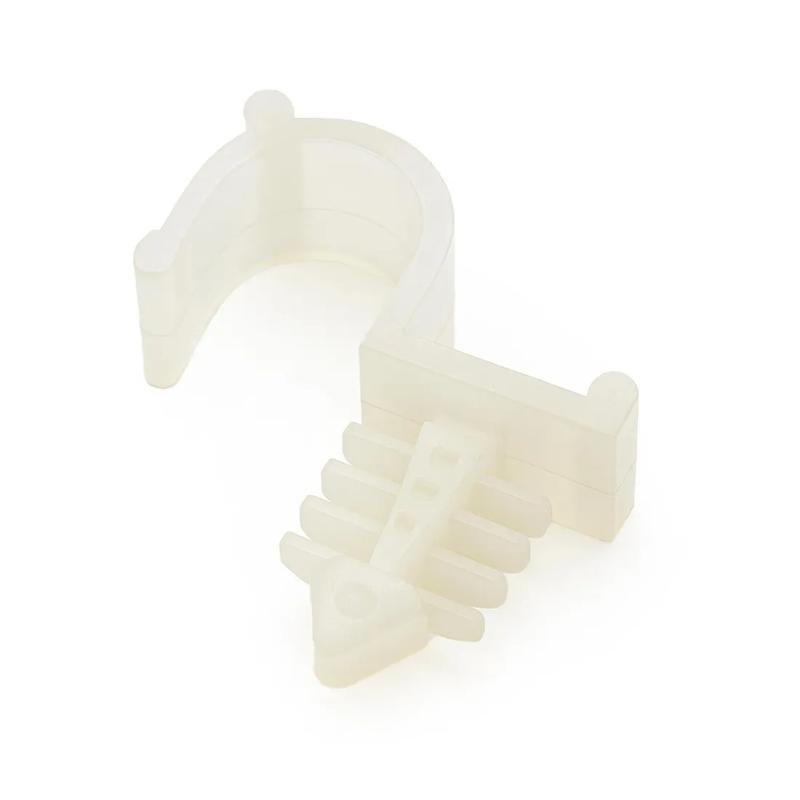

SRHURCBH - Routing Clips Blind Hole Mount
Routing clips designed to mount into blind panel holes, providing cable organization without surface damage.
Showing 1-2 of 2
Per page:1-2 of 2

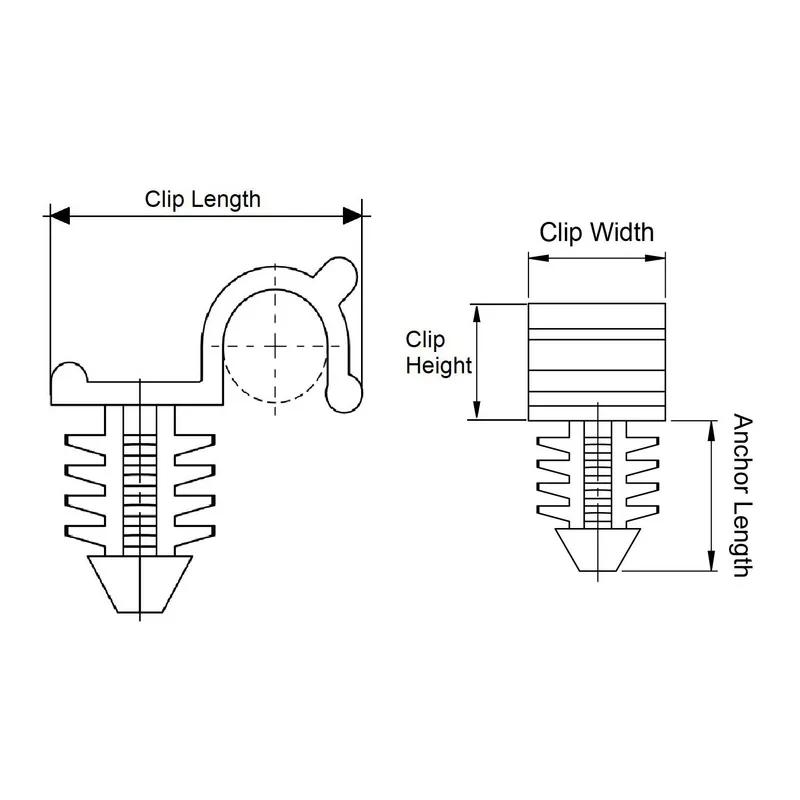

Item Code | Material Flammability Standard | Colour | Clip Length | Mounting Hole Diameter | Cable Diameter | Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Overall Length | Anchor Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HURCBH-3-01 | UL94 V-2 | Natural | 14.2mm | 6.35mm | 4.8mm | 6.35mm | 6.1mm | 85°C | 7.6mm | -40°C | Nylon 6/6 | 14.2mm | 8.4mm | |
HURCBH-4-01 | UL94 V-2 | Natural | 15.7mm | 6.35mm | 6.4mm | 6.35mm | 7.6mm | 85°C | 7.6mm | -40°C | Nylon 6/6 | 15.7mm | 8.4mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
HURCBH-3-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Clip Length
14.2mm
Mounting Hole Diameter
6.35mm
HURCBH-4-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Clip Length
15.7mm
Mounting Hole Diameter
6.35mm
