SRHUC - Half U-Clip with Adhesive Base
Half U-shaped clip with adhesive base for mounting cables quickly without drilling.
Showing 1-3 of 3
Per page:1-3 of 3

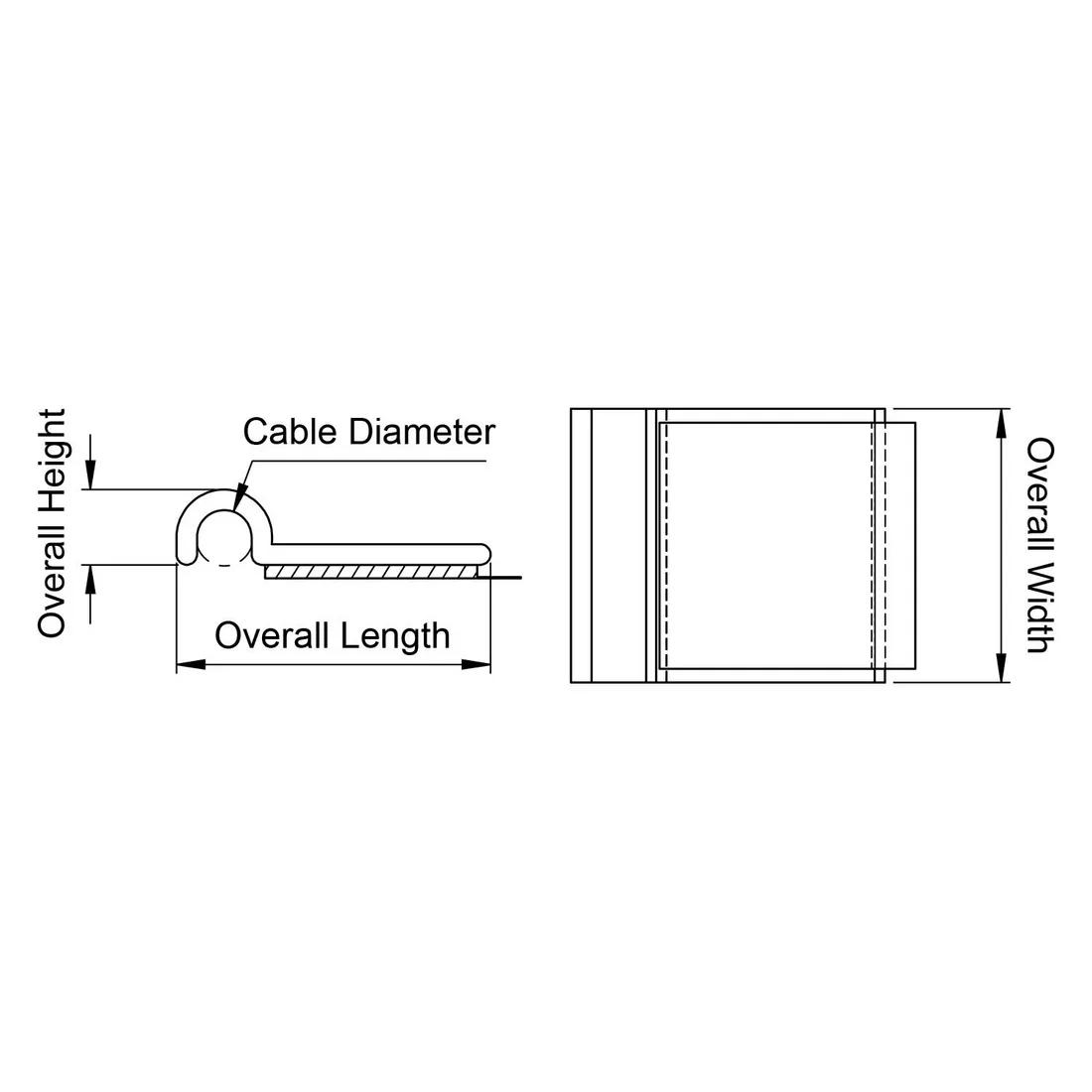

Item Code | Material Flammability Standard | Colour | Overall Width | Overall Length | Adhesive Material | Cable Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
HUC-4-RT | UL94 V-0 | Black | 15.9mm | 21.4mm | Acrylic | 6.4mm | 7.5mm | 50°C | 0°C | PVC | 11.2mm | |
HUC-2-RT | UL94 V-0 | Black | 15.9mm | 18.3mm | Acrylic | 3.2mm | 4.4mm | 50°C | 0°C | PVC | 11.2mm | |
HUC-6-RT | UL94 V-0 | Black | 15.9mm | 24.6mm | Acrylic | 9.5mm | 10.7mm | - | - | PVC | 11.2mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
HUC-4-RT
Material Flammability Standard
UL94 V-0
Colour
Black
Overall Width
15.9mm
Overall Length
21.4mm
HUC-2-RT
Material Flammability Standard
UL94 V-0
Colour
Black
Overall Width
15.9mm
Overall Length
18.3mm
HUC-6-RT
Material Flammability Standard
UL94 V-0
Colour
Black
Material
PVC
Overall Width
15.9mm
