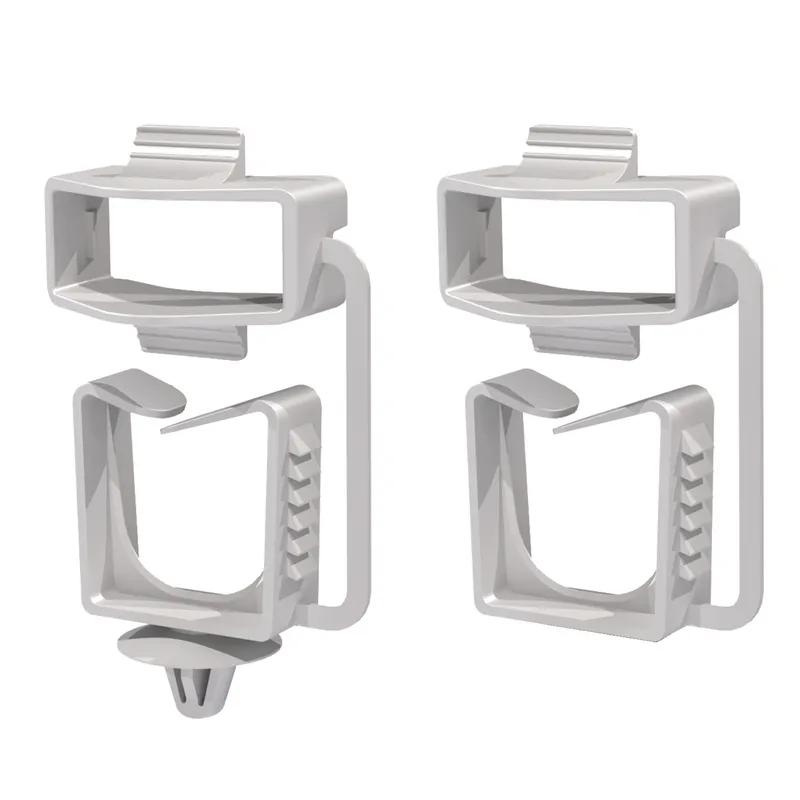

SRHCS - Hinged Cable Saddle
Hinged saddle allowing easy opening for cable insertion, securing bundles quickly without threading.
Showing 1-3 of 3
Per page:1-3 of 3

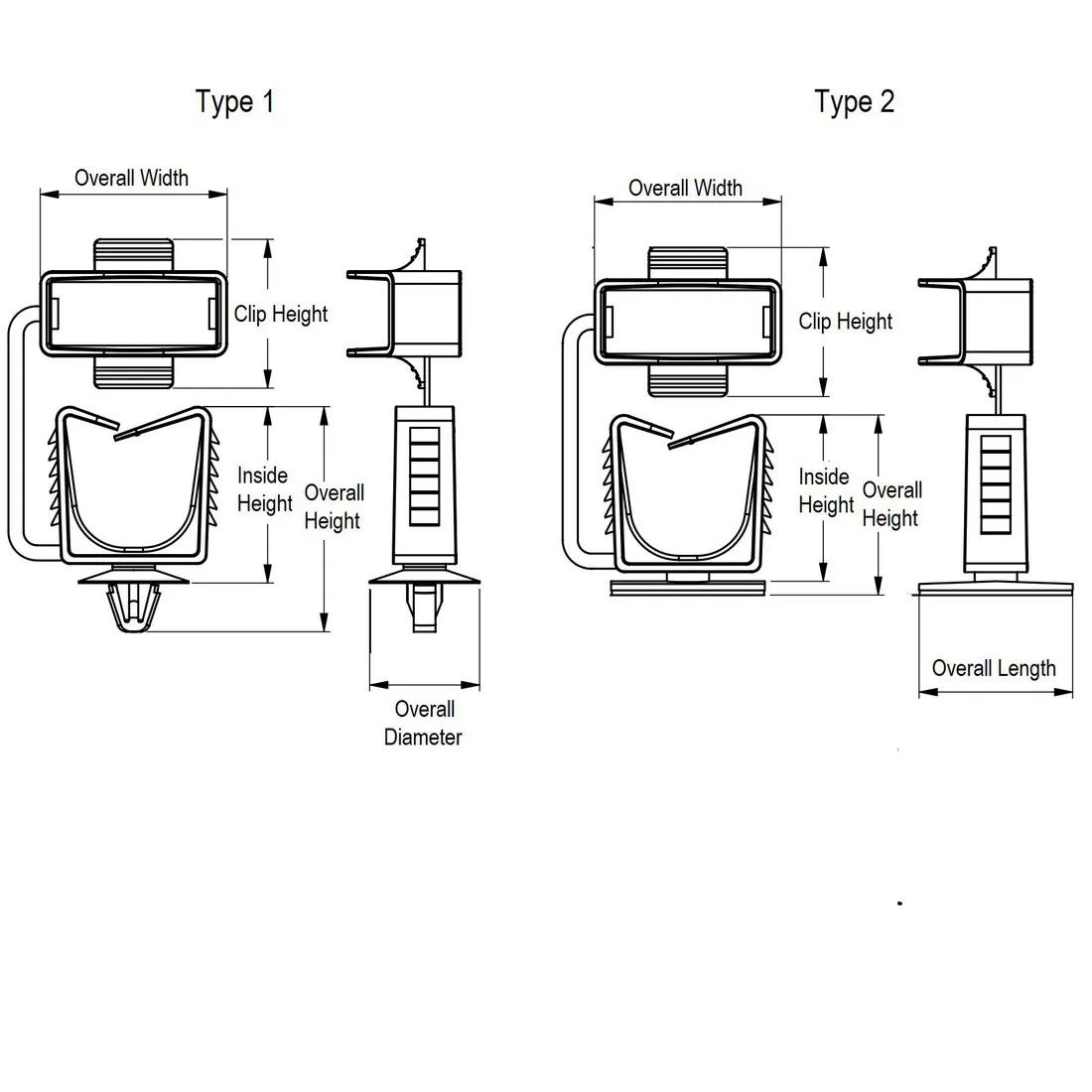

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Inside Height | Overall Length | Base Width | Adhesive Material | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Base Length | Overall Height | Clip Height | Maximum Hole Diameter | Maximum Panel Thickness | Minimum Hole Diameter | Overall Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HCS3-01A4-RT | UL94 V-2 | 16.0mm | Natural | 27.5mm | 25.4mm | 25.4mm | Acrylic | -40°C | Hinged | 85°C | Nylon 6/6 | 3.0mm | 31.0mm | 25.4mm | 29.5mm | 27.5mm | - | - | - | - | - | |
HCS1-01 | UL94 V-2 | 16.0mm | Natural | 29.0mm | - | - | - | -40°C | Hinged | 85°C | Nylon 6/6 | 3.0mm | 31.0mm | - | 34.0mm | 29.0mm | 4.8mm | 1.6mm | 4.0mm | 16.0mm | 0.4mm | |
HCS2-01 | UL94 V-2 | 16.0mm | Natural | 28.7mm | - | - | - | -40°C | Hinged | 85°C | Nylon 6/6 | 3.0mm | 31.0mm | - | 36.8mm | 28.7mm | 6.8mm | 2.5mm | 6.0mm | 18.1mm | 0.6mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
HCS3-01A4-RT
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
16.0mm
Colour
Natural
Inside Height
27.5mm
HCS1-01
Maximum Cable Bundle Diameter
16.0mm
Colour
Natural
Inside Height
29.0mm
Maximum Hole Diameter
4.8mm
HCS2-01
Maximum Cable Bundle Diameter
16.0mm
Colour
Natural
Inside Height
28.7mm
Maximum Hole Diameter
6.8mm
