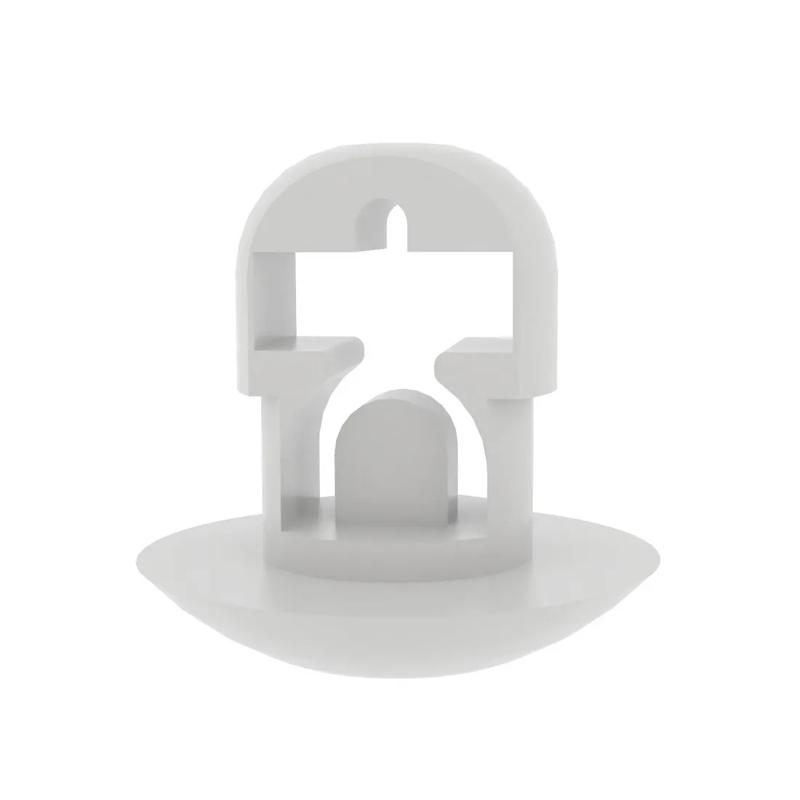

SRFTH9 - Cable Tie Holder
Standard cable tie holder used to anchor and support cable ties for organized wire routing.
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Material Flammability Standard | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Flange Thickness | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Diameter | Panel Thickness | Height Under Flange | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-9-01-M | UL94 V-2 | Natural | 8.3mm | 3.18mm | 6.35mm | 2.0mm | 85°C | -40°C | Nylon 6/6 | 10.7mm | 3.18mm | 8.3mm | 10.3mm | 4.8mm | 10.7mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-9-01-M
Material Flammability Standard
UL94 V-2
Colour
Natural
Anchor Length
8.3mm
Maximum Panel Thickness
3.18mm
