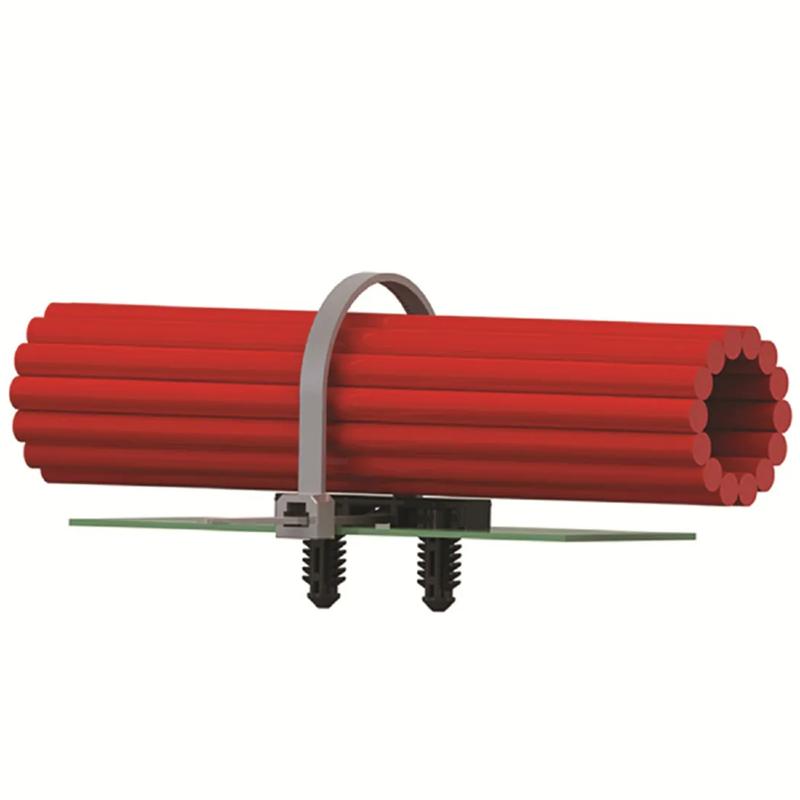

SRFTH42 - Heavy Duty Cable Tie Holder
Reinforced cable tie holder designed for heavy-duty applications, offering robust support for larger cable bundles.
Showing 1-3 of 3
Per page:1-3 of 3

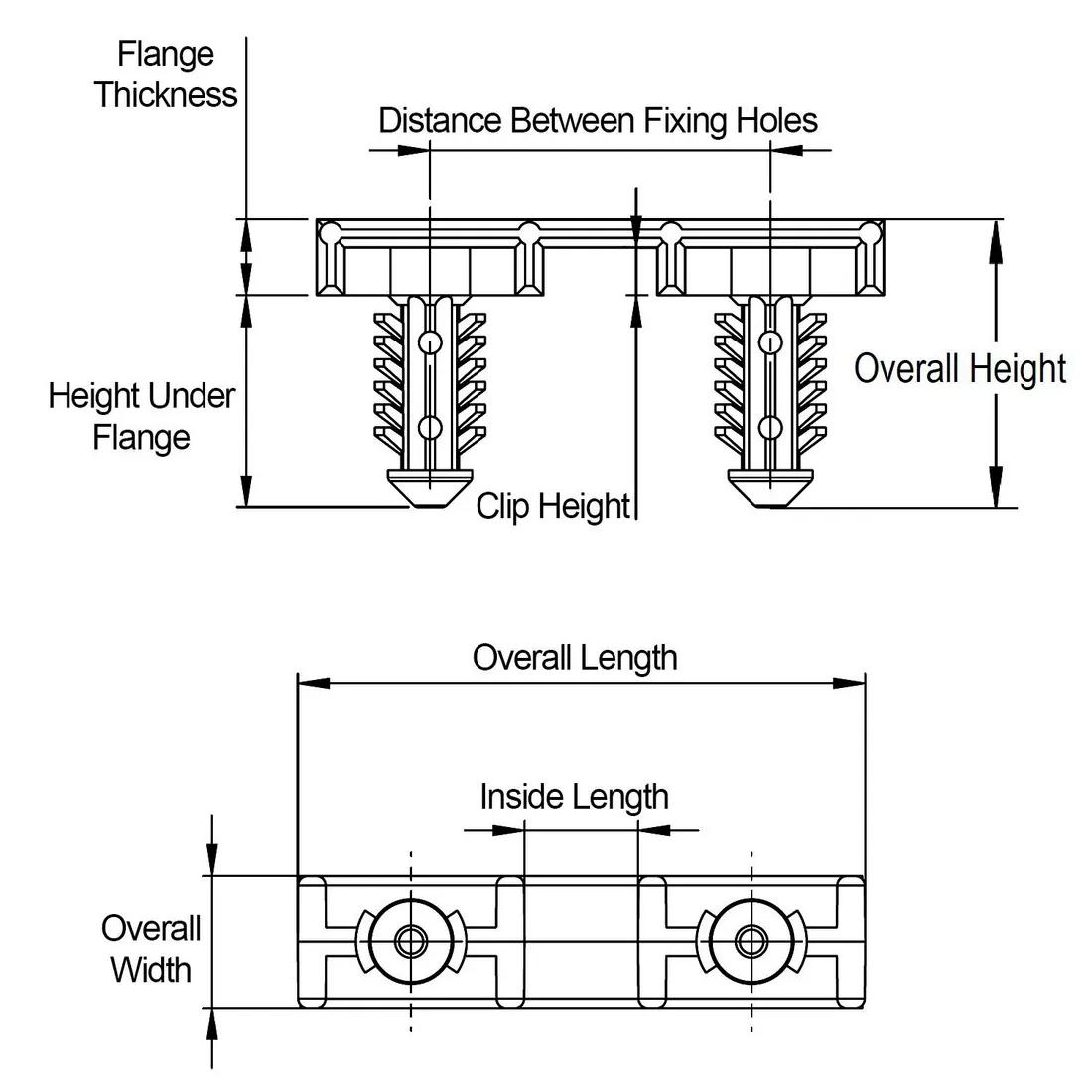

Item Code | Material Flammability Standard | Colour | Mounting Hole Diameter | Inside Length | Flange Thickness | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Overall Width | Distance Between Fixing Holes | Overall Length | Anchor Length | Panel Thickness | Height Under Flange | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-42-3-01 | UL94 V-2 | Natural | 4.7mm | 6.0mm | 4.0mm | 85°C | 6.0mm | -40°C | Nylon 6/6 | 25.0mm | 18.0mm | 30.0mm | 11.0mm | 0.8mm | 11.0mm | 15.0mm | 5.8mm | 2.5mm | |
FTH-42-2-01 | UL94 V-2 | Natural | 4.7mm | 6.0mm | 4.0mm | 85°C | 6.0mm | -40°C | Nylon 6/6 | 15.0mm | 18.0mm | 30.0mm | 11.0mm | 0.8mm | 11.0mm | 15.0mm | 5.8mm | 2.5mm | |
FTH-42-1-01 | UL94 V-2 | Natural | 4.7mm | 6.0mm | 4.0mm | 85°C | 6.0mm | -40°C | Nylon 6/6 | 7.0mm | 18.0mm | 30.0mm | 11.0mm | 0.8mm | 11.0mm | 15.0mm | 5.8mm | 2.5mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
FTH-42-3-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Mounting Hole Diameter
4.7mm
Inside Length
6.0mm
FTH-42-2-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Mounting Hole Diameter
4.7mm
Inside Length
6.0mm
FTH-42-1-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Mounting Hole Diameter
4.7mm
Inside Length
6.0mm
