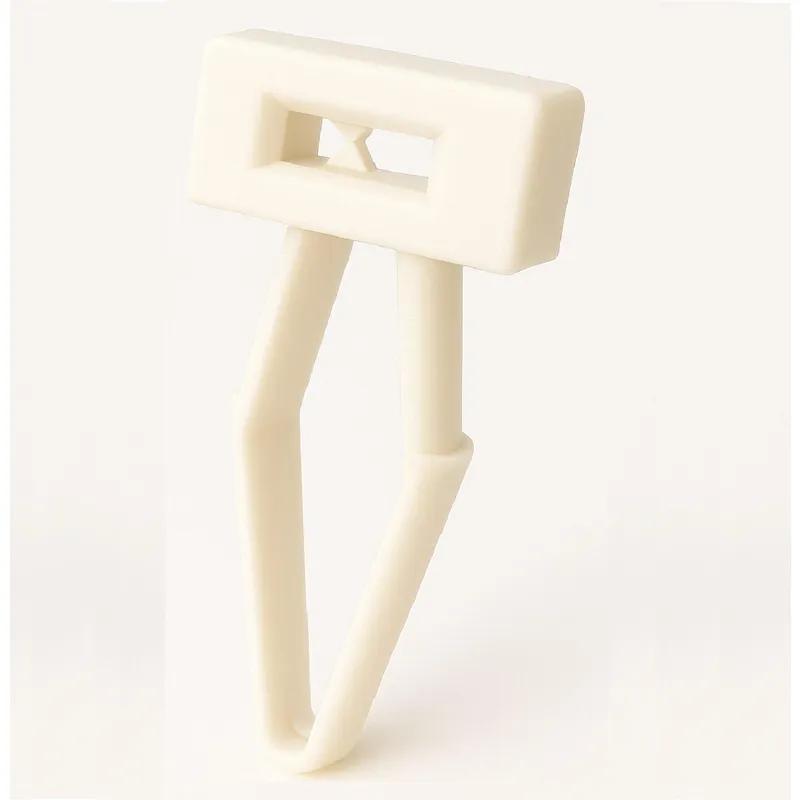

SRFTH39 - Cable Tie Holder
Standard cable tie holder used to anchor and support cable ties for organized wire routing.
Showing 1-2 of 2
Per page:1-2 of 2

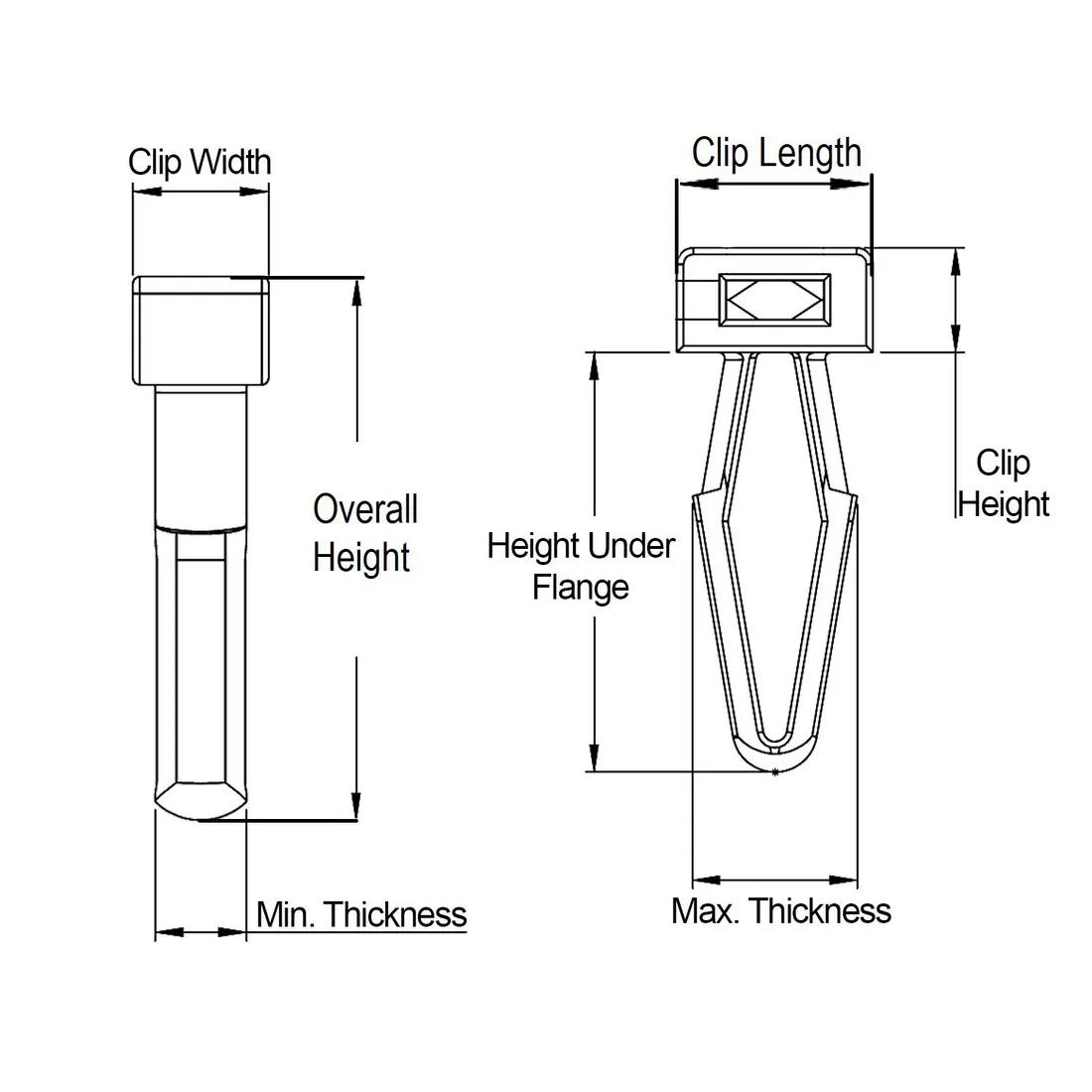

Item Code | Material Flammability Standard | Colour | Material | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Clip Height | Minimum Panel Thickness | Clip Width | Type | Clip Length | Overall Width | Overall Length | Height Under Flange | Maximum Thickness | Maximum Operating Temperature | Minimum Thickness | Minimum Operating Temperature | Overall Height | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-39-1-01 | UL94 V-2 | Natural | Nylon 6/6 | 12.9mm | 4.5mm | 3.2mm | 3.2mm | 1.0mm | 6.0mm | 3 | - | - | - | - | - | - | - | - | - | - | |
FTH-39-1-19 | UL94 V-2 | Natural | Nylon 6/6 | - | 4.5mm | 3.2mm | 3.2mm | 1.0mm | 4.0mm | - | 6.0mm | 4.0mm | 6.0mm | 12.9mm | 5.0mm | 110°C | 2.7mm | -40°C | 16.1mm | 2.8mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-39-1-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Anchor Length
12.9mm
FTH-39-1-19
Colour
Natural
Clip Length
6.0mm
Overall Width
4.0mm
Overall Length
6.0mm
