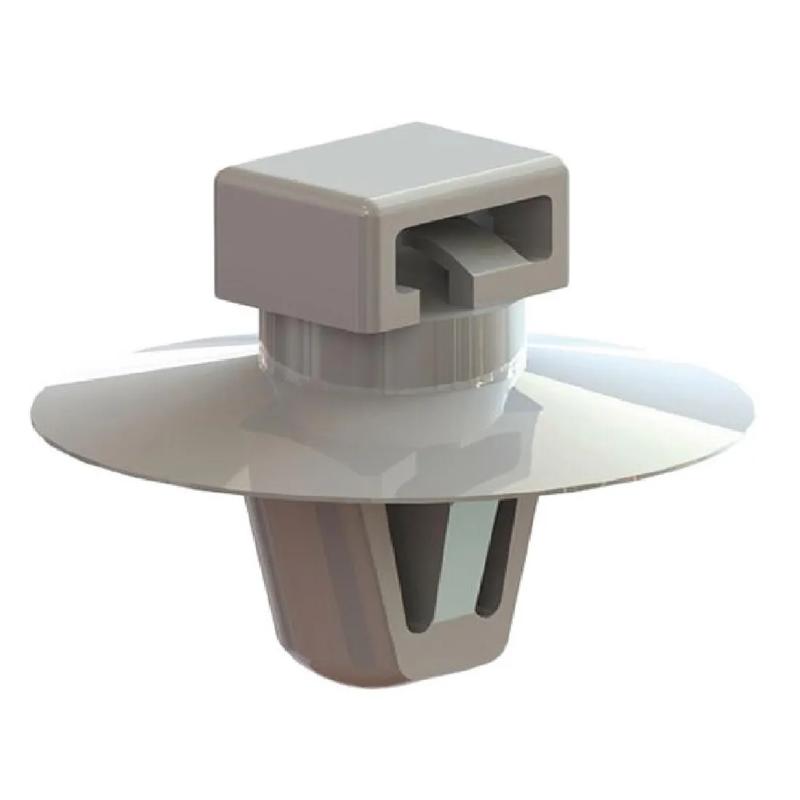

SRFTH33 - Cupped Based Cable Tie Holder
Cupped-base holder supporting cable ties, designed to keep wires elevated and neatly managed.
Showing 1-1 of 1
Per page:1-1 of 1

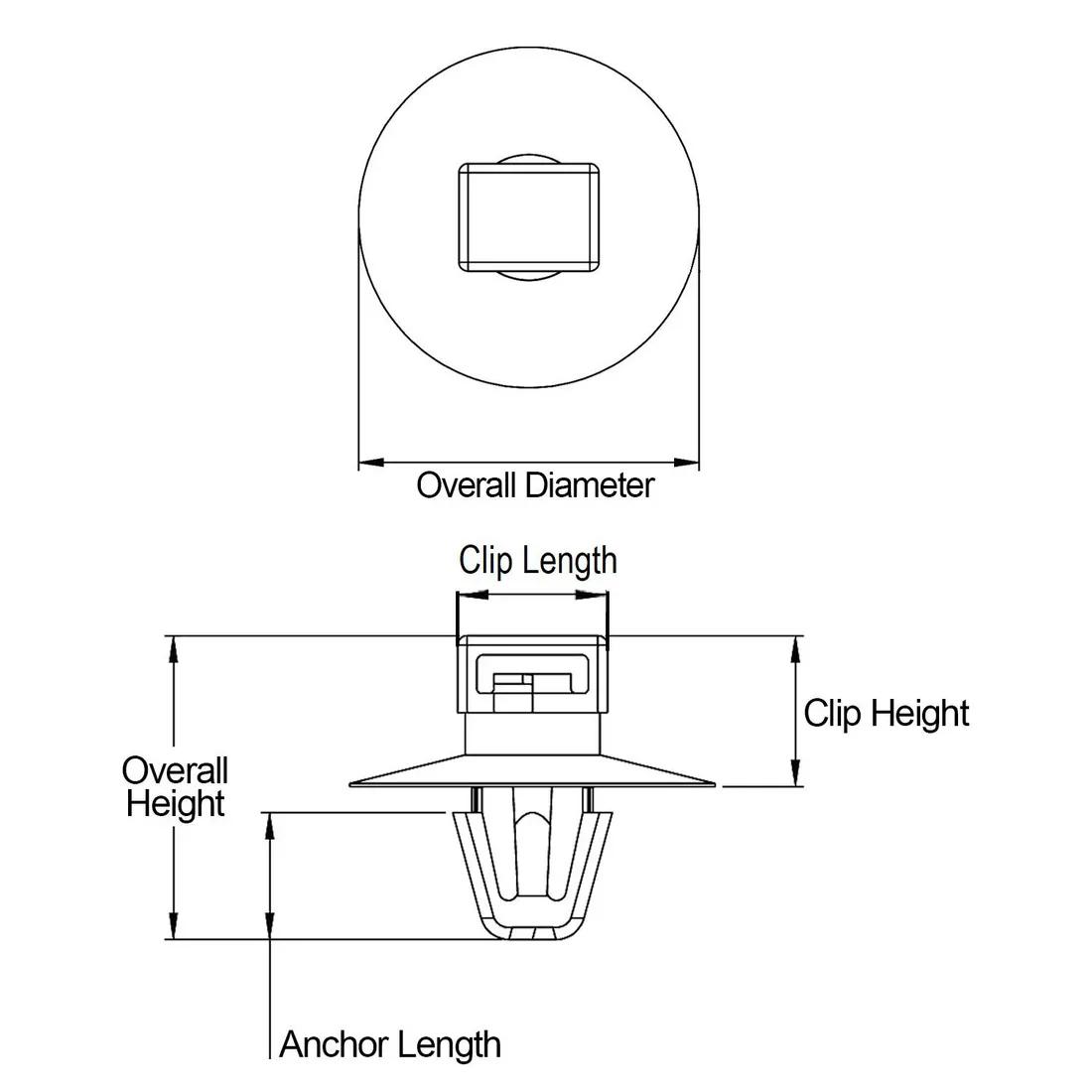

Item Code | Material Flammability Standard | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Material | Overall Diameter | Overall Height | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-33-01 | UL94 V-2 | Natural | 6.6mm | 1.6mm | 6.4mm | Nylon 6/6 | 19.0mm | 15.8mm | 7.8mm | 7.8mm | 5 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-33-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Anchor Length
6.6mm
Maximum Panel Thickness
1.6mm
