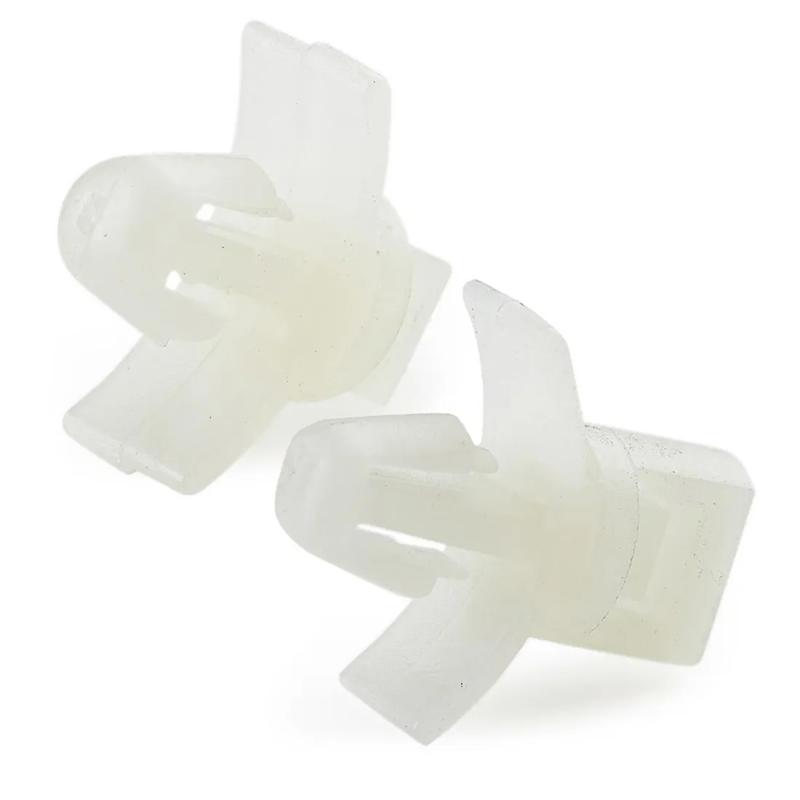

SRFTH30 - Push Mount Cable Tie Holder
Cable tie holder with push-mount stem for quick, secure insertion into pre-drilled panel holes.
Showing 1-2 of 2
Per page:1-2 of 2

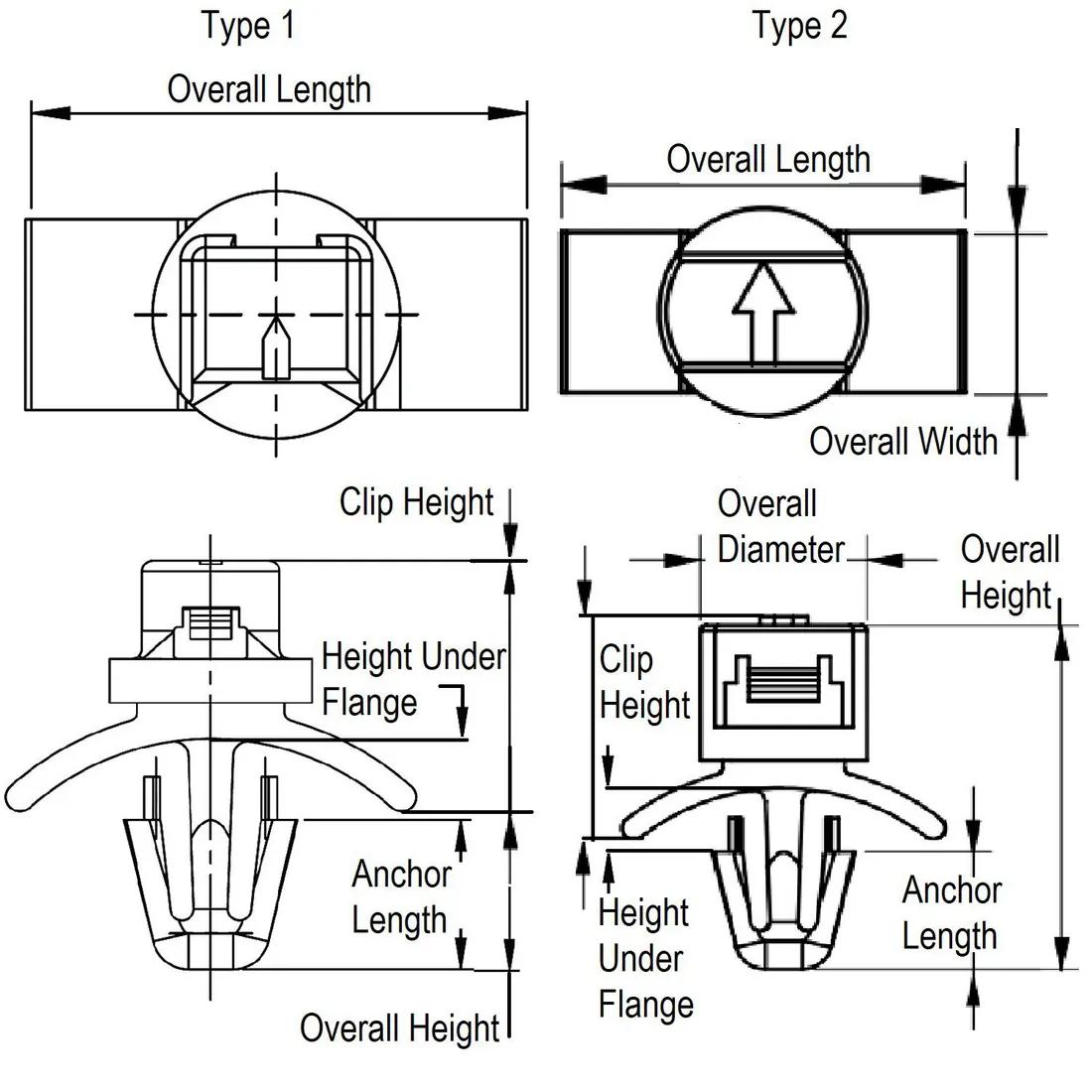

Item Code | Material Flammability Standard | Colour | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Height Under Flange | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Overall Diameter | Overall Length | Anchor Length | Minimum Panel Thickness | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-30-1-01 | UL94 V-2 | Natural | 5.5mm | 2.0mm | 4.76mm | 2.8mm | 85°C | 2 | -40°C | Nylon 6/6 | 7.1mm | 13.8mm | 5.3mm | 0.8mm | 15.5mm | 2.0mm | 7.4mm | |
FTH-30-01 | UL94 V-2 | Natural | - | 2.0mm | 4.76mm | 2.8mm | - | 1 | - | Nylon 6/6 | 7.1mm | 14.4mm | 5.6mm | 0.8mm | 14.7mm | 2.0mm | 6.3mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-30-1-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Overall Width
5.5mm
Maximum Panel Thickness
2.0mm
FTH-30-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Maximum Panel Thickness
2.0mm
Mounting Hole Diameter
4.76mm
