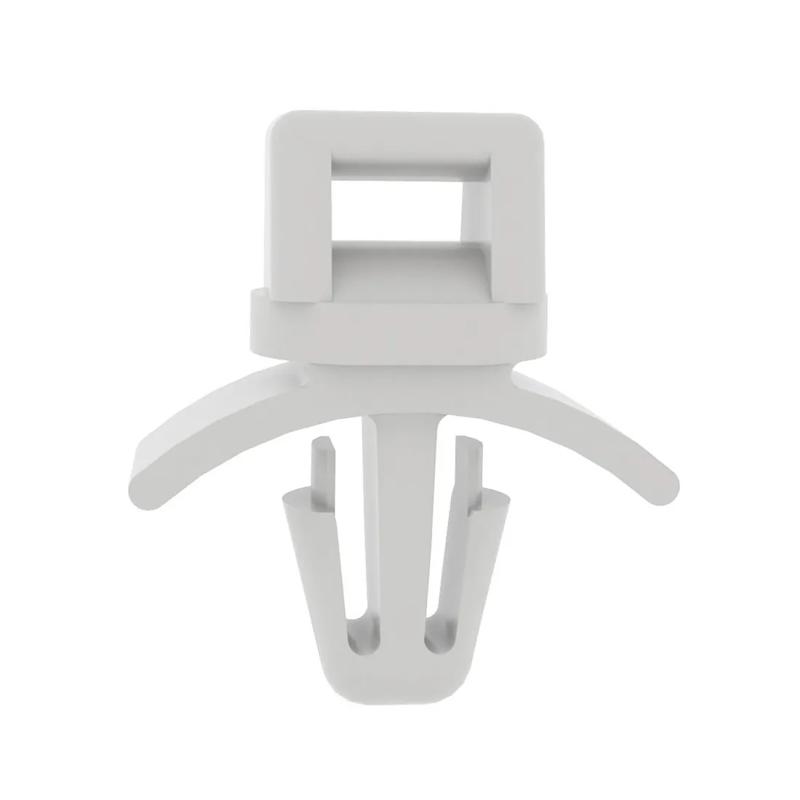

SRFTH3 - Push Mount Cable Tie Holder
Cable tie holder with push-mount stem for quick, secure insertion into pre-drilled panel holes.
Showing 1-1 of 1
Per page:1-1 of 1

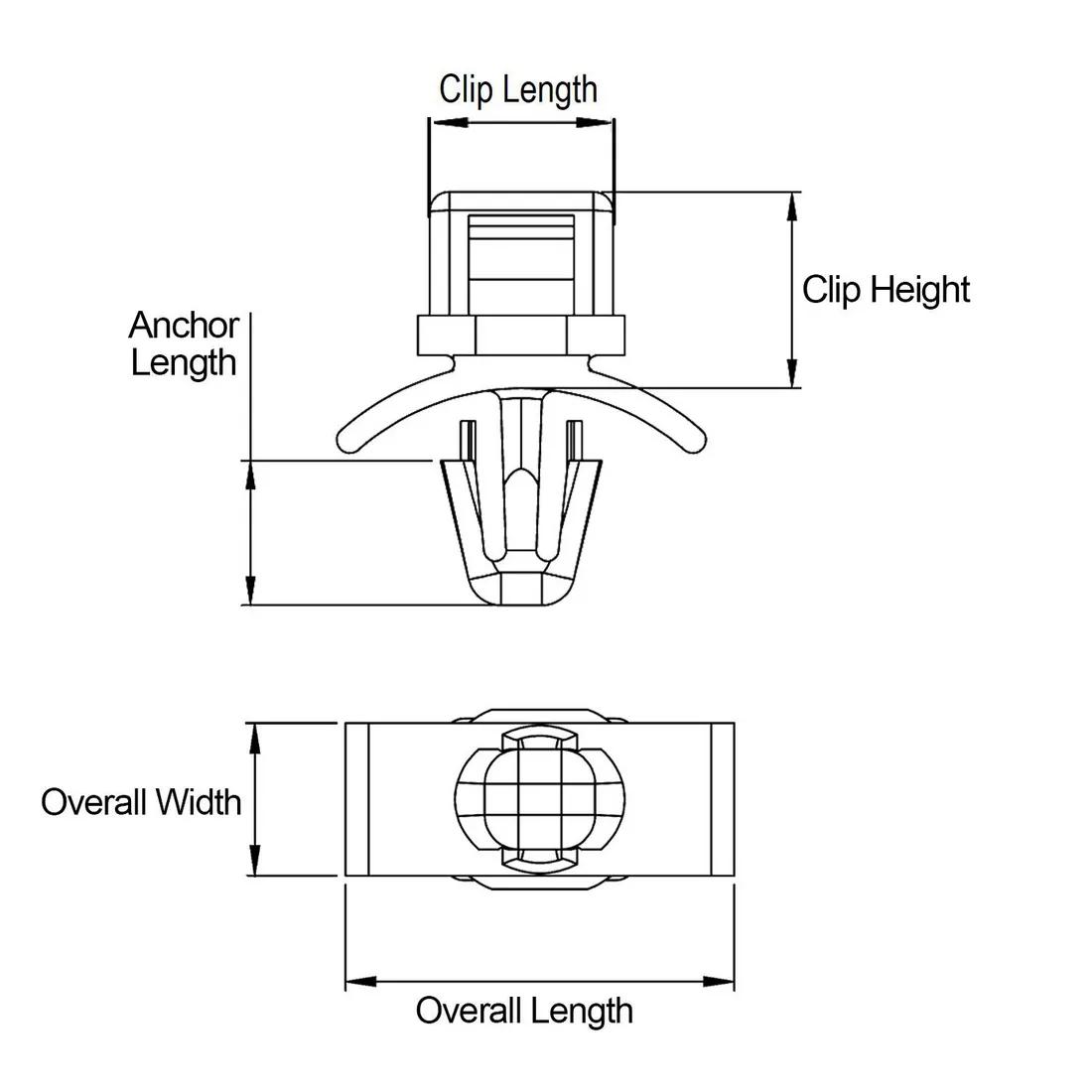

Item Code | Material Flammability Standard | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Clip Height | Material | Overall Diameter | Minimum Panel Thickness | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-3-01-M | UL94 V-2 | Natural | 5.6mm | 2.0mm | 4.8mm | 7.6mm | Nylon 6/6 | 14.3mm | 0.8mm | 7.1mm | 2 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-3-01-M
Material Flammability Standard
UL94 V-2
Colour
Natural
Anchor Length
5.6mm
Maximum Panel Thickness
2.0mm
