SRFTH29 - Cupped Base Cable Tie Holder
Cable tie holder with cupped base to elevate and protect wire bundles from surface abrasion.
Showing 1-1 of 1
Per page:1-1 of 1

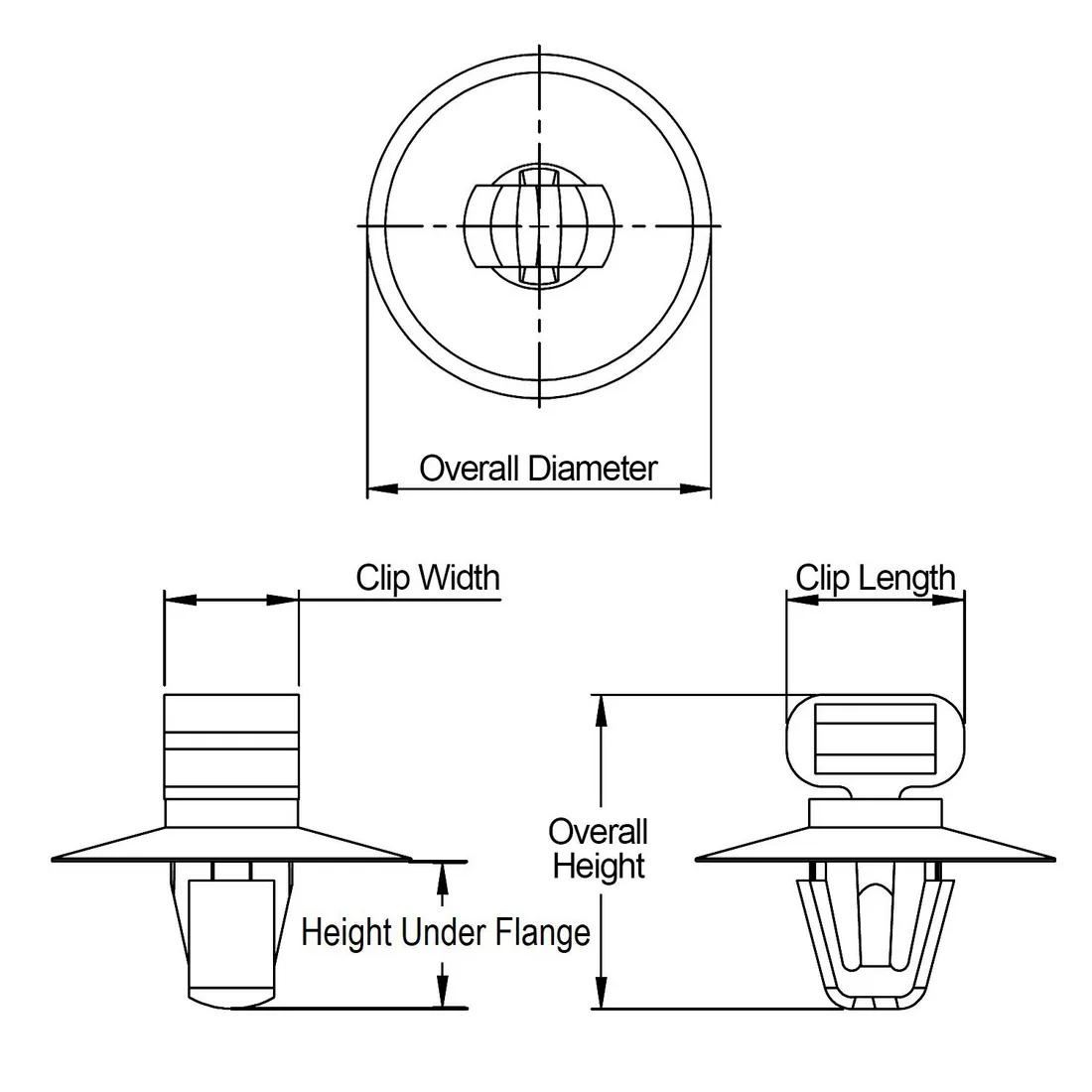

Item Code | Material Flammability Standard | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Overall Height | Material | Overall Diameter | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-29-01 | UL94 V-2 | Natural | 6.8mm | 1.6mm | 6.4mm | 16.6mm | Nylon 6/6 | 19.0mm | 9.4mm | 4 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-29-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Anchor Length
6.8mm
Maximum Panel Thickness
1.6mm
