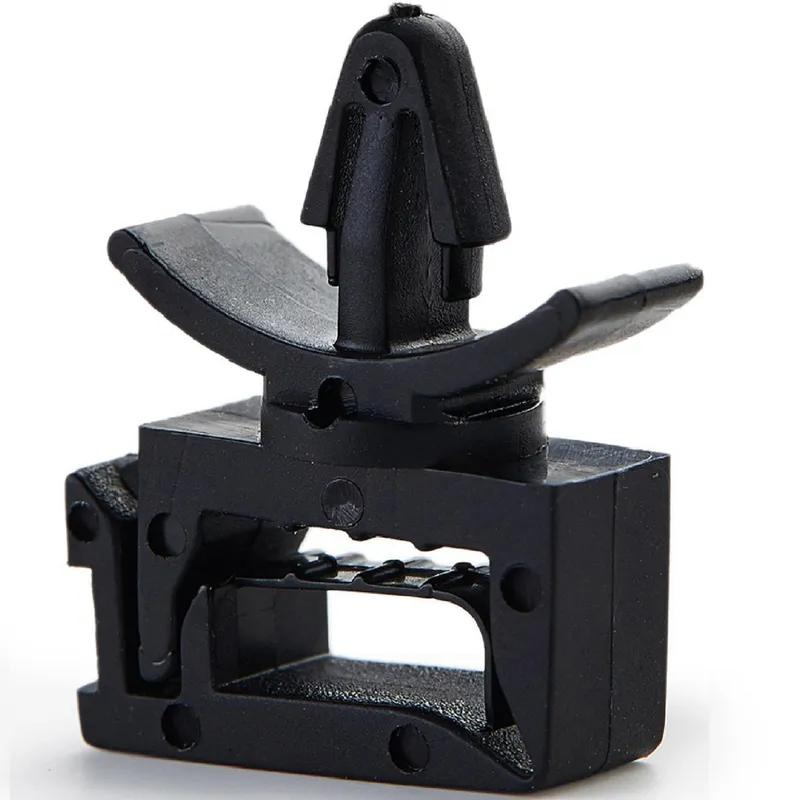

SRFCWSS - Flat Cable Wire Saddle
Wire saddle specifically designed to route and secure flat cables neatly across surfaces.
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Maximum Cable Bundle Diameter | Colour | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Height Under Flange | Material | Overall Diameter | Minimum Cable Bundle Diameter | Overall Width | Spacer Length | Minimum Panel Thickness | Overall Height | Cable Width | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCWSS-1-01BK | 2.5mm | Black | 5.0mm | 1.6mm | 4.0mm | 2.5mm | Nylon 6/6 | 6.8mm | 1.85mm | 14.0mm | 4.8mm | 0.8mm | 31.0mm | 8.0mm | 21.2mm | 14.0mm | Flat Cable | |
FCWSS-2-01BK | 2.5mm | Black | 5.0mm | 1.6mm | 4.0mm | 2.5mm | Nylon 6/6 | 6.8mm | 1.85mm | 14.0mm | 10.0mm | 0.8mm | 36.2mm | 8.0mm | 21.2mm | 14.0mm | Flat Cable |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FCWSS-1-01BK
Maximum Cable Bundle Diameter
2.5mm
Colour
Black
Anchor Length
5.0mm
Maximum Panel Thickness
1.6mm
FCWSS-2-01BK
Maximum Cable Bundle Diameter
2.5mm
Colour
Black
Anchor Length
5.0mm
Maximum Panel Thickness
1.6mm
