SRFCRC - Flat Cable Clamps

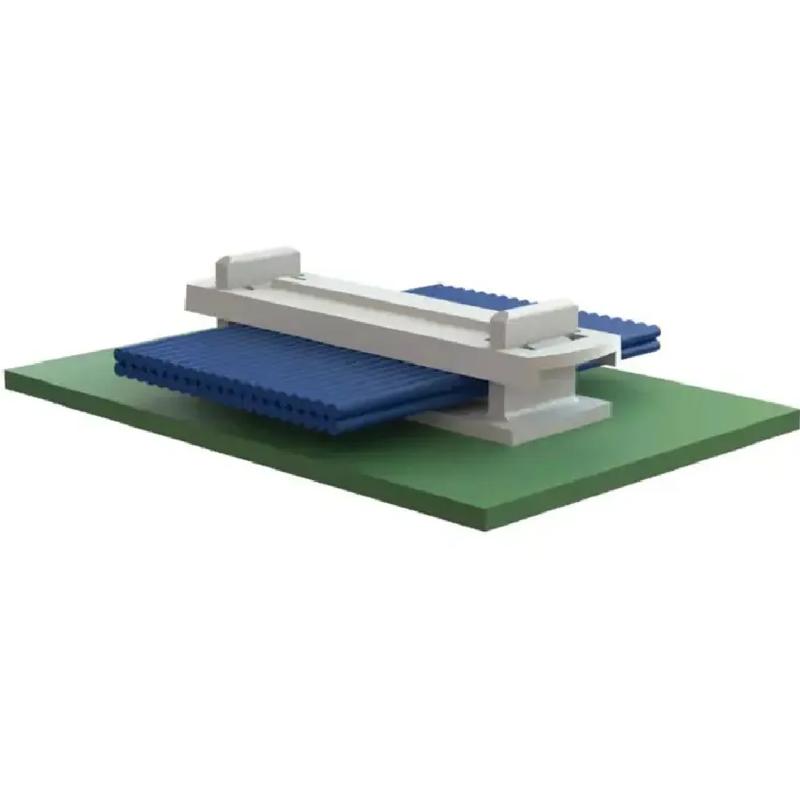

Clamp designed to hold flat cables tightly against surfaces, preventing movement and abrasion.
Showing 1-10 of 14
Per page:1-10 of 14
Item Code | Colour | Inside Height | Maximum Hole Diameter | Material | Overall Length | Inside Length | Flange Thickness | Height Under Flange | Overall Height | Type | Material Flammability Standard | Minimum Hole Diameter | Overall Width | Distance Between Fixing Holes | Adhesive Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCRC-13B-6 | Natural | 19.1mm | 5.5mm | Nylon 6/6 | 51.7mm | 41.2mm | 1.9mm | 19.1mm | 21.0mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 41.2mm | - | |
FCRC-13B-4 | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 51.7mm | 41.2mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 41.2mm | - | |
FCRC-21B-4 | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 75.7mm | 64.8mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 64.8mm | - | |
FCRC-19B-4A-RT | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 69.1mm | 58.7mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 58.7mm | Acrylic | |
FCRC-21B-4A-RT | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 75.7mm | 64.8mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 64.8mm | Acrylic | |
FCRC-13B-4A-RT | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 51.7mm | 41.2mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 41.2mm | Acrylic | |
FCRC-21B-6A-RT | Natural | 19.1mm | 5.5mm | Nylon 6/6 | 75.7mm | 64.8mm | 1.9mm | 19.1mm | 21.0mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 64.8mm | Acrylic | |
FCRC-26B-4 | Natural | 12.7mm | 5.5mm | Nylon 6/6 | 93.0mm | 82.3mm | 1.9mm | 12.7mm | 14.6mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 82.3mm | - | |
FCRC-21B-6 | Natural | 19.1mm | 5.5mm | Nylon 6/6 | 75.7mm | 64.8mm | 1.9mm | 19.1mm | 21.0mm | Routing | UL94 V-2 | 5.5mm | 15.9mm | 64.8mm | - |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
FCRC-13B-6
Colour
Natural
Inside Height
19.1mm
Maximum Hole Diameter
5.5mm
Material
Nylon 6/6
FCRC-13B-4
Colour
Natural
Inside Height
12.7mm
Maximum Hole Diameter
5.5mm
Material
Nylon 6/6
FCRC-21B-4
Colour
Natural
Inside Height
12.7mm
Maximum Hole Diameter
5.5mm
Material
Nylon 6/6
FCRC-19B-4A-RT
Colour
Natural
Inside Height
12.7mm
Maximum Hole Diameter
5.5mm
Material
Nylon 6/6
Per page:
1–5 of 15
