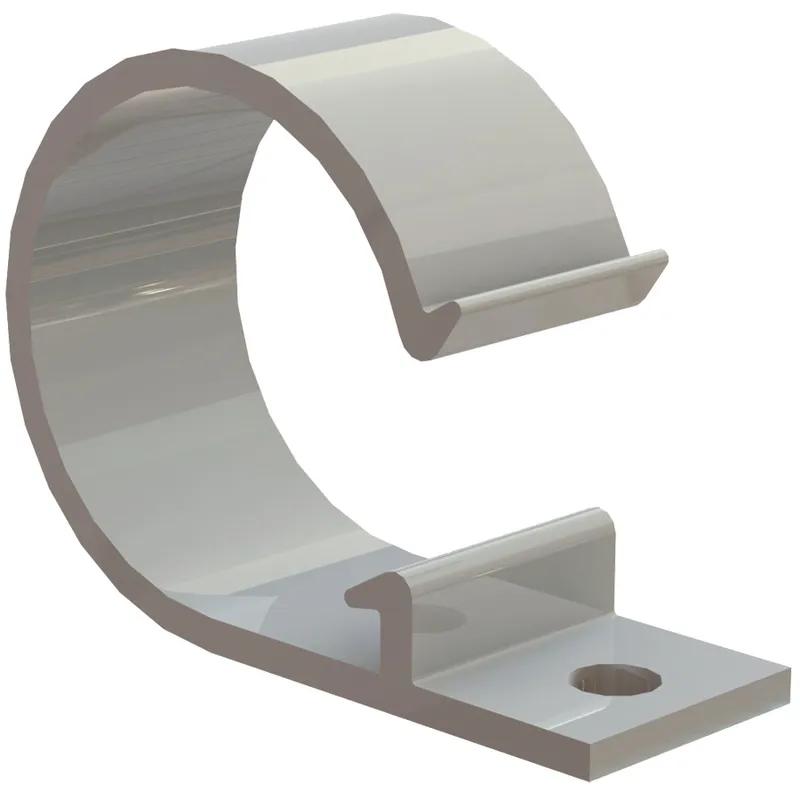

SREXWHC - Wire Harness Clamp
Clamp for bundling and securely routing wire harnesses onto surfaces or within enclosures.
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Colour | Wall Thickness | Overall Width | Overall Length | Mounting Hole Diameter | Cable Diameter | Length to Hole Center | Maximum Operating Temperature | Length to Hole Center | Minimum Operating Temperature | Material | Overall Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EXWHC2-500-01 | UL94 V-2 | Natural | 1.6mm | 10.0mm | 30.0mm | 4.0mm | 12.7mm | 4.7mm | 85°C | 5.0mm | -40°C | Nylon 6/6 | 1.6mm | |
EXWHC2-250-01 | UL94 V-2 | Natural | 1.0mm | 10.0mm | 21.0mm | 4.0mm | 6.35mm | 6.0mm | 85°C | 5.0mm | -40°C | Nylon 6/6 | 1.0mm | |
EXWHC2-750-01 | UL94 V-2 | Natural | 1.8mm | 12.7mm | 35.0mm | 4.0mm | 18.0mm | 4.7mm | 85°C | 6.35mm | -40°C | Nylon 6/6 | 1.8mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
EXWHC2-500-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.6mm
Overall Width
10.0mm
EXWHC2-250-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.0mm
Overall Width
10.0mm
EXWHC2-750-01
Material Flammability Standard
UL94 V-2
Colour
Natural
Wall Thickness
1.8mm
Overall Width
12.7mm
