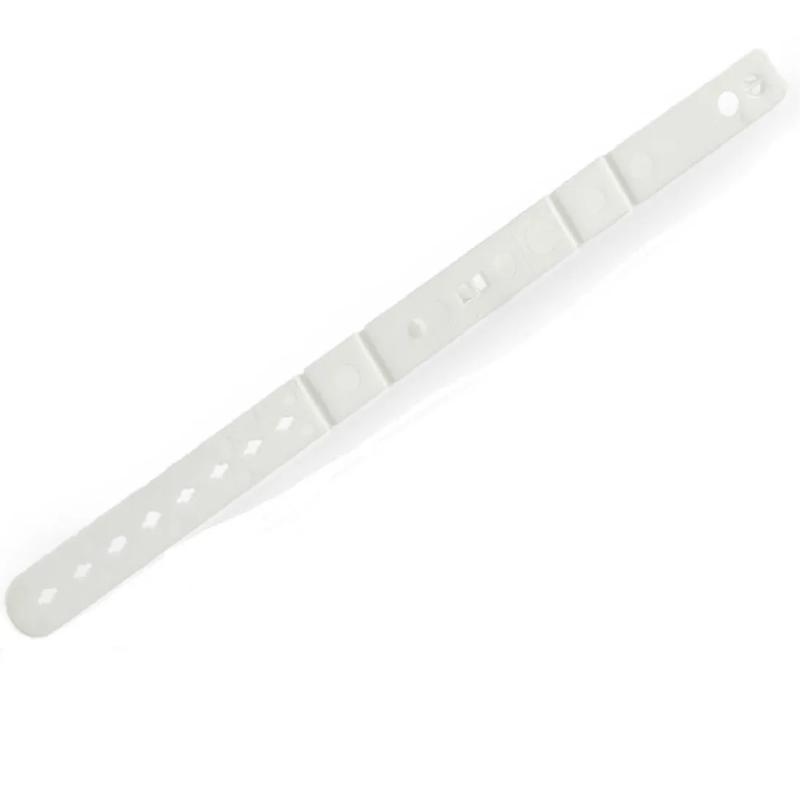

SRCMS - Cable Management Strap
Reusable strap ideal for bundling and organizing cables, hoses, or tubing for clean installations.
Showing 1-1 of 1
Per page:1-1 of 1

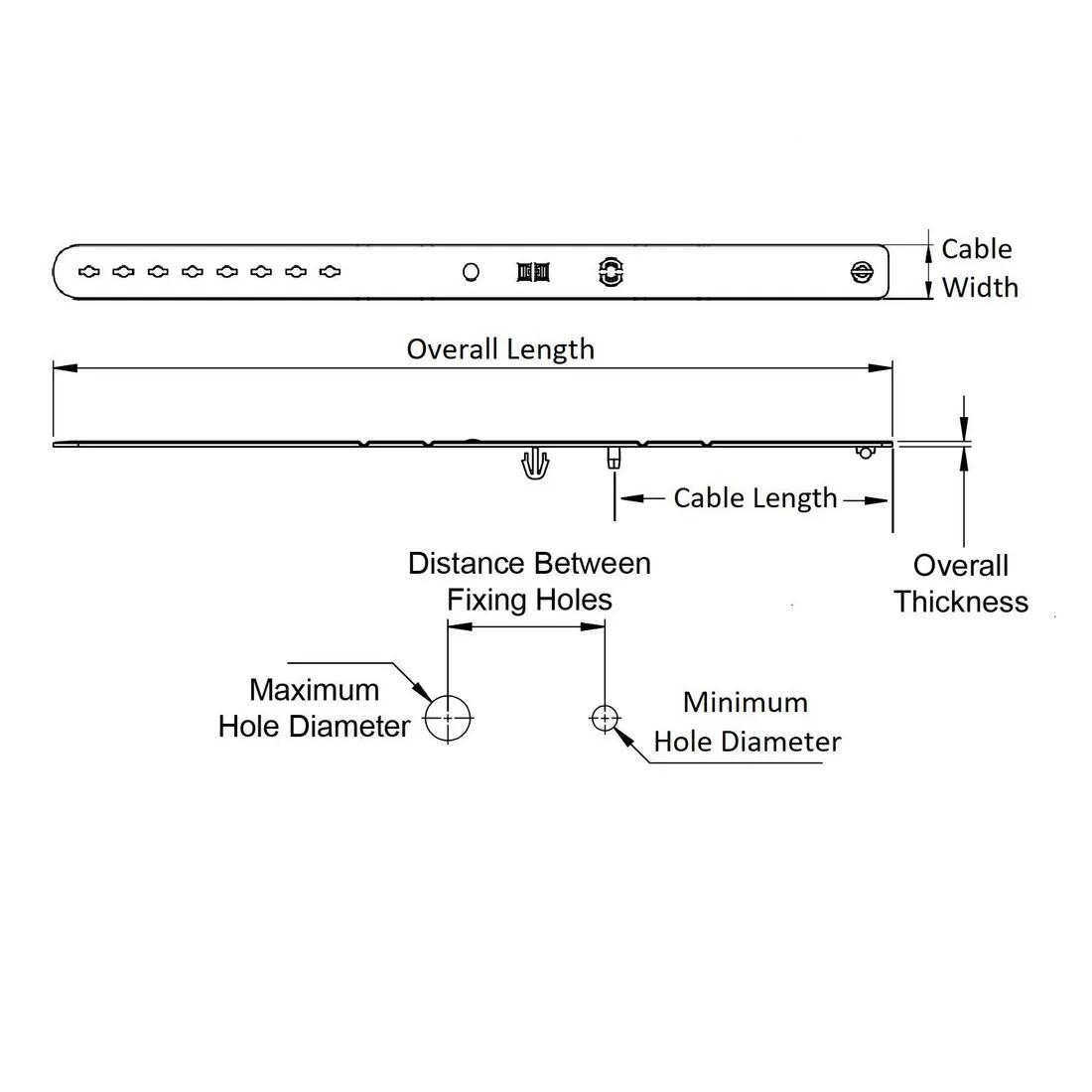

Item Code | Colour | Maximum Hole Diameter | Distance Between Fixing Holes | Overall Length | Mounting Hole Diameter | Cable Width | Maximum Operating Temperature | Type | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Overall Thickness | Maximum Panel Thickness | Cable Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CMS-1 | Natural | 6.5mm | 22.0mm | 235.0mm | 3.5mm | 30.0mm | 110°C | Strap | UL94 V-0 | 6.0mm | -40°C | Nylon 6/6 | 1.5mm | 3.2mm | 70.0mm | 3.0mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
CMS-1
Colour
Natural
Maximum Hole Diameter
6.5mm
Distance Between Fixing Holes
22.0mm
Overall Length
235.0mm
