SRCCT - Chasis Cable Tie
Cable Tie is sold with Base.
Showing 1-5 of 5
Per page:1-5 of 5

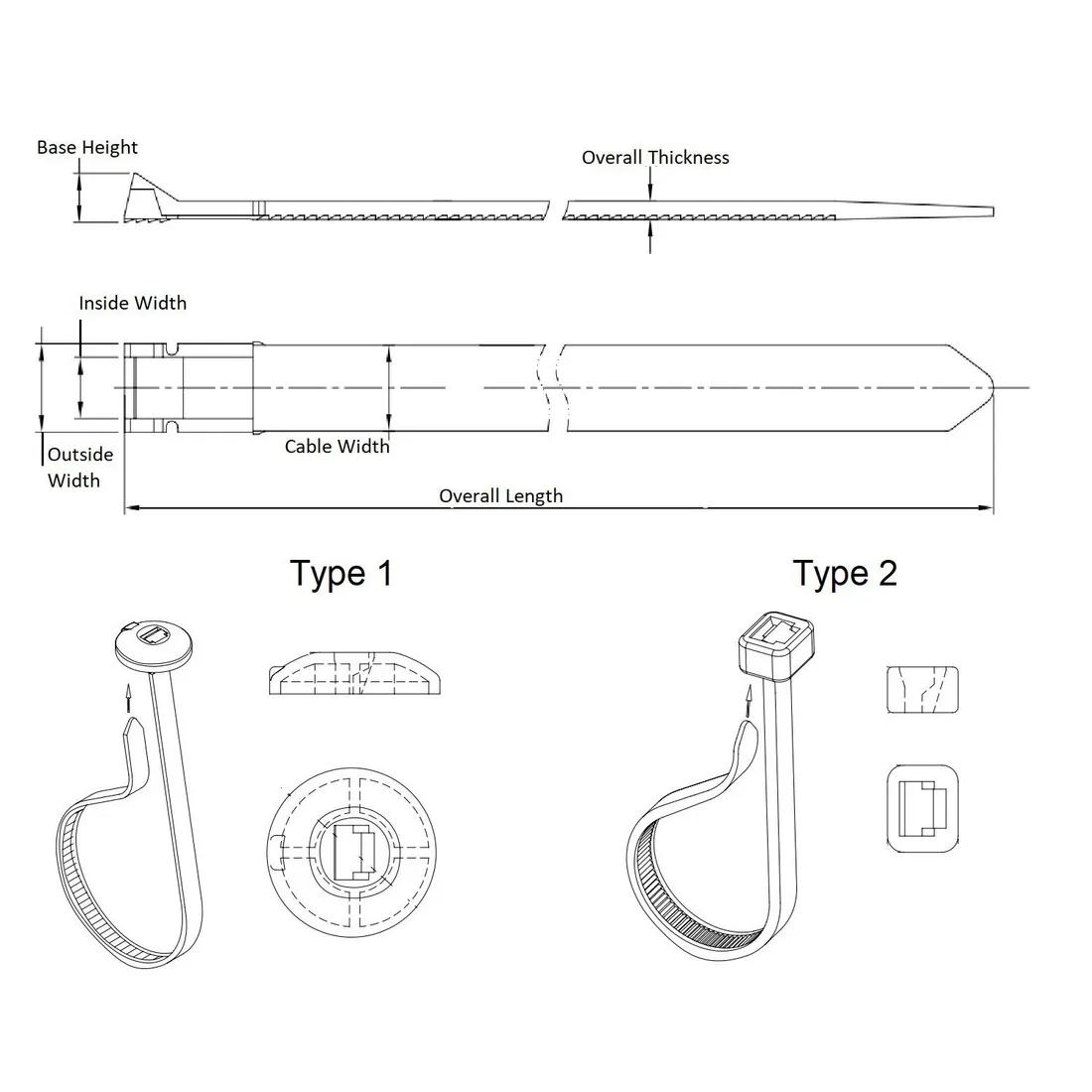

Item Code | Maximum Cable Bundle Diameter | Colour | Clip Length | Overall Width | Overall Length | Overall Thickness | Base Height | Cable Diameter | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Cable Width | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCT-SH-380 | 105.0mm | Natural | 14.6mm | 7.8mm | 380.0mm | 1.6mm | 4.5mm | 105.0mm | 85°C | 5.4mm | UL94 V-2 | -40°C | Nylon 6/6 | 54.4kg | 7.6mm | 6.2mm | 11.6mm | 2 | |
CCT-RH-250 | 70.0mm | Natural | - | 7.8mm | 250.0mm | 1.6mm | 4.5mm | 70.0mm | 85°C | 5.4mm | UL94 V-2 | -40°C | Nylon 6/6 | 65.0kg | 7.6mm | 6.0mm | - | 1 | |
CCT-RH-175 | 45.0mm | Natural | - | 7.8mm | 175.0mm | 1.6mm | 4.5mm | 45.0mm | 85°C | 5.4mm | UL94 V-2 | -40°C | Nylon 6/6 | 65.0kg | 7.6mm | 6.0mm | - | 1 | |
CCT-RH-365 | 100.0mm | Natural | - | 7.8mm | 365.0mm | 1.6mm | 4.5mm | 100.0mm | 85°C | 5.4mm | UL94 V-2 | -40°C | Nylon 6/6 | 65.0kg | 7.6mm | 6.0mm | - | 1 | |
CCT-SH-203 | 50.0mm | Natural | 14.6mm | 7.8mm | 203.0mm | 1.6mm | 4.5mm | 50.0mm | 85°C | 5.4mm | UL94 V-2 | -40°C | Nylon 6/6 | 54.4kg | 7.6mm | 6.2mm | 11.6mm | 2 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
CCT-SH-380
Maximum Cable Bundle Diameter
105.0mm
Colour
Natural
Clip Length
14.6mm
Overall Width
7.8mm
CCT-RH-250
Maximum Cable Bundle Diameter
70.0mm
Colour
Natural
Overall Width
7.8mm
Overall Length
250.0mm
CCT-RH-175
Maximum Cable Bundle Diameter
45.0mm
Colour
Natural
Overall Width
7.8mm
Overall Length
175.0mm
CCT-RH-365
Maximum Cable Bundle Diameter
100.0mm
Colour
Natural
Overall Width
7.8mm
Overall Length
365.0mm
Per page:
1–5 of 6
