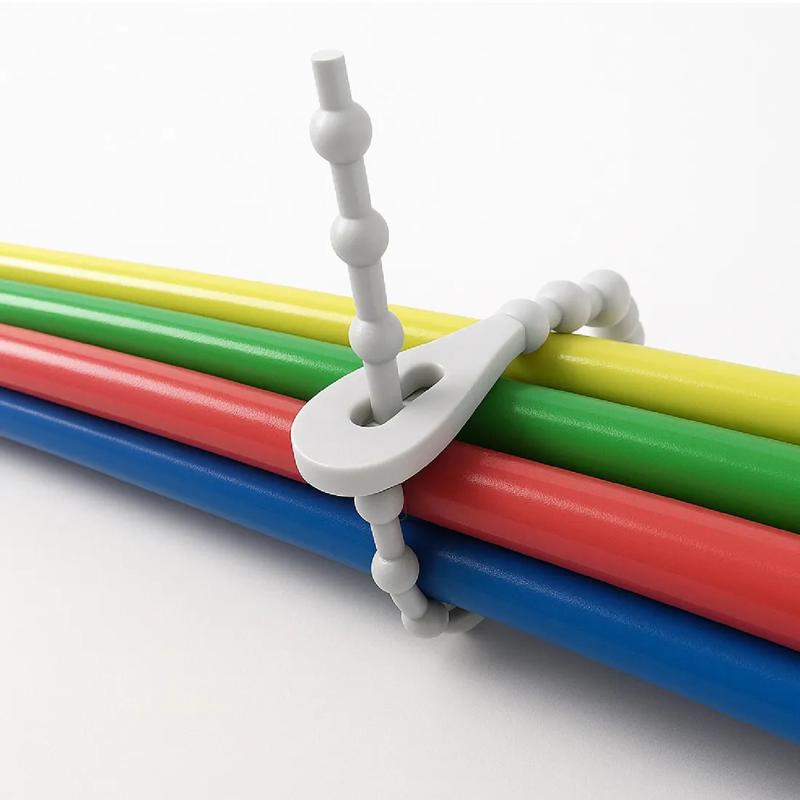

SRBT - Beaded Tie
Design allows ties to be easily applied and released. Tie design prevents slipping.
Showing 1-10 of 28
Per page:1-10 of 28
Item Code | Maximum Cable Bundle Diameter | Colour | Material | Overall Width | Overall Length | Tag Length | Cable Diameter | Gap Width | Type | Bead Type | Overall Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
BT-10-10-RD | 85.7mm | Red | PP | 9.5mm | 273.1mm | 22.2mm | 85.7mm | 6.4mm | 2 | 3.2mm | 2.4mm | |
BT-6-01-NT | 44.5mm | Natural | PP | 5.2mm | 152.4mm | 11.5mm | 44.5mm | 3.2mm | 1 | 2.4mm | 1.5mm | |
BT-12-10-YL | 92.1mm | Yellow | PP | 9.5mm | 323.9mm | 22.2mm | 92.1mm | 6.4mm | 2 | 3.2mm | 2.4mm | |
BT-6-10-YL | 44.5mm | Yellow | PP | 5.2mm | 152.4mm | 11.5mm | 44.5mm | 3.2mm | 1 | 2.4mm | 1.5mm | |
BT-2-10-YL | 14.3mm | Yellow | PP | 5.2mm | 63.5mm | 11.5mm | 14.3mm | 3.2mm | 1 | 2.4mm | 1.5mm | |
BT-10-10-YL | 85.7mm | Yellow | PP | 9.5mm | 273.1mm | 22.2mm | 85.7mm | 6.4mm | 2 | 3.2mm | 2.4mm | |
BT-10-01-NT | 85.7mm | Natural | PP | 9.5mm | 273.1mm | 22.2mm | 85.7mm | 3.2mm | 2 | 2.4mm | 1.5mm | |
BT-2-01-NT | 14.3mm | Natural | PP | 5.2mm | 63.5mm | 11.5mm | 14.3mm | 3.2mm | 1 | 2.4mm | 1.5mm | |
BT-12-01-NT | 92.1mm | Natural | PP | 9.5mm | 323.9mm | 22.2mm | 92.1mm | 6.4mm | 2 | 3.2mm | 2.4mm |
Per page:
1-10 of 28
1–5 of 28 variants
Per page:
BT-10-10-RD
Maximum Cable Bundle Diameter
85.7mm
Colour
Red
Material
PP
Overall Width
9.5mm
BT-6-01-NT
Maximum Cable Bundle Diameter
44.5mm
Colour
Natural
Material
PP
Overall Width
5.2mm
BT-12-10-YL
Maximum Cable Bundle Diameter
92.1mm
Colour
Yellow
Material
PP
Overall Width
9.5mm
BT-6-10-YL
Maximum Cable Bundle Diameter
44.5mm
Colour
Yellow
Material
PP
Overall Width
5.2mm
Per page:
1–5 of 29
