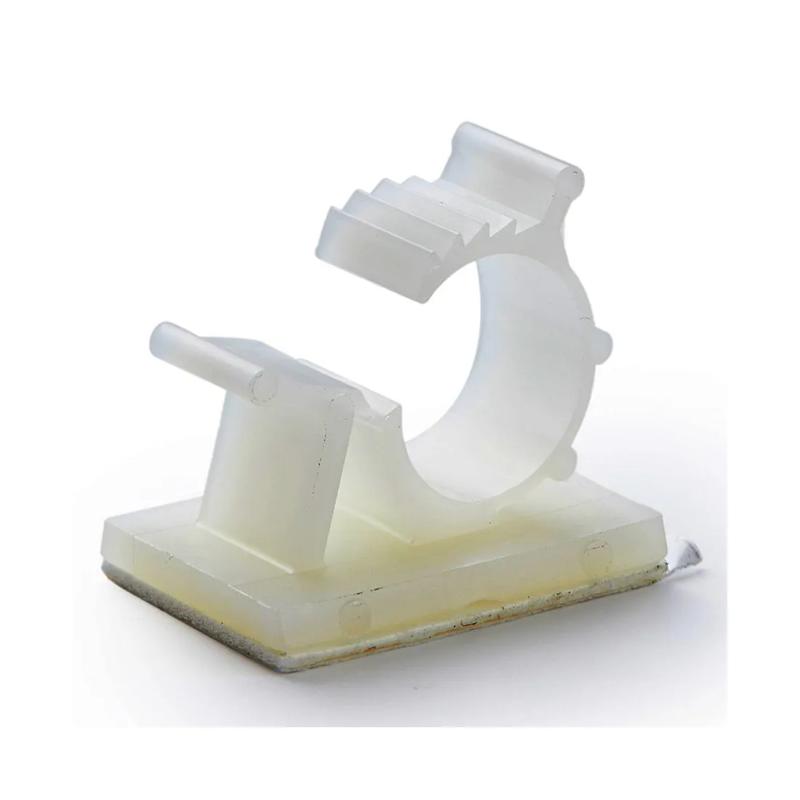

SRAKKL - Adjustable Kwik Klip
Adjustable clip allowing quick and flexible bundling of cables or tubing without tools.
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Minimum Cable Bundle Diameter | Base Width | Adhesive Material | Base Length | Overall Height | Maximum Operating Temperature | Adjustability | Minimum Operating Temperature | Material | Clip Width | Type | Overall Length | Overall Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AKKL-3140A-19 | UL94 V-0 | 10.3mm | Natural | 7.9mm | 19.1mm | High Bond Rubber | 25.4mm | 22.0mm | 110°C | Adjustable | -40°C | Nylon 6/6 | 10.2mm | Kwik | - | - | |
AKKL-3140A-RT | UL94 V-2 | 10.3mm | Natural | 7.9mm | 19.1mm | Acrylic | 25.4mm | 22.0mm | 85°C | Adjustable | -40°C | Nylon 6/6 | 10.2mm | Kwik | - | - | |
AKKL-5775A4-19 | UL94 V-0 | 19.1mm | Natural | 14.7mm | 19.1mm | Acrylic | 38.1mm | 31.8mm | 110°C | Adjustable | -40°C | Nylon 6/6 | 12.7mm | Kwik Klip | 38.1mm | 19.1mm | |
AKKL-4756A4-19 | UL94 V-0 | 14.3mm | Natural | 11.9mm | 19.1mm | Acrylic | 31.8mm | 27.7mm | 110°C | Adjustable | -40°C | Nylon 6/6 | 10.2mm | Kwik Klip | 31.8mm | 19.1mm | |
AKKL-3140A4-19 | UL94 V-0 | 10.3mm | Natural | 7.9mm | 19.1mm | Acrylic | 25.2mm | 22.2mm | 110°C | Adjustable | -40°C | Nylon 6/6 | 10.2mm | Kwik Klip | 25.4mm | 19.1mm | |
AKKL-4756A4-RT | UL94 V-2 | 14.3mm | Natural | 11.9mm | 19.1mm | Acrylic | 31.8mm | 27.7mm | 85°C | Adjustable | -40°C | Nylon 6/6 | 10.2mm | Kwik Klip | 31.8mm | 19.1mm | |
AKKL-5775A4-RT | UL94 V-2 | 19.1mm | Natural | 14.7mm | 19.1mm | Acrylic | 38.1mm | 31.8mm | 85°C | Adjustable | -40°C | Nylon 6/6 | 12.7mm | Kwik Klip | 38.1mm | 19.1mm | |
AKKL-2140A-RT | UL94 V-2 | 6.5mm | Natural | 5.5mm | 16.5mm | Acrylic | 21.6mm | 18.0mm | 85°C | Adjustable | -40°C | Nylon 6/6 | 10.0mm | Ratcheting, Adjustable Kwik Klip | 21.6mm | 16.5mm | |
AKKL-2140A-19 | UL94 V-0 | 6.5mm | Natural | 5.5mm | 16.5mm | Acrylic | 21.6mm | 18.0mm | 110°C | Adjustable | -40°C | Nylon 6/6 | 10.0mm | Ratcheting, Adjustable Kwik Klip | 21.6mm | 16.5mm |
AKKL-3140A-19
Material Flammability Standard
UL94 V-0
Maximum Cable Bundle Diameter
10.3mm
Colour
Natural
Minimum Cable Bundle Diameter
7.9mm
AKKL-3140A-RT
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
10.3mm
Colour
Natural
Minimum Cable Bundle Diameter
7.9mm
AKKL-5775A4-19
Material Flammability Standard
UL94 V-0
Maximum Cable Bundle Diameter
19.1mm
Colour
Natural
Overall Length
38.1mm
AKKL-4756A4-19
Material Flammability Standard
UL94 V-0
Maximum Cable Bundle Diameter
14.3mm
Colour
Natural
Overall Length
31.8mm
