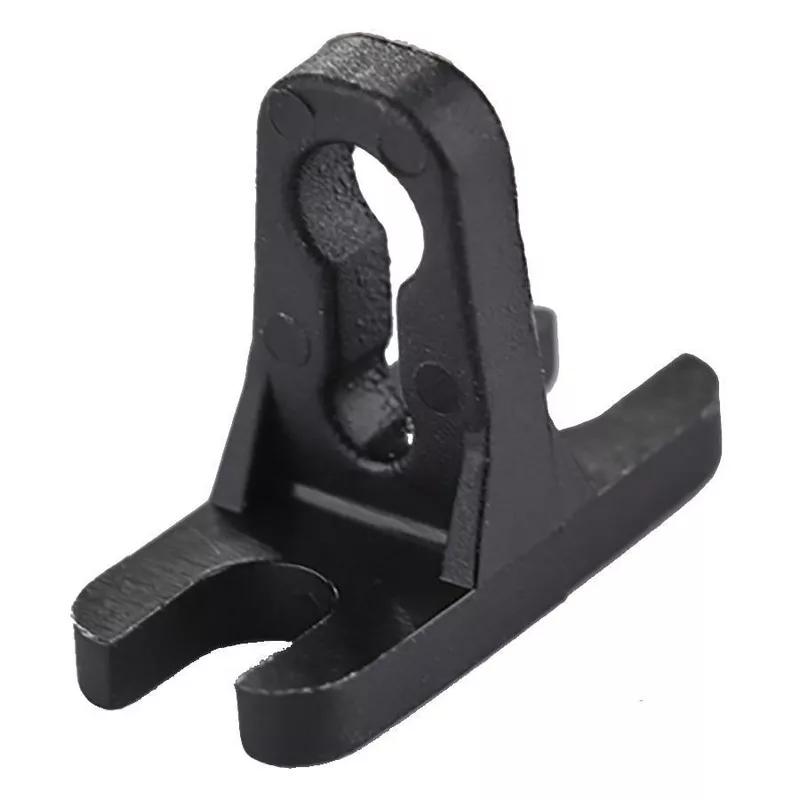

SR6274 - Bead Lanyard Hank Tie Base
Limits travel of case lid or cabinet door. Low cost alternative to conventional case or cabinet stay. Fully adjustable travel length. Simply mounted by push rivets or screw. Lightweight. Hank tie is not included.
Showing 1-1 of 1
Per page:1-1 of 1

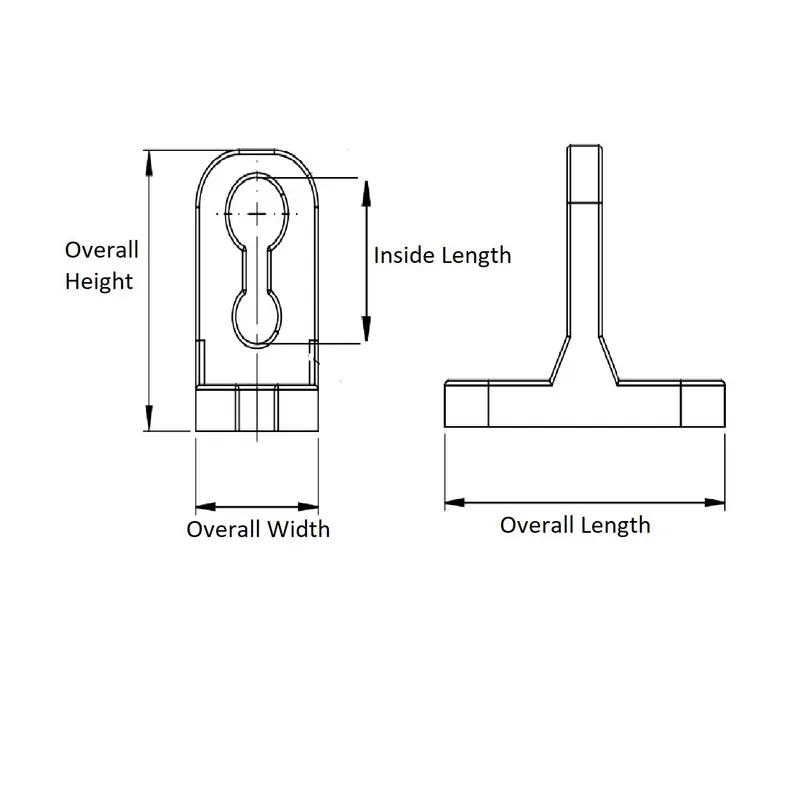

Item Code | Material Flammability Standard | Colour | Material | Overall Length | Mounting Hole Diameter | Inside Length | Overall Height | For Use With | Overall Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
551852 | UL94 V-2 | Natural | Nylon 6/6 | 16.0mm | 3.2mm | 10.0mm | 12.3mm | BT-8-10 | 7.0mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
551852
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Overall Length
16.0mm
