SR6261 - Metal Edge Cable Tie Mounting Clips
Push on plastic /metal sheet edge anchors for cable ties. Retention of 200N based on a standard 2mm panel size. Permanent fixing for all sheet material applications. In top or side mounting options and different bundle orientations. Available as clip or with cable tie already installed. Standard Tie :- 200 x 4.8mm 200N Retention Force. Max bundle Dia 45mm.

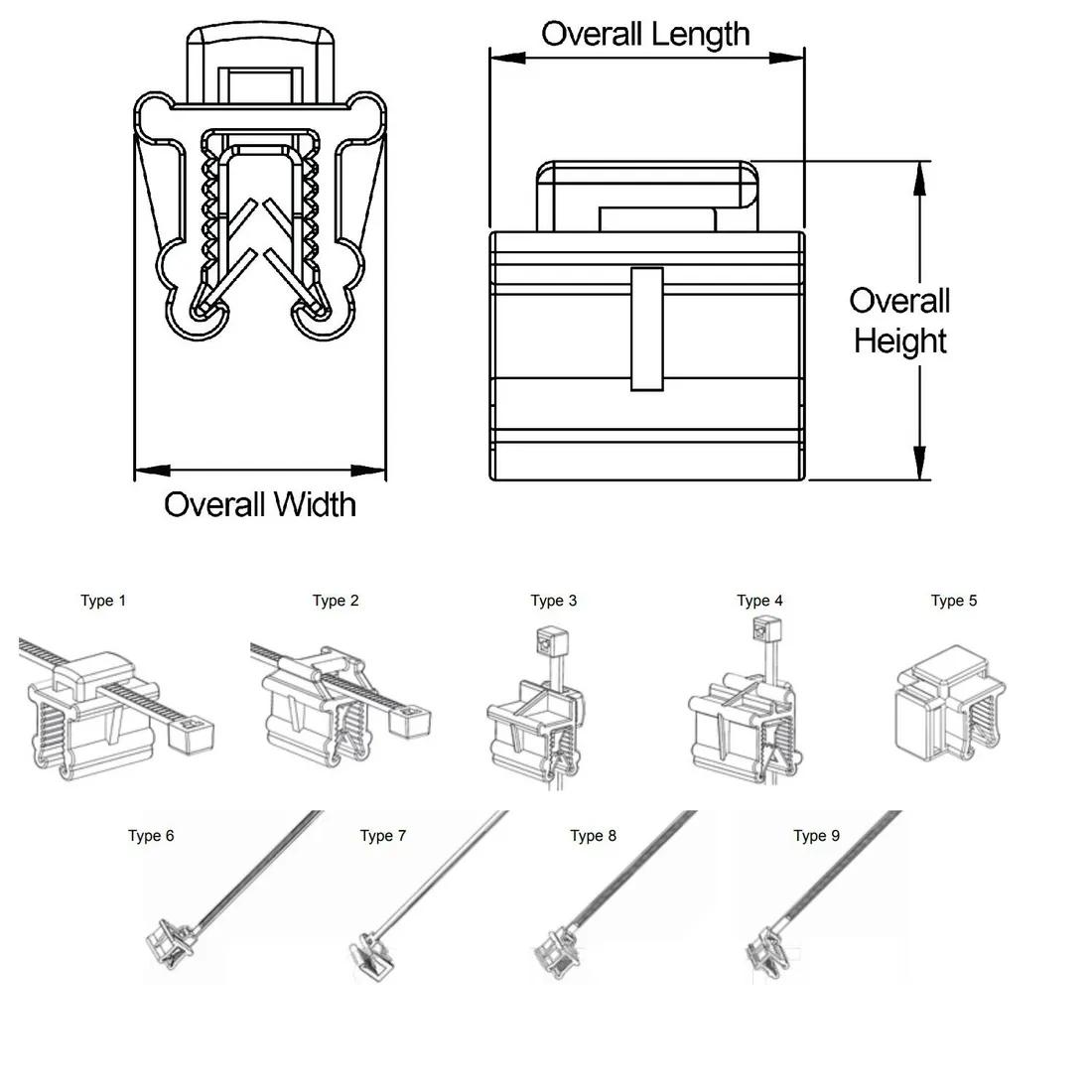

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Width | Overall Length | Maximum Panel Thickness | Cable Diameter | Overall Height | Type | Cover Material | Material | Minimum Panel Thickness | Cable Size | Tooth Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
550243 | UL94 V-2 | 45.0mm | Black | 12.0mm | 15.0mm | 3.0mm | 45.0mm | 15.8mm | 1 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | - | - | |
550245 | UL94 V-2 | 45.0mm | Black | 12.0mm | 15.0mm | 3.0mm | 45.0mm | 15.6mm | 2 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | - | - | |
550247 | UL94 V-2 | 45.0mm | Black | 13.9mm | 15.0mm | 3.0mm | 45.0mm | 15.6mm | 3 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | - | - | |
550252 | UL94 V-2 | 45.0mm | Black | 12.0mm | 15.0mm | 3.0mm | 45.0mm | 15.8mm | 1 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | 200 x 4.8 x 1.2 | - | |
550244 | UL94 V-2 | 45.0mm | Black | 13.9mm | 15.0mm | 3.0mm | 45.0mm | 15.6mm | 3 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | - | - | |
550246 | UL94 V-2 | 45.0mm | Black | 15.1mm | 20.0mm | 6.0mm | 45.0mm | 18.8mm | 2 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 3.0mm | - | - | |
550254 | UL94 V-2 | 45.0mm | Black | 12.0mm | 15.0mm | 3.0mm | 45.0mm | 15.6mm | 2 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | 200 x 4.8 x 1.2 | - | |
550279 | UL94 V-2 | 45.0mm | Black | 15.0mm | 20.0mm | 3.0mm | 45.0mm | 171.7mm | 8 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | 140 x 3.6 x 1.2 | 8 | |
550277 | UL94 V-2 | 45.0mm | Black | 15.0mm | 20.0mm | 3.0mm | 45.0mm | 160.0mm | 6 | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.7mm | 140 x 3.6 x 1.2 | - |
550243
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
45.0mm
Colour
Black
Overall Width
12.0mm
550245
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
45.0mm
Colour
Black
Overall Width
12.0mm
550247
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
45.0mm
Colour
Black
Overall Width
13.9mm
550252
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
45.0mm
Overall Width
12.0mm
Overall Length
15.0mm
