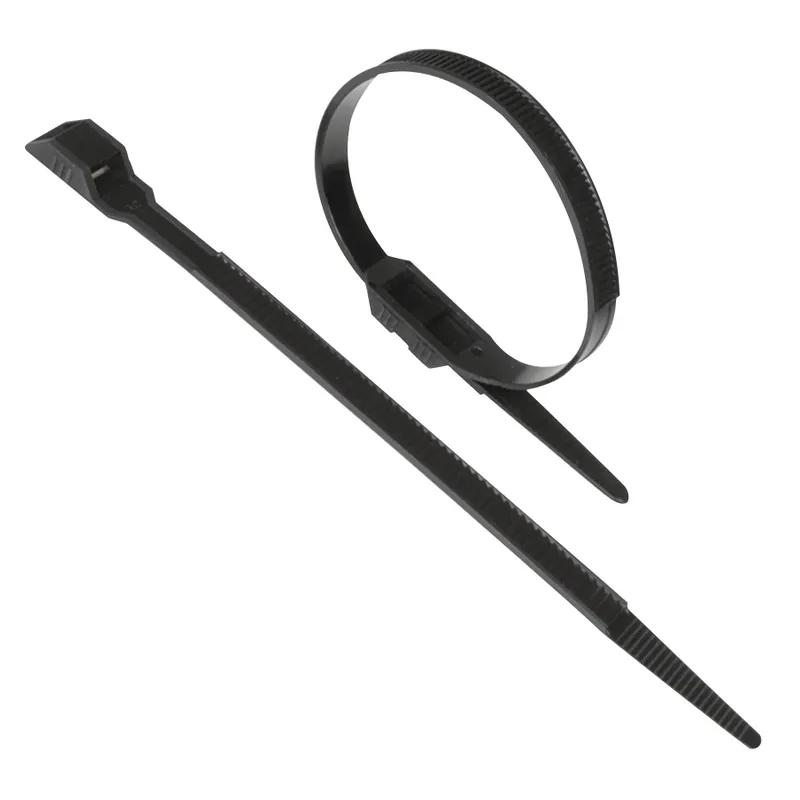

SR6105 - Double-Locking Cable Ties
Double-locking head design creates more secure fastening. Tensile strength of cable tie loop greater than that of a standard cable tie.

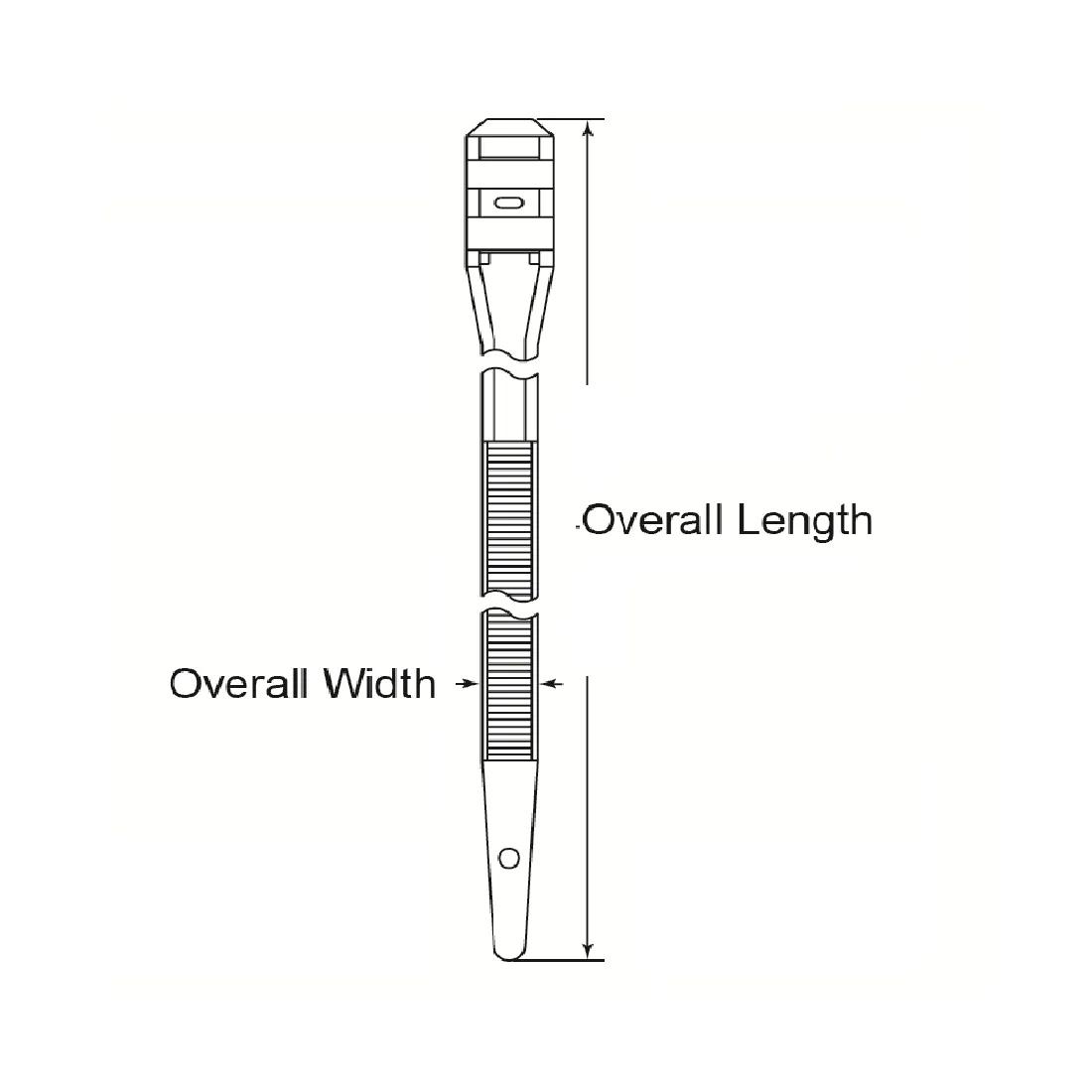

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Width | Overall Length | Cable Diameter | Material | Minimum Loop Tensile Strength | Strap Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
490000 | UL94 V-2 | 30.0mm | Black | 9.0mm | 132.0mm | 30.0mm | Nylon 6/6 | 35.0kg | 9.0mm | |
490002 | UL94 V-2 | 55.0mm | Black | 9.0mm | 235.0mm | 55.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490001 | UL94 V-2 | 45.0mm | Black | 9.0mm | 180.0mm | 45.0mm | Nylon 6/6 | 35.0kg | 9.0mm | |
490006 | UL94 V-2 | 160.0mm | Black | 9.0mm | 510.0mm | 160.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490005 | UL94 V-2 | 100.0mm | Black | 9.0mm | 360.0mm | 100.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490004 | UL94 V-2 | 88.0mm | Black | 9.0mm | 300.0mm | 88.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490003 | UL94 V-2 | 78.0mm | Black | 9.0mm | 265.0mm | 78.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490007 | UL94 V-2 | 180.0mm | Black | 9.0mm | 610.0mm | 180.0mm | Nylon 6/6 | 55.0kg | 9.0mm | |
490008 | UL94 V-2 | 230.0mm | Black | 9.0mm | 760.0mm | 230.0mm | Nylon 6/6 | 55.0kg | 9.0mm |
490000
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
30.0mm
Colour
Black
Overall Width
9.0mm
490002
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
55.0mm
Colour
Black
Overall Width
9.0mm
490001
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
45.0mm
Colour
Black
Overall Width
9.0mm
490006
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
160.0mm
Colour
Black
Overall Width
9.0mm
