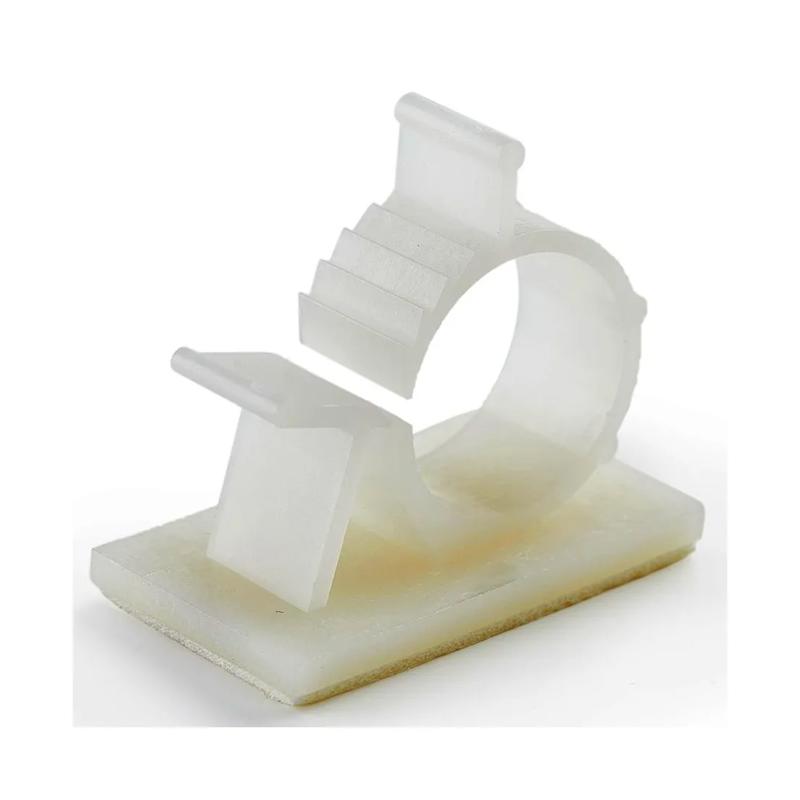

SR1793 - Cable Clips
Clips designed to organize, route, and secure cables along surfaces with minimal installation effort.
Showing 1-2 of 2
Per page:1-2 of 2

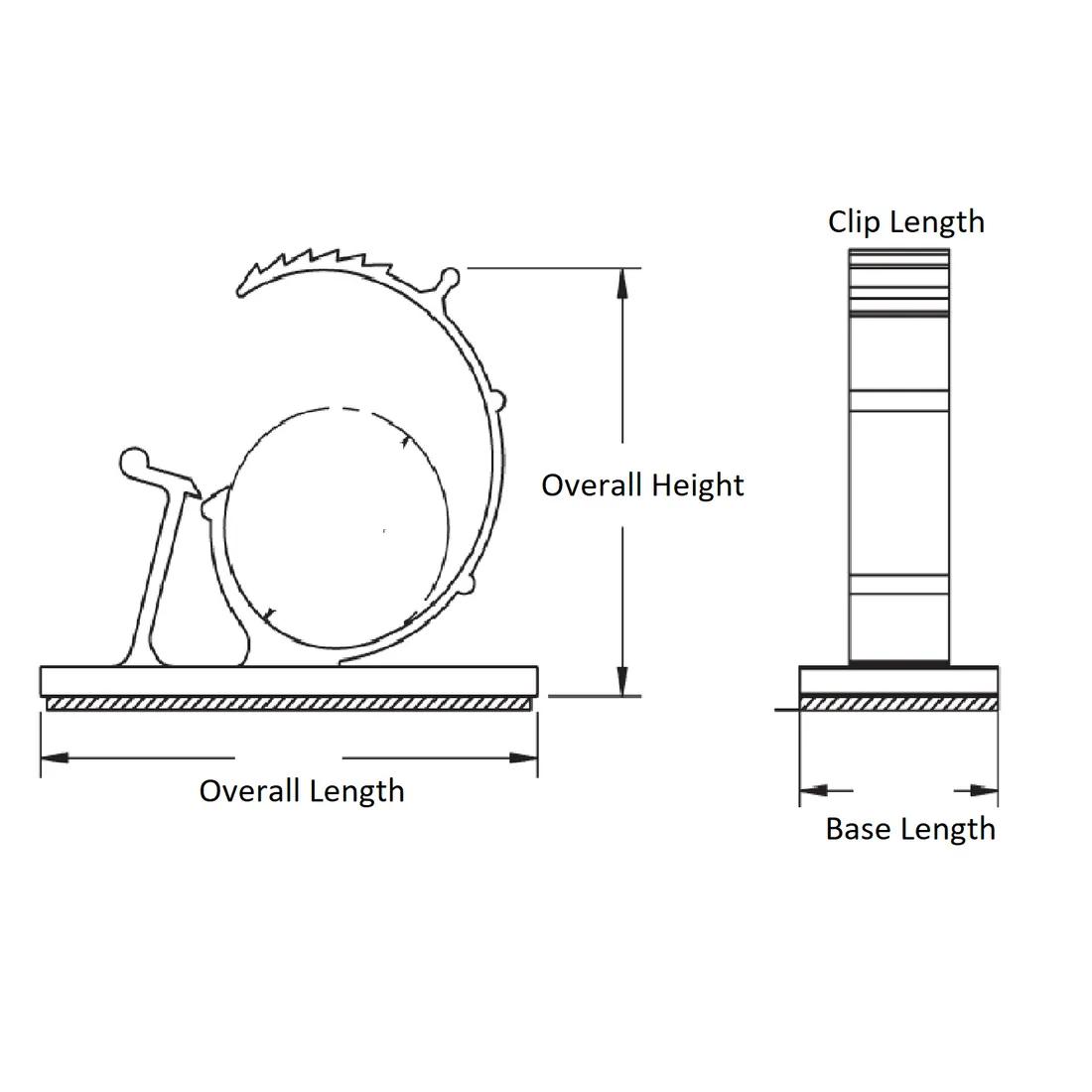

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Clip Length | Material | Overall Length | Base Width | Adhesive Material | Overall Height | Clip Width | Adjustability | Minimum Cable Bundle Diameter | Overall Width | Base Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
32546 | UL94 V-2 | 23.0mm | Natural | 11.3mm | Nylon 6/6 | 41.5mm | 21.5mm | Acrylic | 37.0mm | 11.3mm | Adjustable | 18.5mm | 21.5mm | 21.5mm | |
32545 | UL94 V-2 | 19.1mm | Natural | 12.5mm | Nylon 6/6 | 42.0mm | 25.0mm | Acrylic | 43.0mm | 12.5mm | Adjustable | 14.7mm | 25.0mm | 25.0mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
32546
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
23.0mm
Colour
Natural
Clip Length
11.3mm
32545
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
19.1mm
Colour
Natural
Clip Length
12.5mm
