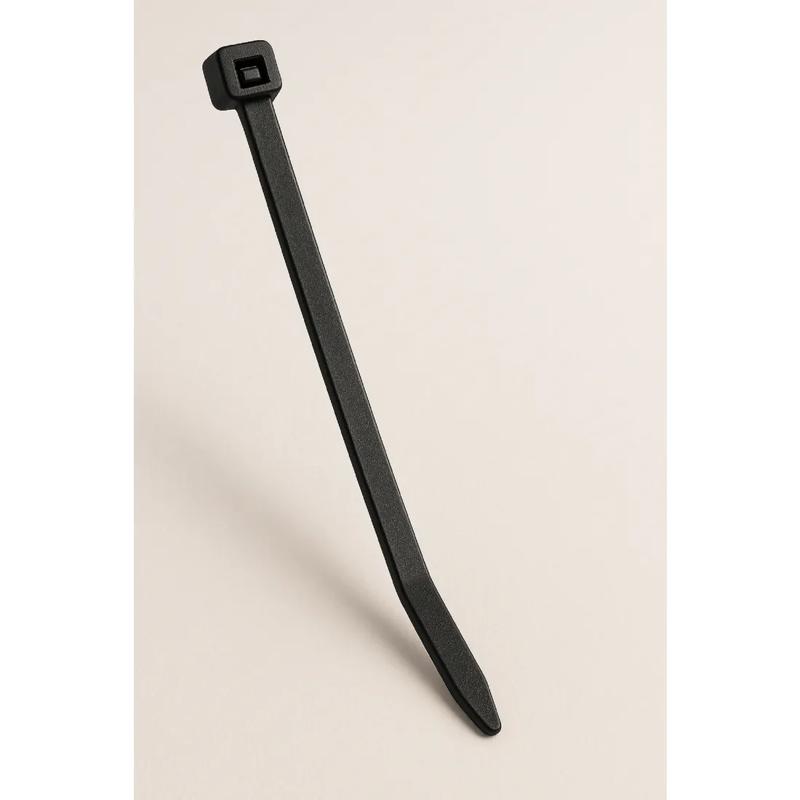

SR1792 - Cable Ties with Stainless Steel Tooth
For durable locking in adverse conditions such as humidity, heat, cold, vibration and shock. The corrosion proof, non magnetic steel tooth firmly anchors inside the cable tie body for a secure lock. Operating temperature: -40C to 85C. Flammability rating UL 94 V2.
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Colour | Overall Width | Overall Length | Tooth Material | Cable Diameter | Maximum Operating Temperature | Strap Material | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495186 | UL94 V-2 | 24.0mm | Black | 2.5mm | 100.0mm | Stainless Steel | 24.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 8.0kg | |
495194 | UL94 V-2 | 80.0mm | Black | 3.6mm | 280.0mm | Stainless Steel | 80.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 40.0kg | |
495200 | UL94 V-2 | 102.0mm | Black | 4.8mm | 360.0mm | Stainless Steel | 102.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 50.0kg | |
495196 | UL94 V-2 | 53.0mm | Black | 4.8mm | 200.0mm | Stainless Steel | 53.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 50.0kg | |
495190 | UL94 V-2 | 35.0mm | Black | 3.6mm | 150.0mm | Stainless Steel | 35.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 40.0kg | |
495192 | UL94 V-2 | 53.0mm | Black | 3.6mm | 200.0mm | Stainless Steel | 53.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 40.0kg | |
495198 | UL94 V-2 | 78.0mm | Black | 4.8mm | 290.0mm | Stainless Steel | 78.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 50.0kg | |
495188 | UL94 V-2 | 53.0mm | Black | 2.5mm | 200.0mm | Stainless Steel | 53.0mm | 85°C | Stainless Steel | -40°C | Nylon 6/6 | 8.0kg |
495186
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
24.0mm
Colour
Black
Overall Width
2.5mm
495194
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
80.0mm
Colour
Black
Overall Width
3.6mm
495200
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
102.0mm
Colour
Black
Overall Width
4.8mm
495196
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
53.0mm
Colour
Black
Overall Width
4.8mm
